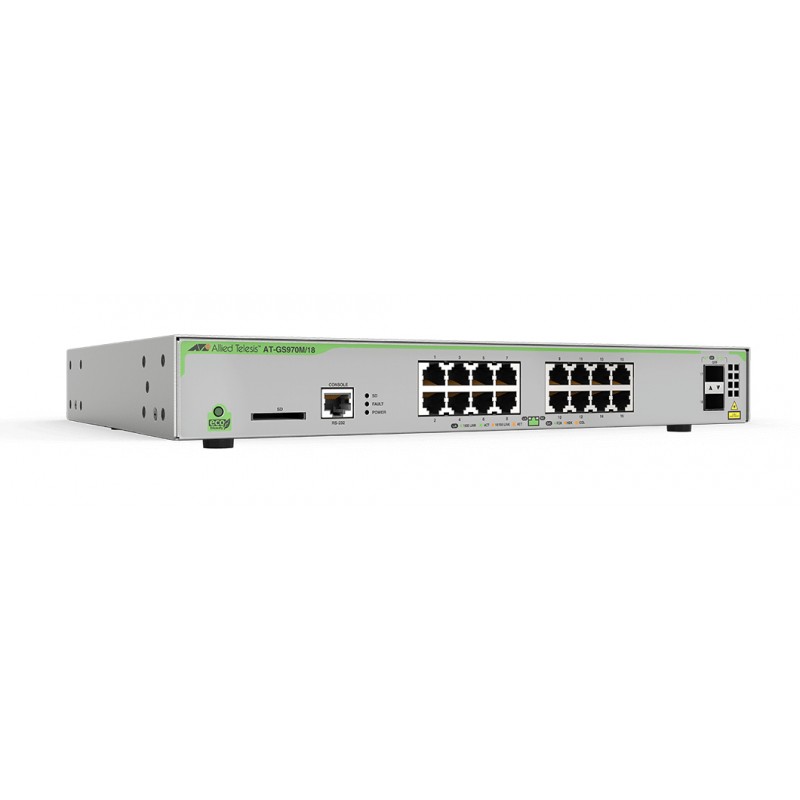

Allied Telesis AT-GS970M/18-30 Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey network switch
  • Allied Telesis AT-GS970M/18-30 Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey network switch
  • Allied Telesis AT-GS970M/18-30 Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey network switch
The Allied Telesis CentreCOM® GS970M/18 Layer 3 managed switch features sixteen 10/100/1000T Gigabit Ethernet ports and two 100/1000X SFP ports for secure connectivity at the network edge.



- AlliedWare Plus Enterprise-class operating system

- Eco-friendly for reduced running costs

- Network Access Control (NAC) for edge security

- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks

- Static Routing and RIP support Layer 3 environments
10G support No
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Certification FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A
Colour of product Grey
Combo SFP ports quantity 2
Compatible memory cards SD,SDHC
Console port RS-232
Copper ethernet cabling technology 10BASE-T,100BASE-T,1000BASE-T
Country of origin China
Depth 231 mm
DHCP client Y
Fiber ethernet cabling technology 100Base-X,1000Base-X
Fiber optic connector SFP
Flash memory 64 MB
Flow control support Y
Form factor 1U
Forwarding rate 26.8 Mpps
Full duplex Y
Gigabit Ethernet (copper) ports quantity 16
Heat dissipation 61 BTU/h
Height 44 mm
IGMP snooping Y
Input current 2.4 A
Internal memory 512 MB
Jumbo frames support Y
Latency (1 Gbps) 3.4 µs
Latency (10-100 Mbps) 7.9 µs
LED indicators Y
Link aggregation Y
MAC address filtering Y
MAC address table 16000 entries
Memory type DDR SDRAM
MIB support SNMP MIB
Multicast support Y
Networking standards IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Noise level 29 dB
Non-operating altitude 0 - 4000 m
Number of VLANs 4094
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 5 - 90 %
Operating temperature (T-T) 0 - 50 °C
Package depth 360 mm
Package height 150 mm
Package weight 4000 g
Package width 430 mm
Packet buffer memory 1.5 MB
Password protection Y
Port mirroring Y
Power consumption (max) 18 W
Power over Ethernet (PoE) No
Quality of Service (QoS) support Y
Rack mounting Yes
Routing protocols RIP,RIP-2
Safety EN60950-1 (TUV), UL 60950- 1(cULus), EN60825-1
Security algorithms 3DES,AES,MD5,PEAP,RSA,SHA-1,SHA-2,SSH,SSH-2,SSL/TLS,TTLS
Spanning tree protocol Y
SSH/SSL support Y
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -25 - 70 °C
Switch layer L3
Switch type Managed
Switching capacity 36 Gbit/s
System event log Y
VLAN support Y
Wall mountable Y
Web-based management Y
Weight 2400 g
Width 341 mm
ARP inspection Y
Jumbo frames 10000
Private VLAN Y
BPDU filtering/protection Y
Port-based VLAN Y
Protocol-based VLAN Y
Loop protection Y
Authentication MAC-based authentication,Port-based authentication,Web-based authentication
Tagged VLAN Y
Traffic classification Y
System log Y
Included power plug types UK
DHCP snooping Y
Ethernet Ring Protection Switching (ERPS) Y
Static route Y
Voice VLAN Y
Root protection Y
Telnet Y
Fast leave Y
Authentication type AAA,IEEE 802.1x,Network Access Control (NAC),RADIUS
Neighbor discovery snooping Y

AT-GS970M18-30.pdf

Allied Telesis AT-GS970M/18-30 Data Sheet

Allied Telesis AT-GS970M/18-30

Managed Gigabit Ethernet Switch, 16x 10/100/1000T ports, 2x 100/1000X SFP ports, UK power cord
Out of Stock
£682.21
£568.51 Ex. VAT
Reference: AT-GS970M/18-30
Quantity
