Gigabit Edge Switch
The Allied Telesis x230-18GP features 16 x 10/100/1000T PoE+ ports with 2 SFP Gigabit uplink ports. A full feature-set with Power over Ethernet Plus (PoE+) makes it ideal for applications at the network edge, supporting the growth of wireless networking and digital video surveillance.
The Allied Telesis x230-18GP features 16 x 10/100/1000T PoE+ ports with 2 SFP Gigabit uplink ports. A full feature-set with Power over Ethernet Plus (PoE+) makes it ideal for applications at the network edge, supporting the growth of wireless networking and digital video surveillance.
| 10G support | N |
| AC input frequency | 47/63 Hz |
| AC input voltage | 90 - 260 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Colour of product | Grey |
| Combo SFP ports quantity | 2 |
| Depth | 231 mm |
| DHCP client | Y |
| DHCP server | Y |
| Flow control support | Y |
| Full duplex | Y |
| Heat dissipation | 81 BTU/h |
| Height | 44 mm |
| IGMP snooping | Y |
| Internal memory | 256 MB |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address table | 16000 entries |
| MIB support | Y |
| Multicast support | Y |
| Networking standards | IEEE 802.3,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Noise level | 34 dB |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4350 g |
| Package width | 430 mm |
| Port mirroring | Y |
| Power consumption (typical) | 21 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Security algorithms | 802.1x RADIUS |
| Stackable | Yes |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 36 Gbit/s |
| System event log | Y |
| Throughput | 26.8 Mpps |
| Web-based management | Y |
| Weight | 3000 g |
| Width | 341 mm |
| ARP inspection | Y |
| Power connector | DC-in jack |

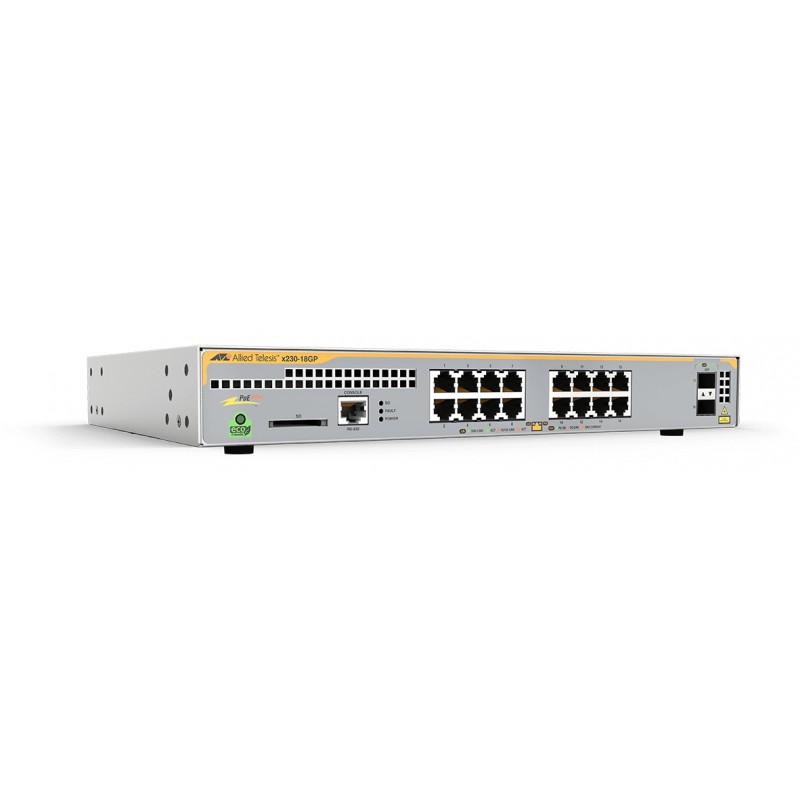

Allied Telesis AT-X230-18GP-30
L3 switch with 16 x 10/100/1000T PoE ports and 2 x 100/1000X SFP ports, UK power cord
AT-X230-18GP-30
In Stock
£1,063.41
£886.18 Ex VAT.
