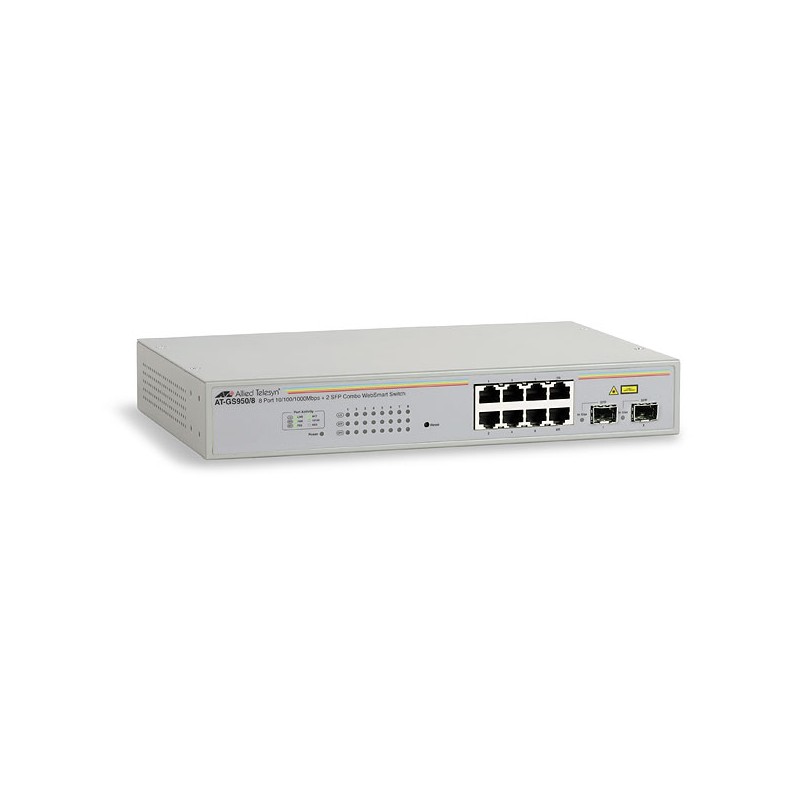

Allied Telesis AT-GS950/8
  • Allied Telesis AT-GS950/8
  • Allied Telesis AT-GS950/8
The WebSmart AT-GS950/8 features a Web-based interface that allows you to set up 802.1Q VLANs to segregate traffic, QoS to prioritize mission-critical data such as voice or video packets, and link aggregation to create traffic pipelines. The AT-GS950/8 also provides network monitoring tools such as port mirroring and basic port statistics. Remote product management enables simple monitoring from anywhere you have connectivity. This WebSmart switch provides managed features for simple QoS applications, 8 10/100/1000T ports and two combo SFP ports for Gigabit connections.
Basic switching RJ-45 Ethernet ports quantity8
CertificationUL 1950\nFCC/EN55022 Class B\nVCCI Class B\nC-Tick\nEN60950 (TUV)\nEN55024\nCE
Combo SFP ports quantity2
Connectivity technologyWired
Dimensions (WxDxH)280 x 179 x 43 mm
Flash memory4 MB
Flow control supportYes
Internal memory16 MB
Link aggregationYes
MAC address table4000 entries
Maximum data transfer rate1 Gbit/s
Networking featuresGigabit Ethernet
Networking standardsIEEE 802.1d,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory0.125 MB
Packet transfer speed1488000 pps
Port mirroringYes
Power over Ethernet (PoE)No
Power requirements100-240V AC, 50/60Hz
Quality of Service (QoS) supportYes
Security features802.1X
SFP/SFP+ slots quantity2
StackableNo
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 70 °C
Supported data transfer rates10/100/1000 Mbps
Switch typeManaged
Web-based managementYes
Weight1610 g

AT-GS9508-30.pdf

Allied Telesis AT-GS950/8 Data Sheet

Download (54.07k)

Allied Telesis AT-GS950/8

10/100/1000T x 8 ports WebSmart switch w/ 2 combo SFP ports (European power cord)

AT-GS950/8-30

Stock Due 05-08-2024

£164.70
£137.25 Ex VAT.
