The Allied Telesis CentreCOM® GS970M/18PS Layer 3 managed switch features sixteen 10/100/1000T Gigabit Ethernet ports and two 100/1000X SFP ports for secure connectivity at the network edge.
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Colour of product | Grey |
| Country of origin | China |
| Depth | 231 mm |
| DHCP client | Y |
| Flash memory | 96 MB |
| Flow control support | Y |
| Full duplex | Y |
| Heat dissipation | 72 BTU/h |
| Height | 44 mm |
| IGMP snooping | Y |
| Internal memory | ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots |
| IP routing | Y |
| Jumbo frames support | Y |
| Latency (1 Gbps) | 3.4 µs |
| Latency (10-100 Mbps) | 7.9 µs |
| MAC address table | 16000 entries |
| Multicast support | Y |
| Networking standards | IEEE 802.2,IEEE 802.3 |
| Noise level | 34 dB |
| Number of VLANs | 2048 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4350 g |
| Package width | 430 mm |
| Packet buffer memory | 1.5 MB |
| Port mirroring | Y |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Quality of Service (QoS) support | Y |
| Source data-sheet | Icecat.biz |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Switch layer | L3 |
| Switching capacity | 36 Gbit/s |
| Total Power over Ethernet (PoE) budget | 247 W |
| VLAN support | Y |
| Weight | 3000 g |
| Width | 341 mm |
| Installed SFP modules quantity | 2 |
| BPDU filtering/protection | Y |
| Loop protection | Y |

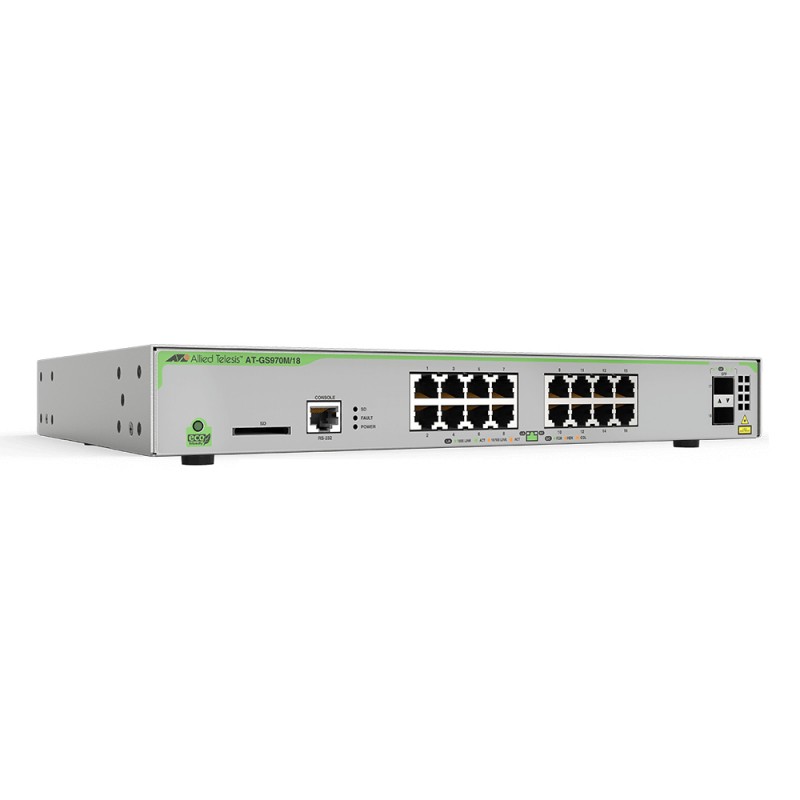

Allied Telesis AT-GS970M/18PS-30
L3 switch with 16 x 10/100/1000T PoE ports and 2 x 100/1000X SFP ports
£683.86
£569.88 Ex. VAT
L3 switch with 16 x 10/100/1000T PoE ports and 2 x 100/1000X SFP ports
