The WebSmart AT-GS950/16 features a Web-based interface that allows you to set up 802.1Q VLANs to segregate traffic, QoS to prioritize mission-critical data such as voice or video packets, and link aggregation to create traffic pipelines. The AT-GS950/16 also provides network monitoring tools such as port mirroring and basic port statistics. Remote product management enables simple monitoring from anywhere you have connectivity. This WebSmart switch provides managed features for simple QoS applications, 16 10/100/1000T ports and two combo SFP ports for Gigabit connections.
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Certification | UL 1950\nFCC/EN55022 Class A\nVCCI Class A\nC-Tick\nEN60950 (TUV)\nEN55024\nCE |
| Combo SFP ports quantity | 2 |
| Dimensions (WxDxH) | 352 x 256 x 43.2 mm |
| Flash memory | 2 MB |
| Internal memory | 8 MB |
| MAC address table | 96000 entries |
| Maximum data transfer rate | 96 Gbit/s |
| Networking features | Yes |
| Networking standards | IEEE 802.1D,IEEE 802.1s,IEEE 802.1W,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Non-operating relative humidity (non-condensing) | 5 - 95 % |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 8 - 35 °C |
| Packet transfer speed | 1488000 pps |
| Power requirements | 100-240V AC, 50/60Hz |
| SFP/SFP+ slots quantity | 9 |
| Source data-sheet | Icecat.biz |
| Stackable | No |
| Storage temperature (T-T) | -25 - 70 °C |
| Supported data transfer rates | x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec |
| Weight | 2380 g |

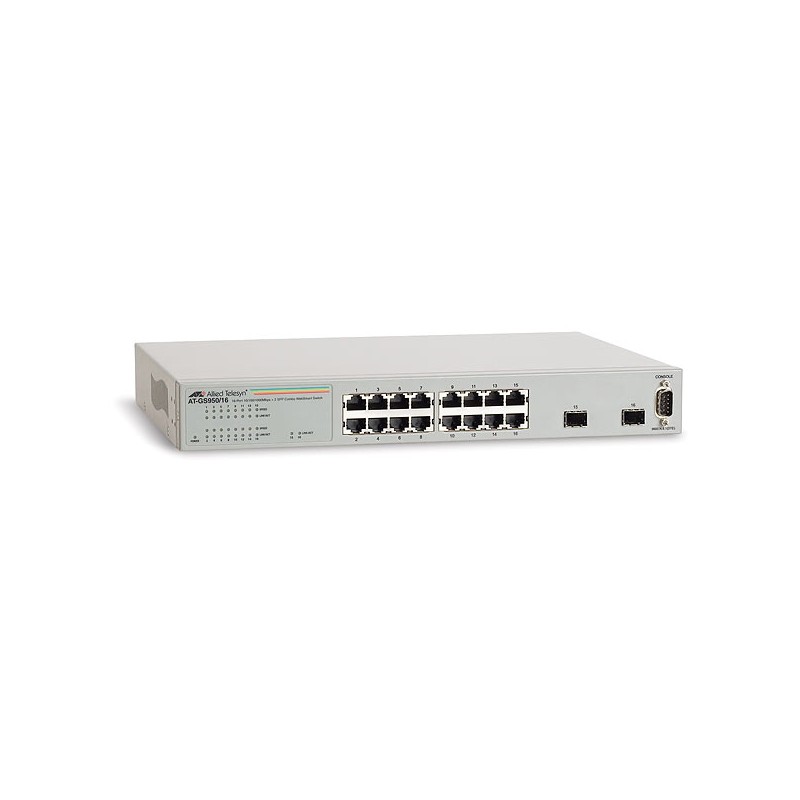

Allied Telesis AT-GS950/16
10/100/1000T x 16 ports WebSmart switch with 2 combo SFP ports (European power cord)
£342.23
£285.19 Ex. VAT
10/100/1000T x 16 ports WebSmart switch with 2 combo SFP ports (European power cord)
