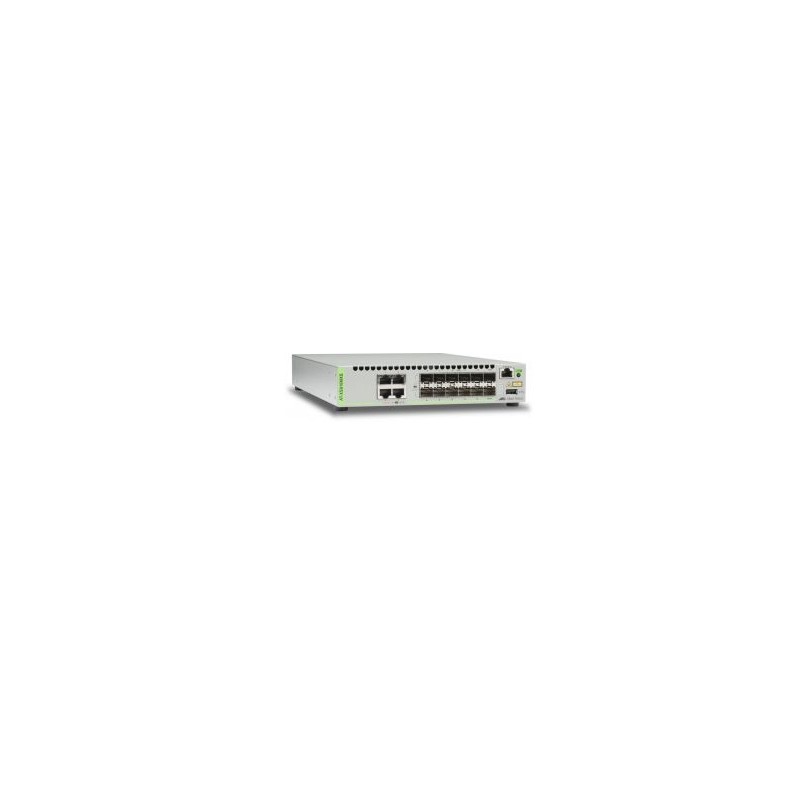

Allied Telesis AT-XS916MXS-30
  • Allied Telesis AT-XS916MXS-30
  • Allied Telesis AT-XS916MXS-30
Layer 3 10G Stackable Managed Switches

The AT-XS916MXT and AT-XS916MXS switches offer cost effective, high-speed 10G connectivity for servers and storage, and support 100/1000 connections for existing networks. The XS900MX Series enable a highly flexible and reliable network, which can easily scale to meet increasing traffic demands.



Overview

The XS900MX Series are the ideal 10G access switches for enterprise networks or anywhere a relay switch with 10G uplink is required. The switches also make the ideal core or aggregation switch, to connect servers and storage in a small network.The AT-XS916MXT features 12 x 100/1000/10GBASE-T and 4 x SFP+ slots. The AT-XS916MXS features 4 x 100/1000/10GBASE-T and 12 x SFP+ slots.



Easy management

The XS900MX Series switches feature Allied Telesis Management FrameworkTM (AMF), a sophisticated suite of management tools that provides a simplified approach to network management. Common tasks are automated or made so simple that the everyday running of a network can be achieved without the need for highly trained, and expensive, network engineers. Powerful features like centralized management, auto-backup, auto-upgrade, auto-provisioning and auto-recovery enable plug-and-play networking and zero-touch management.



Resiliency

Ethernet Protection Switching Ring (EPSRingTM) and 10 Gigabit Ethernet allow several XS900MX Series switches to form a protected ring capable of recovery within as little as 50ms. This feature is perfect for high performance and high availability in enterprise networks.
10G supportYes
AC input frequency47/63 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Colour of productGrey
Depth210 mm
DHCP clientY
Flash memory96 MB
Flow control supportY
Full duplexY
Heat dissipation180 BTU/h
Height43 mm
IGMP snoopingY
IP routingY
Jumbo frames supportY
Link aggregationY
MAC address table16000 entries
Management protocolsSNMP
Multicast supportY
Networking standardsIEEE 802.1x,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3x,IEEE 802.3z
Noise level42 dB
Number of power supply units1
Number of queues8
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)0 - 50 °C
Port mirroringY
Power consumption (max)53 W
Power over Ethernet (PoE)N
Quality of Service (QoS) supportY
Rack mountingN
Spanning tree protocolY
SSH/SSL supportY
StackableYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 70 °C
Switch layerL3
Switch typeManaged
Switching capacity320 Gbit/s
System event logY
Throughput238 Mpps
VLAN supportY
Web-based managementY
Weight2700 g
Width323 mm
ARP inspectionY
SFP+ module slots quantity12
BPDU filtering/protectionY
Loop protectionY
AuthenticationMAC-based authentication
Traffic classificationY

Allied Telesis AT-XS916MXS-30

12x SFP+, 4x 10/100/1000/10G-T, Intelligent Switch, STK, UK Power Cord

AT-XS916MXS-30

In Stock

£2,493.79
£2,078.16 Ex VAT.
