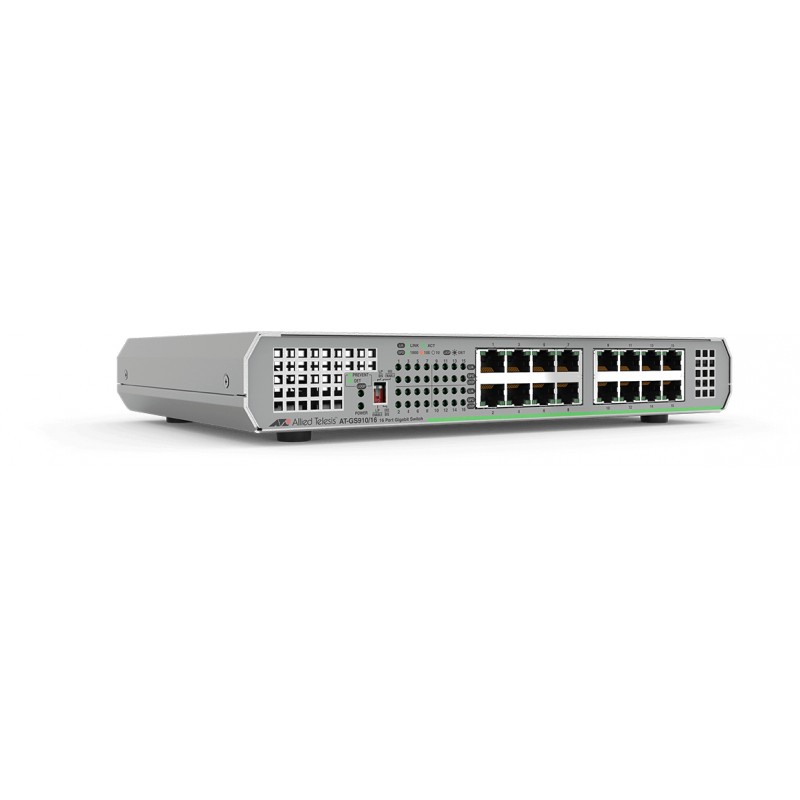

Allied Telesis AT-GS910/16-30 Unmanaged Gigabit Ethernet (10/100/1000) 1U Grey network switch
  • Allied Telesis AT-GS910/16-30 Unmanaged Gigabit Ethernet (10/100/1000) 1U Grey network switch
  • Allied Telesis AT-GS910/16-30 Unmanaged Gigabit Ethernet (10/100/1000) 1U Grey network switch
The Allied Telesis GS910 Series offers unmanaged Gigabit switching solutions for the desktop, and small networks. With minimal to no set-up, GS910 Series switches provide simple and seamless connectivity to existing network infrastructure.



- EAP/BPDU passthrough

- Wirespeed performance

- Non-blocking architecture

- Auto-negotiation Gigabit ports

- Auto MDI/MDI-X on TX ports

- Full-duplex flow control

- Silent operation; fanless

- Operating temperature 0-50°C
10G support No
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Auto MDI/MDI-X Y
Auto-negotiation Y
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Buffer size 524 KB
Certification EAC certification, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022
Colour of product Grey
Console port RJ-45
Copper ethernet cabling technology 10BASE-T,100BASE-T,1000BASE-T
Depth 179 mm
Flow control support Y
Form factor 1U
Full duplex Y
Gigabit Ethernet (copper) ports quantity 16
Height 38 mm
Housing material Metal
Input current 0.3 A
Jumbo frames support Y
MAC address table 8000 entries
Networking standards IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H) 5 - 90 %
Operating temperature (T-T) 0 - 50 °C
Power consumption (max) 12 W
Power over Ethernet (PoE) No
Rack mounting Yes
Safety UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB)
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -25 - 70 °C
Switch type Unmanaged
Switching capacity 32 Gbit/s
Throughput 23.8 Mpps
Wall mountable Y
Web-based management Y
Weight 1500 g
Width 263 mm
Jumbo frames 10000
BPDU filtering/protection Y
Loop protection Y
Packet forwarding rate (1 Gbps) 1488000 pps
Packet forwarding rate (100 Mbps) 148800 pps
Packet forwarding rate (10 Mbps) 14880 pps
Included power plug types UK

AT-GS91016-30.pdf

Allied Telesis AT-GS910/16-30 Data Sheet

Allied Telesis AT-GS910/16-30

Gigabit Ethernet Unmanaged Switch, 16-port 10/100/1000T, Internal PSU, UK Power Adapter
