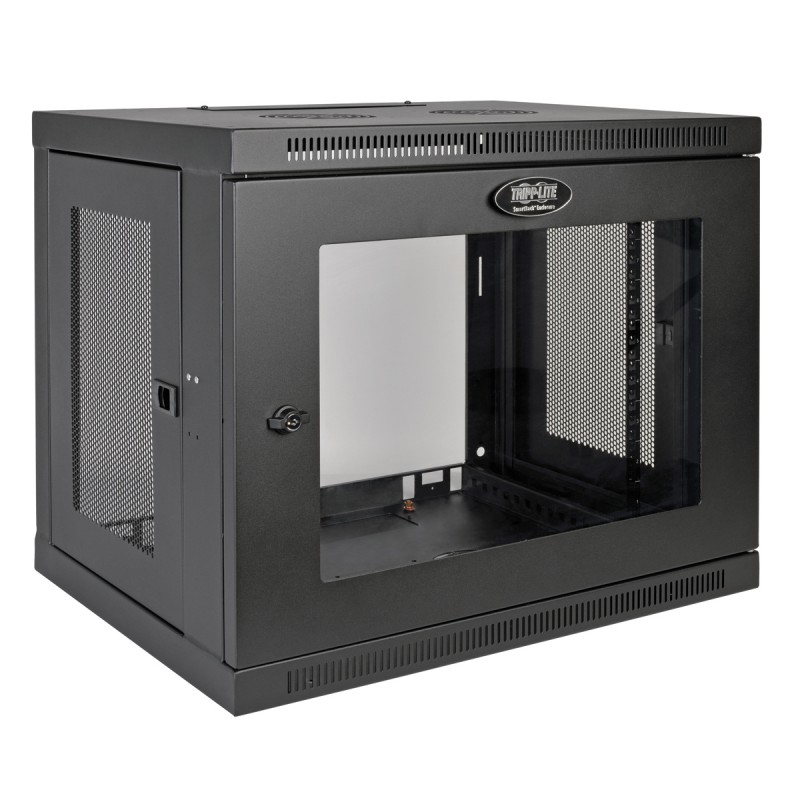

The SRW9UG SmartRack 9U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.



The front door features a shatter-resistant clear acrylic window that lets you monitor equipment without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.



The side panels and front door lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.



The SRW9UG comes fully assembled and ready to mount to the wall, or use Tripp Lite’s optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
CertificationUL/CSA 60950-1; EIA-310-E, RoHS
Colour of productBlack
Depth450 mm
Height501.7 mm
Key lockYes
ManualYes
MaterialAcrylic,Steel
Mounting kitYes
Package depth511 mm
Package height576.6 mm
Package weight17460 g
Package width663 mm
Rack capacity9U
TypeWall mounted rack
Weight15600 g
Width600.2 mm
Maximum weight capacity90.7 kg

SRW9UG.pdf

Tripp Lite SRW9UG Data Sheet

Download (530.87k)
