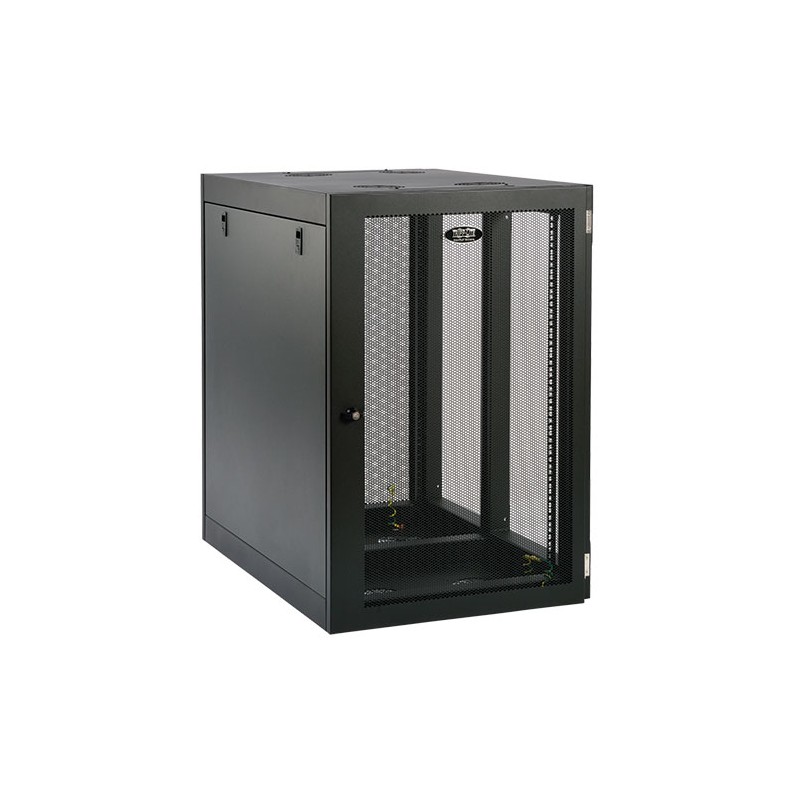

The SRW18UHD is a wall-mount, rack enclosure that can accommodate full server depth equipment (29”-31”) but only protrudes off the wall 24”. Since the equipment is mounted in the wall cabinet sideways, the leverage off the wall is less and the weight capacity is increased greatly. Access to mounted equipment is still great due to full access doors on each side of the cabinet (for front and rear equipment access) and one full removable side panel for access along the length of the mounted equipment. Adjustable front and rear mounting rails have square holes (default position) and tapped holes to accommodate 18U of equipment.
- Heavy-Duty/High Weight Capacity side-mount construction
- 18U of server depth equipment capacity
- Fully vented doors and side panel
- Adjustable front and rear rails
- Dual-rail mounting designs supports equipment mounting via square holes or threaded holes
- 500lb weight capacity
Certification |
EIA-310-E, NOM, RoHS |
Colour of product |
Black |
Depth |
629 mm |
Form factor |
18U |
Height |
938.7 mm |
Package depth |
650 mm |
Package height |
1049 mm |
Package weight |
62360 g |
Package width |
960 mm |
Type |
Wall mounted rack |
Weight |
54380 g |
Width |
920 mm |
Maximum weight capacity |
181.4 kg |
Depth (imperial) |
24.77 " |
Width (imperial) |
36.22 " |
Height (imperial) |
36.96 " |
Tripp Lite SmartRack 18U Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet Data Sheet
