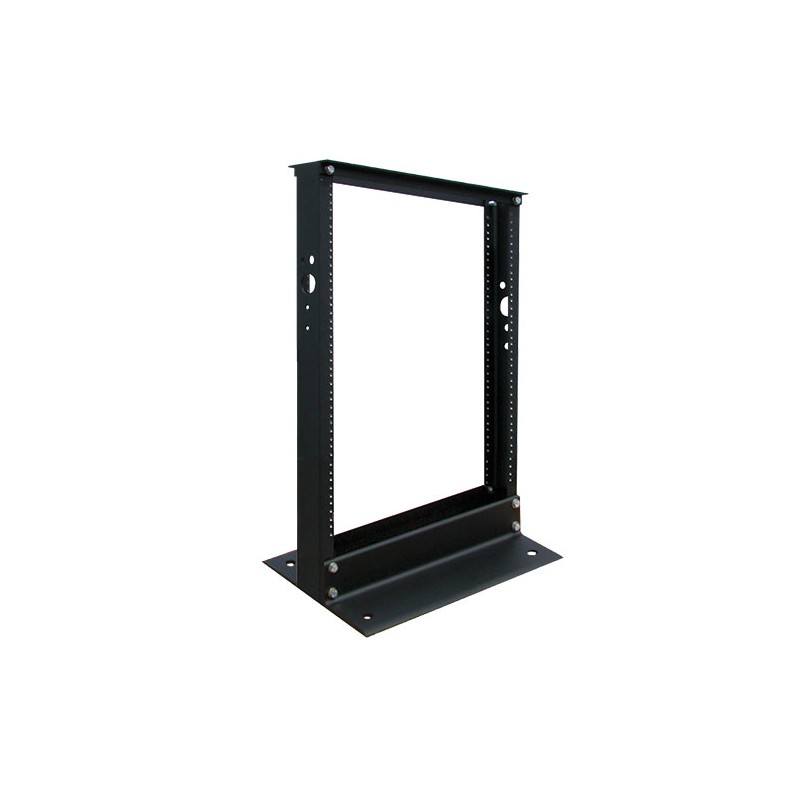

Tripp Lite’s SR2POST13 2-Post SmartRack Open Frame Rack is an economical way to accommodate 13U of rack space for 19-inch rackmount applications in limited spaces. Its heavy-duty, aluminum construction can safely support 362 kgs of rackmount equipment. The black, textured powder coat finish makes it resistant to scratching while giving it a ""classic,"" attractive appearance. The SR2POST13 is easy to install due to a self-squaring design combined with 12-24 threaded and numbered mounting positions along with bolt down provisions. Only standard hand tools are required for installation (9/16"" wrench and 9/16"" socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization as needed. The SR2POST13 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D, IEC 60297-3-100, and RoHS, and is backed by a 5-year warranty.
● Supports 362 kgs of rackmount equipment
● Textured powder coat finish
● Heavy Duty Aluminum construction
● 12-24 threaded and numbered mounting positions
● Bolt down provisions
● Self squaring design
● Black finish
● Easy assembly
● 13U 2-post open frame rack
● Black aluminum with 12-24 threaded and numbered mounting holes
Package Includes
● SR2POST13
● 28 pieces each of 12-24 screws and washers for equipment mounting
● Installation hardware
● Cable management hooks
● Warranty Information
● Owner's Manual
Certification |
NOM, EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS |
Colour of product |
Black |
Depth |
121 mm |
Height |
710 mm |
Package depth |
711 mm |
Package height |
114 mm |
Package weight |
10020 g |
Package width |
155 mm |
Weight |
9070 g |
Width |
516 mm |
Maximum weight capacity |
362.9 kg |
Depth (imperial) |
4.75 " |
Width (imperial) |
20.3 " |
Height (imperial) |
28 " |
Tripp Lite 13U SmartRack 2-Post Open Frame Rack - Organize and Secure Network Rack Equipment Data Sheet
