Scalable Storage Server On-Demand
RS2818RP+ is an ideal storage solution for small- and medium-sized businesses with great flexibility in terms of expandable storage capacity, upgradable memory and optional high-speed NIC support. It fits perfectly as a backup target for distributed businesses, a centralized file server, or a backup target for employee workstations in a growing business.
Robust scalability and reliability
RS2818RP+ provides large, scalable storage capacity with affordable total cost of ownership. The 3U chassis design accommodates up to 16 drives and the storage capacity can be further scaled up when connected to one Synology Expansion Unit RX1217 or RX1217RP1, providing a total drive count of 28 without disrupting host services.
Ultimate Backup Solution
RS2818RP+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
RS2818RP+ is an ideal storage solution for small- and medium-sized businesses with great flexibility in terms of expandable storage capacity, upgradable memory and optional high-speed NIC support. It fits perfectly as a backup target for distributed businesses, a centralized file server, or a backup target for employee workstations in a growing business.
Robust scalability and reliability
RS2818RP+ provides large, scalable storage capacity with affordable total cost of ownership. The 3U chassis design accommodates up to 16 drives and the storage capacity can be further scaled up when connected to one Synology Expansion Unit RX1217 or RX1217RP1, providing a total drive count of 28 without disrupting host services.
Ultimate Backup Solution
RS2818RP+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Y |
| Auto MDI/MDI-X | Y |
| Backup features | Cloud,iSCSI LUN |
| Backup function | Y |
| Built-in display | N |
| Cables included | AC,LAN (RJ-45) |
| Chassis type | Rack (3U) |
| Cooling type | active |
| CPU configuration (max) | 1 |
| Depth | 656.5 mm |
| Device class | Small & Medium Business |
| DHCP client | Y |
| DHCP server | Y |
| Drive bay locking | Y |
| Embedded options available | Y |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Execute Disable Bit | Y |
| Fan diameter | 80 mm |
| Height | 132.3 mm |
| Hot-swap drive bays | Y |
| Installed storage drive type | N |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Internal memory | 4 GB |
| Internal memory type | DDR4 |
| iSCSI support | Y |
| Jumbo frames support | Y |
| LED indicators | Y |
| Maximum number of PCI Express lanes | 12 |
| Maximum RAM supported | 64 GB |
| Maximum supported storage capacity | 192 TB |
| Memory slots | 4 |
| Multilingual support | Y |
| Noise level | 51 dB |
| Number of fans | 3 fan(s) |
| Number of power supply units | 2 |
| Number of storage drives supported | 16 |
| Operating relative humidity (H-H) | -20 - 60 % |
| Operating temperature (T-T) | 5 - 35 °C |
| PCI Express slots version | 3.0 |
| Power consumption (typical) | 138.1 W |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Processor boost frequency | 2.10 GHz |
| Processor cache | 8 MB |
| Processor code | SR3L7 |
| Processor codename | Denverton |
| Processor cores | 4 |
| Processor family | Intel Atom |
| Processor frequency | 2.10 GHz |
| Processor lithography | 14 nm |
| Processor model | C3538 |
| Processor operating modes | 64-bit |
| Processor socket | BGA 1310 |
| Processor threads | 4 |
| Quick installation guide | Y |
| RAID levels | 0,1,5,6,10,JBOD |
| RAID support | Y |
| RoHS compliance | Y |
| Stepping | B1 |
| Storage drive sizes supported | 2.5,3.5 " |
| Storage drives installed | N |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | 5 - 95 °C |
| Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
| Supported storage drive interfaces | Serial ATA,Serial ATA II,Serial ATA III |
| Supported storage drive types | HDD,SSD |
| Tcase | 87 °C |
| Thermal Design Power (TDP) | 15 W |
| Tjunction | 100 °C |
| Type | NAS |
| USB port | Y |
| Weight | 17400 g |
| Wi-Fi | No |
| Width | 485 mm |
| Processor cache type | Smart Cache |
| Maximum internal memory supported by processor | 256 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory channels supported by processor | Dual |
| ECC supported by processor | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Processor package size | 34 x 28 mm |
| Built-in FTP server | Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 1 |
| Conflict Free processor | Y |
| Intel Secure Boot | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel® Hyper Threading Technology (Intel® HT Technology) | N |
| Intel® Secure Key | Y |
| Intel® OS Guard | Y |
| Intel® Turbo Boost Technology | N |
| Processor ARK ID | 97929 |
| Intel QuickAssist Technology | Y |
| Product colour | Black |
Specific References
- EAN13
- 0846504002900

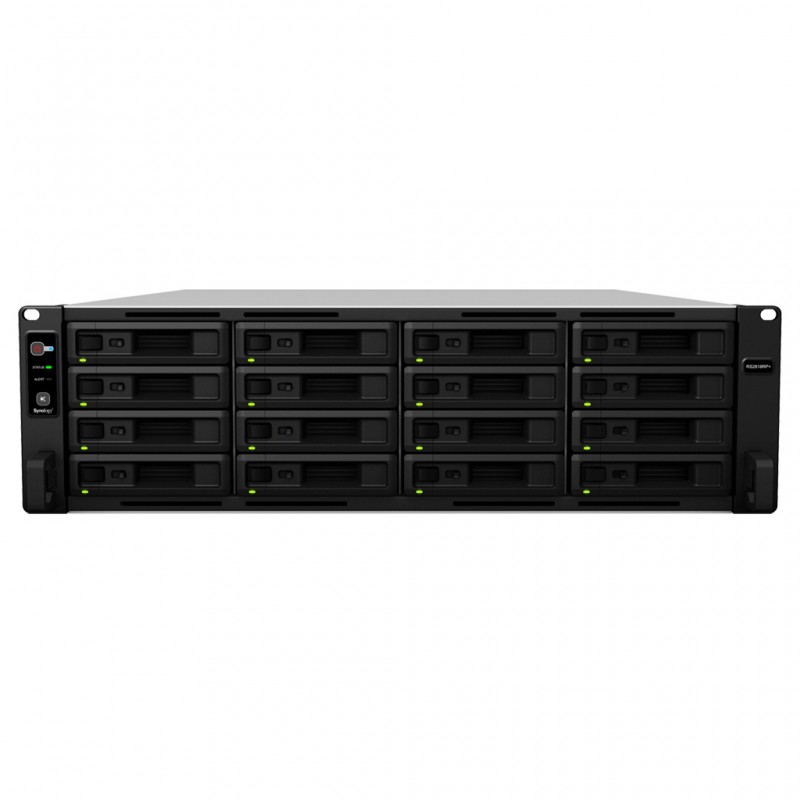

Synology RS2818RP+
Intel Atom C3538, 4 GB DDR4, 16 x SATA SSD/HDD, 2 x USB 3.0, RJ-45, 132.3 mm x 482 mm x 656.5, 17.4 kg
£2,863.71
£2,386.43 Ex. VAT
Intel Atom C3538, 4 GB DDR4, 16 x SATA SSD/HDD, 2 x USB 3.0, RJ-45, 132.3 mm x 482 mm x 656.5, 17.4 kg
