Synology RS1619XS+
  • Synology RS1619XS+
  • Synology RS1619XS+
  • Synology RS1619XS+
  • Synology RS1619XS+
  • Synology RS1619XS+
  • Synology RS1619XS+
  • Synology RS1619XS+
  • Synology RS1619XS+

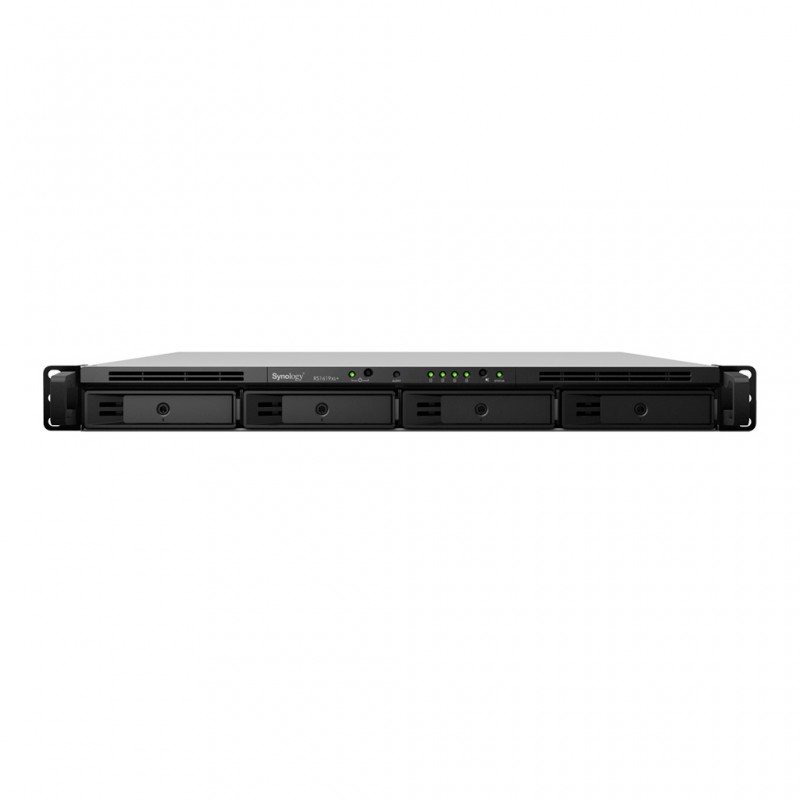

Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology’s 5-year limited warranty.



Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration.



RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit. Storage capacity can be expanded according to your business needs with minimal effort.



- Powerful 1U NAS for growing businesses, featuring a quad-core CPU with AES-NI and 8 GB (up to 64 GB) DDR4 ECC UDIMM

- Built-in M.2 NVMe/SATA SSD slots for system cache support

- Excellent performance of over 1,523 MB/s sequential reading and 162,097 iSCSI random read IOPS1

- Optional 10GbE NIC support

- Scalable up to 16 drives with Synology RX1217/RX1217RP

- Complete virtualization solution with Synology Virtual Machine Manager

- Backed by Synology’s 5-year limited warranty & Synology Replacement Service (SRS)3
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Backup featuresCloud,iSCSI LUN
Backup functionY
Browser supportedChrome, Firefox, Internet Explorer 10+, Safari 10+
Cables includedAC
CertificationEAC\nVCCI\nRCM\nFCC\nCE\nBSMI
Chassis typeRack (1U)
Cooling typeactive
CPU configuration (max)1
Depth518.6 mm
Device classSmall & Medium Business
Embedded options availableY
Enhanced Intel SpeedStep TechnologyY
Ethernet LANY
Ethernet LAN data rates10,100,1000 Mbit/s
Execute Disable BitY
Fan diameter40 mm
Height44 mm
Hot-swap drive baysY
Idle StatesY
Installed storage drive typeN
Intel 64Y
Intel Enhanced Halt StateY
Intel Trusted Execution TechnologyY
Intel TSX-NIY
Intel Virtualization Technology for Directed I/O (VT-d)Y
Intel VT-x with Extended Page Tables (EPT)Y
Internal memory8 GB
Internal memory typeDDR4
iSCSI supportY
LED indicatorsAlarm,HDD,Power,Status
Link aggregationY
Mac operating systems supportedMac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave
Maximum number of PCI Express lanes32
Maximum RAM supported64 GB
Memory slots4
Multilingual supportY
Noise level39.3 dB
Number of fans2 fan(s)
Number of power supply units2
Number of storage drives supported4
On/off switchY
Operating altitude0 - 5000 m
Operating relative humidity (H-H)5 - 95 %
Operating system installedDiskStation Manager
Operating temperature (T-T)5 - 35 °C
PCI Express configurations1x16,1x4,1x8
PCI Express slots version2.0,3.0
PCI Express x8 (Gen 3.x) slots1
Power consumption (typical)68.68 W
Power supply locationBuilt-in
Power supply unit (PSU) capacity150 W
Processor boost frequency2.70 GHz
Processor cache6 MB
Processor codeSR2DK
Processor codenameBroadwell
Processor cores4
Processor familyIntel Xeon D
Processor frequency2.20 GHz
Processor lithography14 nm
Processor modelD-1527
Processor operating modes64-bit
Processor socketBGA 1667
Processor threads8
Quick installation guideY
RAID levels0,1,5,6,10,JBOD
RAID supportY
Reset buttonY
RoHS complianceY
Scalability1S
Security algorithmsHTTPS,SSH,SSL/TLS
Server operating systems supportedWindows Server 2016
SteppingV2
Storage drive interfaceSerial ATA,Serial ATA II,Serial ATA III
Storage drive sizes supported2.5,3.5 "
Storage drives installedN
Storage temperature (T-T)-20 - 60 °C
Supported file systemsBTRFS,FAT,HFS+,NTFS,ext3,ext4
Supported network protocolsCIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
Supported storage drive typesHDD,SSD
Thermal Design Power (TDP)35 W
Thermal Monitoring TechnologiesY
TypeNAS
UARTY
USB portY
Wake-on-LAN readyY
Web-based managementY
Weight8160 g
Wi-FiN
Width480 mm
Windows operating systems supportedWindows 10,Windows 7
Processor cache typeL3
Maximum internal memory supported by processor128 GB
Memory types supported by processorDDR3-SDRAM,DDR4-SDRAM
Memory channels supported by processorDual
ECC supported by processorY
Intel Virtualization Technology (VT-x)Y
Processor package size37.5 x 37.5 mm
Processor seriesIntel Xeon D-1500
USB 3.0 (3.1 Gen 1) Type-A ports quantity2
Conflict Free processorY
S.M.A.R.T. supportY
Intel® AES New Instructions (Intel® AES-NI)Y
Intel® Hyper Threading Technology (Intel® HT Technology)Y
Intel® Secure KeyY
Intel® OS GuardY
Intel® Turbo Boost Technology2.0
Processor ARK ID91195
Power consumption (HDD standby)34.78 W
Product colourBlack
Number of M.2 (M & B) slots2
Expansion ports quantity1

RS1619XS.pdf

Synology RS1619XS+ Data Sheet

Download (595.09k)

Similar products

  • Synology RXD1215sas
    Synology RXD1215sas
  • Synology FlashStation FS2017
    Synology FlashStation FS2017
  • Synology DS918+
    Synology DS918+
  • Synology DS218J
    Synology DS218J
  • Synology DS218play
    Synology DS218play

Synology RS1619XS+

RackStation RS1619XS+, Intel Xeon D-1527 2.2 GHz, 8 GB DDR4, 4x 2.5/3.5" HDD/SSD SATA, 2x M.2, 4x RJ-45, 2x USB 3.0, 1x PCIe x8 3.0, 44x480x518.6 mm

RS1619XS+

In Stock

£2,288.32
£1,906.93 Ex VAT.
