High-speed scalable storage server
Synology RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. It simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance.
Ready for 10GbE and beyond
PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.
Ultimate Backup Solution
RS3618xs integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Active Backup for Server
An agentless backup solution protects data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Desktop Backup
Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
Active Backup for Office 365/ G Suite
On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
- quad-core up to 2.7GHz
- 8GB DDR4 ECC UDIMM, up to 64GB
- 4 x 1GbE port, optional 10GbE NIC support
- Up to 36 drives with RX1217/RX1217RP
Synology RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. It simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance.
Ready for 10GbE and beyond
PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.
Ultimate Backup Solution
RS3618xs integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Active Backup for Server
An agentless backup solution protects data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Desktop Backup
Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
Active Backup for Office 365/ G Suite
On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
- quad-core up to 2.7GHz
- 8GB DDR4 ECC UDIMM, up to 64GB
- 4 x 1GbE port, optional 10GbE NIC support
- Up to 36 drives with RX1217/RX1217RP
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Y |
| Backup features | Cloud,iSCSI LUN |
| Backup function | Y |
| Browser supported | Chrome, Firefox, Internet Explorer 10, Safari |
| Cables included | AC |
| Certification | EAC, VCCI, CCC, RCM, FCC, CE, BSMI |
| Chassis type | Rack (2U) |
| Cooling type | active |
| CPU configuration (max) | 1 |
| Depth | 692 mm |
| Device class | Small & Medium Business |
| Embedded options available | N |
| Enhanced Intel SpeedStep Technology | Y |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Execute Disable Bit | Y |
| Fan diameter | 80 mm |
| Height | 990mm |
| Hot-swap drive bays | Y |
| Idle States | Y |
| Installed storage drive type | N |
| Intel 64 | Y |
| Intel Enhanced Halt State | Y |
| Intel Trusted Execution Technology | Y |
| Intel TSX-NI | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| iSCSI support | Y |
| LED indicators | HDD,Power |
| Link aggregation | Y |
| Mac compatibility | Y |
| Mac operating systems supported | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra |
| Maximum number of PCI Express lanes | 32 |
| Maximum RAM supported | 64 GB |
| Maximum supported storage capacity | 144 TB |
| Memory clock speed | 2133 MHz |
| Memory slots | 4 |
| Multilingual support | Y |
| Noise level | 50.2 dB |
| Number of fans | 4 fan(s) |
| Number of power supply units | 1 |
| Number of storage drives supported | 12 |
| Number of users | 16000 user(s) |
| On/off switch | Y |
| Operating altitude | 0 - 5000 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating system installed | DiskStation Manager |
| Operating temperature (T-T) | 5 - 35 °C |
| PCI Express configurations | 1x16,1x4,1x8 |
| PCI Express slots version | 2.0,3.0 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| Power consumption (typical) | 142.76 W |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Processor boost frequency | 2.70 GHz |
| Processor cache | 6 MB |
| Processor code | SR2DF |
| Processor codename | Broadwell |
| Processor cores | 4 |
| Processor family | Intel Xeon D |
| Processor frequency | 2.40 GHz |
| Processor lithography | 28, 22 nm |
| Processor model | D-1521 |
| Processor operating modes | 64-bit |
| Processor socket | BGA 1667 |
| Processor threads | 8 |
| Quick installation guide | Y |
| RAID levels | 0,1,5,6,10,F1,JBOD |
| RAID support | Y |
| Reset button | Y |
| RoHS compliance | Y |
| Scalability | 1S |
| Security algorithms | HTTPS,SSH,SSL/TLS |
| Server operating systems supported | Windows Server 2012,Windows Server 2012 R2 |
| Source data-sheet | Icecat.biz |
| Stepping | V2 |
| Storage drive sizes supported | 2.5,3.5 " |
| Storage drives installed | N |
| Storage temperature (T-T) | -20 - 60 °C |
| Supported file systems | BTRFS,FAT,HFS+,NTFS,ext3,ext4 |
| Supported network protocols | CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN) |
| Supported storage drive interfaces | Serial ATA,Serial ATA II,Serial ATA III |
| Supported storage drive types | HDD,SSD |
| Thermal Design Power (TDP) | 45 W |
| Thermal Monitoring Technologies | Y |
| Type | NAS |
| UART | Y |
| USB port | Y |
| Wake-on-LAN ready | Y |
| Web-based management | Y |
| Weight | 14500 g |
| Width | 430.5 mm |
| Windows operating systems supported | Windows 10,Windows 7 |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR3-SDRAM,DDR4-SDRAM |
| Memory channels supported by processor | Dual |
| ECC supported by processor | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon D-1500 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| Conflict Free processor | Y |
| S.M.A.R.T. support | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Secure Key | Y |
| Intel® OS Guard | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 91202 |
| System log | Y |
| Hot spare | Y |
| Share folder | CIFS/AFP/FTP |
| Power consumption (HDD standby) | 55.05 W |
| Product colour | Black |
Specific References
- EAN13
- 0846504003051

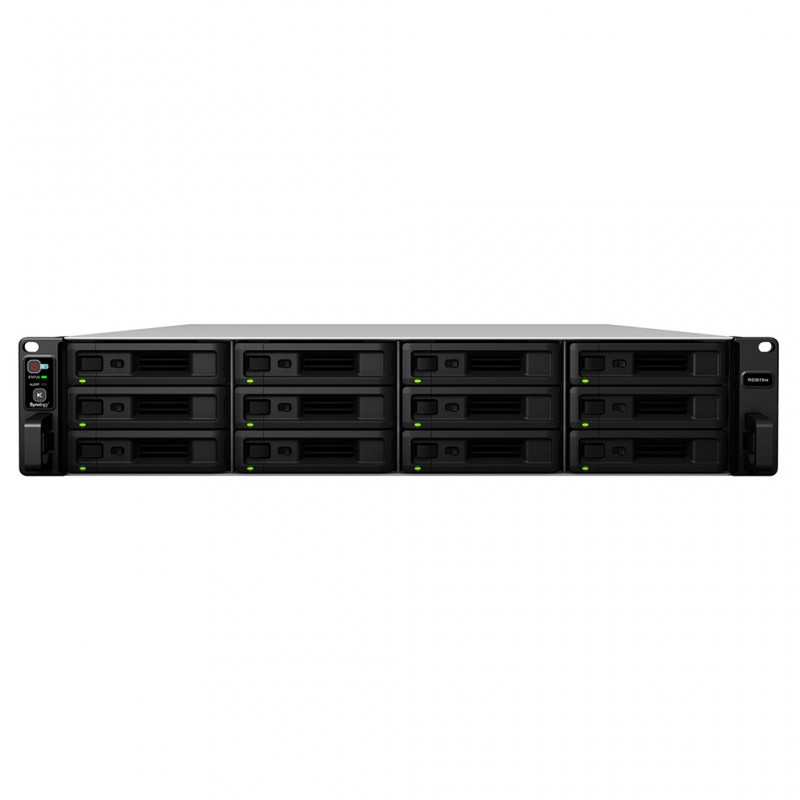

Synology RS3618xs
RackStation RS3618xs, Intel Xeon D-1521 2.4 GHz, 8 GB DDR4, 12x 2.5/3.5" SATA HDD/SSD, 4x RJ-45 1GbE LAN, 2x USB 3.0, 2x Gen3 x8, 500 W PSU, 88x430.5x692 mm
£2,840.14
£2,366.78 Ex. VAT
RackStation RS3618xs, Intel Xeon D-1521 2.4 GHz, 8 GB DDR4, 12x 2.5/3.5" SATA HDD/SSD, 4x RJ-45 1GbE LAN, 2x USB 3.0, 2x Gen3 x8, 500 W PSU, 88x430.5x692 mm
