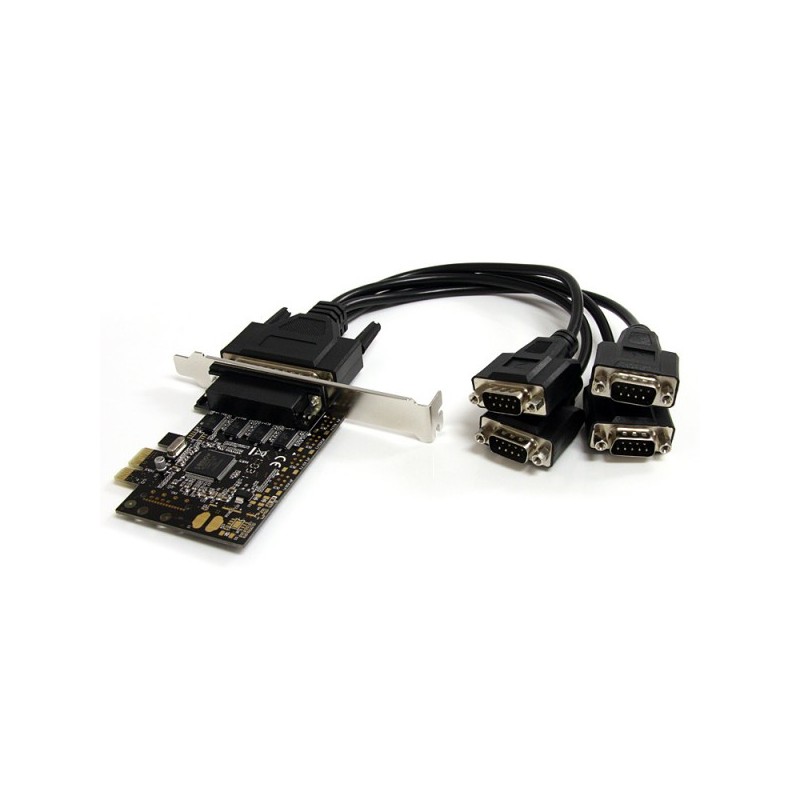

Add 4 RS232 serial ports to any PC using a single PCI Express expansion slot
The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot.
The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.
The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows, Linux, and MAC OS.
This product is a replacement for our PEX4S552B card.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Lower CPU load of native single-chip, single lane PCI Express design ensures optimal system performance (up to 48% less CPU load)
- Includes both standard and low profile/half-height brackets, which makes this the perfect card for any application, including small form factor embedded applications
- Breakout cable design means that only one expansion slot is needed, to add 4 additional serial ports to any system
The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot.
The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.
The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows, Linux, and MAC OS.
This product is a replacement for our PEX4S552B card.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Lower CPU load of native single-chip, single lane PCI Express design ensures optimal system performance (up to 48% less CPU load)
- Includes both standard and low profile/half-height brackets, which makes this the perfect card for any application, including small form factor embedded applications
- Breakout cable design means that only one expansion slot is needed, to add 4 additional serial ports to any system
| Chipset | MosChip MCS9901 |
| Compatible operating systems | DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Linux, Mac OS 10.4.x, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0 |
| Connectivity technology | Wired |
| Host interface | PCIe |
| Operating relative humidity range | 5 - 85 % |
| Operating temperature range (T-T) | 0 - 70 °C |
| Ports quantity | 4 |
| Source data-sheet | Icecat.biz |
| Storage temperature range (T-T) | -40 - 85 °C |
| Weight | 226.24 g |
Specific References
- EAN13
- 0065030842556
StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
