Efficiency
- Above 96% efficiency in double conversion mode
- Up to 99% efficiency with Energy Saver System
Scalability
- Scalable architecture and ‘Pay as you grow’ capability to minimise Capital Expenditure
- Paralleling of up to 4 units
Inherent redundancy
- Modular design allows internal redundancy (separate battery configuration also available)
Smallest footprint in the market
The 93PS provides significantly more in a smaller package, with a footprint of only 0.25 m² for the smaller frame (8-20 kW) and 0.36 m² for the large frame (8-40 kW)
Unity power factor (1.0)
Hot Swap and Hot Scalable
- A module can be replaced while the other continues protecting the load (concurrent maintenance)
- A module can be added while the other continues protecting the load (hot scalable)
- Individual battery strings can be serviced while other strings are supporting the load
Super-sized static switch
Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation
Safety
- Equipped with an ultra-rapid fuse in the Static Switch – ensuring safety in all scenarios
- Equipped with a backfeed contactor – no need for additional installments
Cloud & Virtualisation ready
- The 93PS and Eaton’s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
- IT and electrical infrastructure management from a “Single pane of glass”
- Load shedding – 50% drop in load equates to 250% more runtime!
- Above 96% efficiency in double conversion mode
- Up to 99% efficiency with Energy Saver System
Scalability
- Scalable architecture and ‘Pay as you grow’ capability to minimise Capital Expenditure
- Paralleling of up to 4 units
Inherent redundancy
- Modular design allows internal redundancy (separate battery configuration also available)
Smallest footprint in the market
The 93PS provides significantly more in a smaller package, with a footprint of only 0.25 m² for the smaller frame (8-20 kW) and 0.36 m² for the large frame (8-40 kW)
Unity power factor (1.0)
Hot Swap and Hot Scalable
- A module can be replaced while the other continues protecting the load (concurrent maintenance)
- A module can be added while the other continues protecting the load (hot scalable)
- Individual battery strings can be serviced while other strings are supporting the load
Super-sized static switch
Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation
Safety
- Equipped with an ultra-rapid fuse in the Static Switch – ensuring safety in all scenarios
- Equipped with a backfeed contactor – no need for additional installments
Cloud & Virtualisation ready
- The 93PS and Eaton’s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
- IT and electrical infrastructure management from a “Single pane of glass”
- Load shedding – 50% drop in load equates to 250% more runtime!
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Certification | IEC 62040-2, IEC 62040-3 |
| Colour of product | Black |
| Depth | 750 mm |
| Display | LCD |
| Efficiency | 96 % |
| Form factor | Tower |
| Height | 1750 mm |
| Hot-swap battery | Y |
| Input operation voltage (max) | 415 V |
| Input operation voltage (min) | 220 V |
| International Protection (IP) code | IP20 |
| LED indicators | Y |
| Number of batteries supported | 64 |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 415 V |
| Output operation voltage (min) | 220 V |
| Output power | 40000 W |
| Output power factor | 1 |
| Power protection features | Overload |
| Power supply input frequency | 50/60 Hz |
| Safety | IEC 62040-1 |
| Width | 480 mm |
| Output power capacity | 40000 VA |
| UPS topology | Double-conversion (Online) |

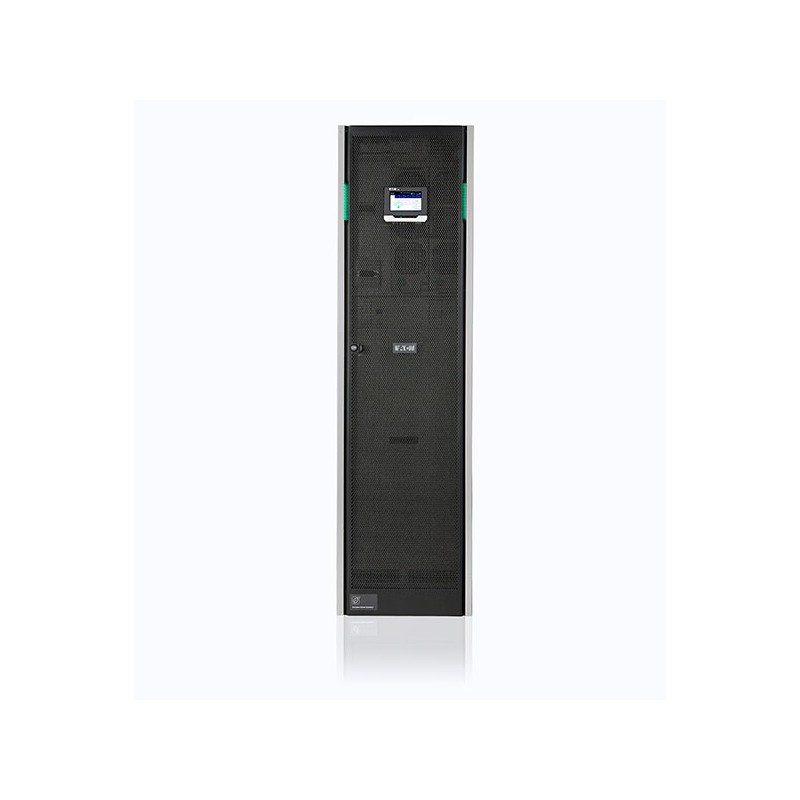

Eaton 93PS
93PS, 40kW (Up To 40kW), 4x 9Ah, IP20, Double Conversion
£16,167.97
£13,473.31 Ex. VAT
93PS, 40kW (Up To 40kW), 4x 9Ah, IP20, Double Conversion
