The Eaton 9PX Marine is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS. Energy Star qualified, the 9PX Marine provides the highest efficiency level to reduce energy and cooling costs.
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Automatic battery test | Y |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2\nIEC/EN 62040 -2, FCC Class B, CISPR22 Class B\nDNV-GL / CE /CB (TUV) / cULus / EAC /RCM / KC |
| Colour of product | Grey |
| Depth | 485 mm |
| Display | LCD |
| Efficiency | 98 % |
| Energy Star certified | Y |
| Form factor | Rackmount/Tower |
| Height | 130 mm |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 176 V |
| LED indicators | Y |
| Noise level | 40 dB |
| Operating temperature (T-T) | 0 - 40 °C |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Output power | 3000 W |
| Power factor | 1 |
| Power plug | C20 coupler |
| Power supply input frequency | 40/70 Hz |
| Rack capacity | 3U |
| RS-232 ports | 1 |
| Serial interface type | RS-232 |
| USB port | Y |
| Weight | 27400 g |
| Width | 440 mm |
| Output power capacity | 3000 VA |
| UPS topology | Double-conversion (Online) |
| Serial interface | Y |
Specific References
- EAN13
- 0743172081667

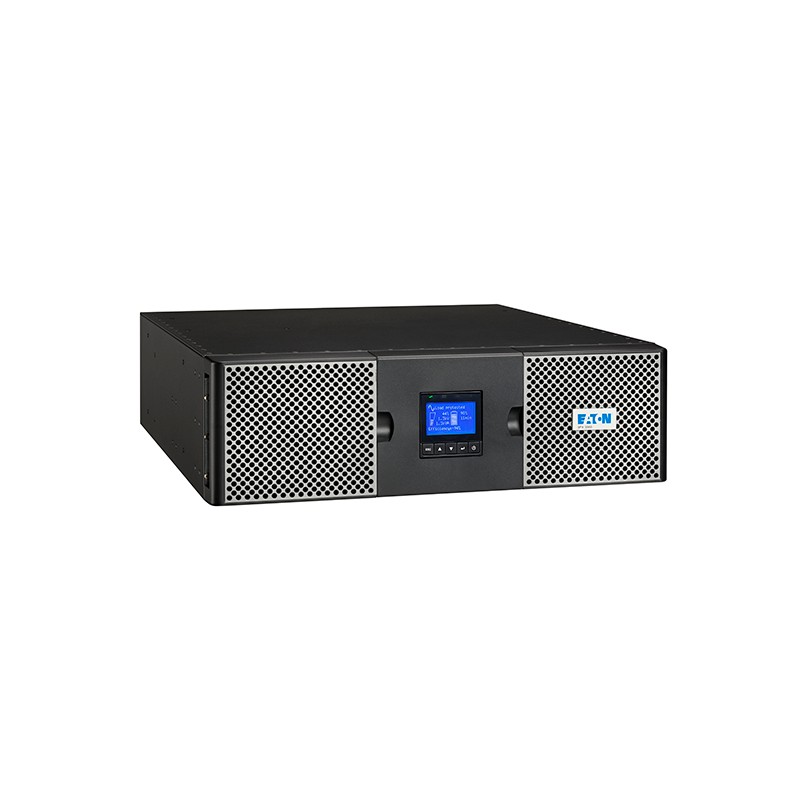

Eaton 9PX3000IRTM
3000VA, 3000W, C20 In, 8 x C13 & 2 x C19 Out
£4,759.23
£3,966.02 Ex. VAT
3000VA, 3000W, C20 In, 8 x C13 & 2 x C19 Out
