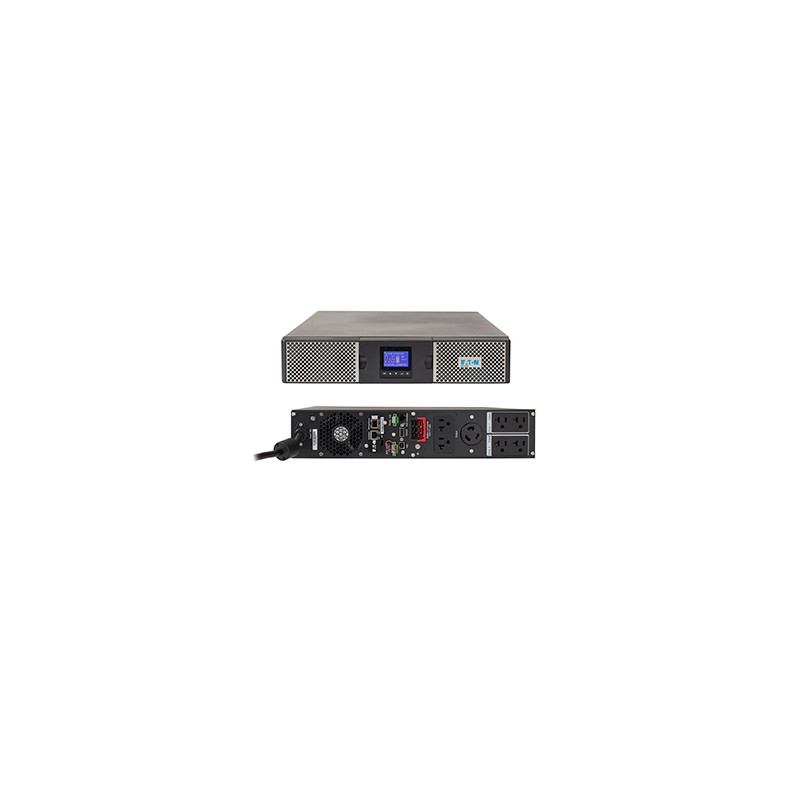

Eaton 9PX 2000RT | Eaton UPS & Power Backup
  • Eaton 9PX 2000RT | Eaton UPS & Power Backup
  • Eaton 9PX 2000RT | Eaton UPS & Power Backup
  • Eaton 9PX 2000RT | Eaton UPS & Power Backup
  • Eaton 9PX 2000RT | Eaton UPS & Power Backup
Business continuity for edge computing



When you need flexible protection for equipment in IT racks, network closets and mission-critical applications, look no further than the Eaton® 9PX UPS. Providing solutions that are reliable,

versatile, powerful and efficient, the 9PX integrates seamlessly

into just about any environment.

With double-conversion topology for constant power conditioning and ENERGY STAR qualification, the 9PX supports your overall goal of business continuity. It’s also built for scalable deployment and features a graphical LCD interface that enables local access to configurations and settings, history and diagnostics, energy consumption and load segment control.



Take a closer look



As a stand-alone, online double-conversion UPS, 9PX rack/ tower (RT) models can withstand harsh electrical environments for a variety of critical applications including IT, edge networks, industrial automation, healthcare and K-12. For edge networks and on-premise installations, Eaton focuses on integration within the virtualized environment. This means you can improve your infrastructure performance through virtual machine (VM) centric management, disaster recovery and validated integration capabilities.



The right 9PX solution may also include a software client that supports 2N (or N+1) UPS-protected graceful shutdown, a maintenance bypass to keep loads running during UPS replacement, or a rack to organize all of your IT equipment and cabling. It’s all about ensuring seamless integration and compatibility.
AC outlet types NEMA 5–20R,NEMA L5-20R
AC outlets quantity 7 AC outlet(s)
Auto-restart Yes
Battery technology Sealed Lead Acid (VRLA)
Cable length 2.44 m
Cables included RS-232,USB cable
Certification CE, cULus, NOM
Cold start Yes
Colour of product Black,Silver
Depth 605 mm
Display LCD
Efficiency 91 %
Energy Star certified Yes
Form factor Rackmount/Tower
Height 86.5 mm
Hot-swap battery Yes
Input current THD 3 %
Input operation voltage (max) 144 V
Input operation voltage (min) 100 V
LED indicators Status
Manual Yes
Noise level 47 dB
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 96 %
Operating temperature (T-T) 0 - 40 °C
Output frequency 50/60 Hz
Output operation voltage (max) 125 V
Output operation voltage (min) 100 V
Output power 1800 W
Output voltage THD 3 %
Package type box
Power plug NEMA 5-20P
Power supply input frequency 50/60 Hz
Rack capacity 2u
RoHS compliance Yes
RS-232 ports 1
Serial interface type RS-232
Storage relative humidity (H-H) 0 - 96 %
Storage temperature (T-T) 0 - 35 °C
Surge protection Yes
Surge protection features Network
USB 2.0 ports quantity 1
USB port Yes
Waveform Sine
Web-based management Yes
Weight 27900 g
Width 440 mm
Output power capacity 2000 VA
UPS topology Double-conversion (Online)
Serial interface Yes
Bracket Yes

Specific References

EAN13
0743172081278

9PX2000RT.pdf

Eaton 9PX 2000RT Data Sheet

Eaton 9PX 2000RT

Eaton 9PX UPS, 2U, Double-Conversion, 2000VA/1800W, 100-144V/120V, 50/60Hz, USB, RS-232, 47dB, 1x NEMA 5-20P, 6x NEMA 5-20R, 1x NEMA L5-20R, LCD, 27.9kg, Black/Silver
In Stock
£2,515.02
£2,095.85 Ex. VAT
Reference: 9PX2000RT
