The HPE 5900 Switch Series are low-latency 1/10GbE data center top-of-rack (ToR) switches. Perfect for deployment at server access layer in large and medium sized enterprises. These switches may also be used in campus core/distribution layers where higher performance 40GbE connectivity is required with 10GbE links. Virtualized applications and server-to-server traffic require ToR switches that meet the needs for higher-performance server connectivity, convergence, virtual environment support, and low-latency. Optional Intelligent Management Center (IMC) Software Platform for network management.
What's new
- High 1/10GbE port density and low latency for demanding applications.
- 10/100/1000/10000BASE-T and fiber support for data center deployments.
- IRF support of nine switches simplifies management by up to 88%.
- OpenFlow and SDN automate manual tasks and speed service delivery.
Features
Ultra-low-latency and Wire Speed for Demanding Applications
- The HPE FlexFabric 5900 Switch Series provides high density 10/100/1000/10000BASE-T, or fiber ports for high-performance and flexible deployments.
- All ports support full L2/L3 features, IPv4/IPv6 dual stack, OpenFlow and TRILL for high scalability and Software-defined Network (SDN) support.
- Intelligent Resilient Fabric (IRF) for simpler management, faster re-convergence and business agility.
High-Performance Data Center Switching
- The HPE FlexFabric 5900 Switch Series delivers 1.28 Tbps switching capacity for the most demanding applications.
- Supports up to 952 MPPS throughput for data intensive environments.
- Low latency, under a 1.5 us 10GbE latency, provides increased performance.
- Four 40GbE QSFP+ ports for blazing fast uplinks.
Business Agility and Resilience with Comware 7
- The HPE FlexFabric 5900 Switch Series delivers IRF < 50 msec convergence time enabling faster application response times.
- In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.
Simplicity and Lower TCO
- The HPE FlexFabric 5900 Switch Series simplifies switch management by up to 88% with IRF.
- No extra hidden cost with simple one license per switch for all OS features.
- All switch ports are active and ready to use without need for activation licenses.
- Automate tedious tasks with SDN and reclaim wasted resources.
What's new
- High 1/10GbE port density and low latency for demanding applications.
- 10/100/1000/10000BASE-T and fiber support for data center deployments.
- IRF support of nine switches simplifies management by up to 88%.
- OpenFlow and SDN automate manual tasks and speed service delivery.
Features
Ultra-low-latency and Wire Speed for Demanding Applications
- The HPE FlexFabric 5900 Switch Series provides high density 10/100/1000/10000BASE-T, or fiber ports for high-performance and flexible deployments.
- All ports support full L2/L3 features, IPv4/IPv6 dual stack, OpenFlow and TRILL for high scalability and Software-defined Network (SDN) support.
- Intelligent Resilient Fabric (IRF) for simpler management, faster re-convergence and business agility.
High-Performance Data Center Switching
- The HPE FlexFabric 5900 Switch Series delivers 1.28 Tbps switching capacity for the most demanding applications.
- Supports up to 952 MPPS throughput for data intensive environments.
- Low latency, under a 1.5 us 10GbE latency, provides increased performance.
- Four 40GbE QSFP+ ports for blazing fast uplinks.
Business Agility and Resilience with Comware 7
- The HPE FlexFabric 5900 Switch Series delivers IRF < 50 msec convergence time enabling faster application response times.
- In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.
Simplicity and Lower TCO
- The HPE FlexFabric 5900 Switch Series simplifies switch management by up to 88% with IRF.
- No extra hidden cost with simple one license per switch for all OS features.
- All switch ports are active and ready to use without need for activation licenses.
- Automate tedious tasks with SDN and reclaim wasted resources.
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Yes |
| Acoustic pressure emissions | 65.7 dB |
| Auto-sensing | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Colour of product | Grey |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 1000BASE-T,100BASE-TX,10BASE-T |
| Depth | 460 mm |
| DHCP client | Yes |
| DHCP server | Yes |
| Dimensions (WxDxH) | 439.9 x 460 x 43.7 mm |
| Electromagnetic compatibility | VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR 22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A |
| Electromagnetic immunity | ETSI EN 300 386 V1.3.3; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-2; IEC 61000-4-2; EN 61000-4-3; IEC 61000-4-3; EN 61000-4-4; IEC 61000-4-4; EN 61000-4-5; IEC 61000-4-5; EN 61000-4-6; IEC 61000-4-6; IEC 61000-4-8; EN 61000-4-8; EN 61000-4-11; IEC 6100 |
| Flash memory | 512 MB |
| Flow control support | Yes |
| Form factor | 1U |
| Full duplex | Yes |
| Heat dissipation | 887 BTU/h |
| Height | 43.7 mm |
| I/O ports | 48 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 fixed 1000/10000 SFP+ ports; 2 QSFP+ 40-GbE ports; 1 RJ-45 serial co |
| IGMP snooping | Yes |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100-240 VAC; -36 to -72 VDC (depending on power supply chosen) |
| Internal memory | 2048 MB |
| Latency | 10 Gbps Latency: < 1.5 µs (64-byte packets) |
| Latency (10 Gbps) | 1.5 µs |
| Link aggregation | Yes |
| MAC address table | 128000 entries |
| Management platform | IMC - Intelligent Management Center; command-line interface; out-of-band management; SNMP Manager; Telnet; FTP |
| Memory and processor | 512 MB flash, packet buffer size: 9 MB, 2 GB SDRAM |
| Memory type | SDRAM |
| Multicast support | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 to 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 45 °C |
| Packet buffer memory | 9 MB |
| Port mirroring | Yes |
| Power consumption (typical) | 260 W |
| Power over Ethernet (PoE) | No |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Source data-sheet | Icecat.biz |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Stackable | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 336 Gbit/s |
| Throughput | 250 Mpps |
| USB 2.0 ports quantity | 1 |
| VLAN support | Yes |
| Weight | 13000 g |
| Width | 439.9 mm |
| Installed SFP+ modules quantity | 4 |
| QSFP+ module slots quantity | 2 |
Specific References
- EAN13
- 0887111061720

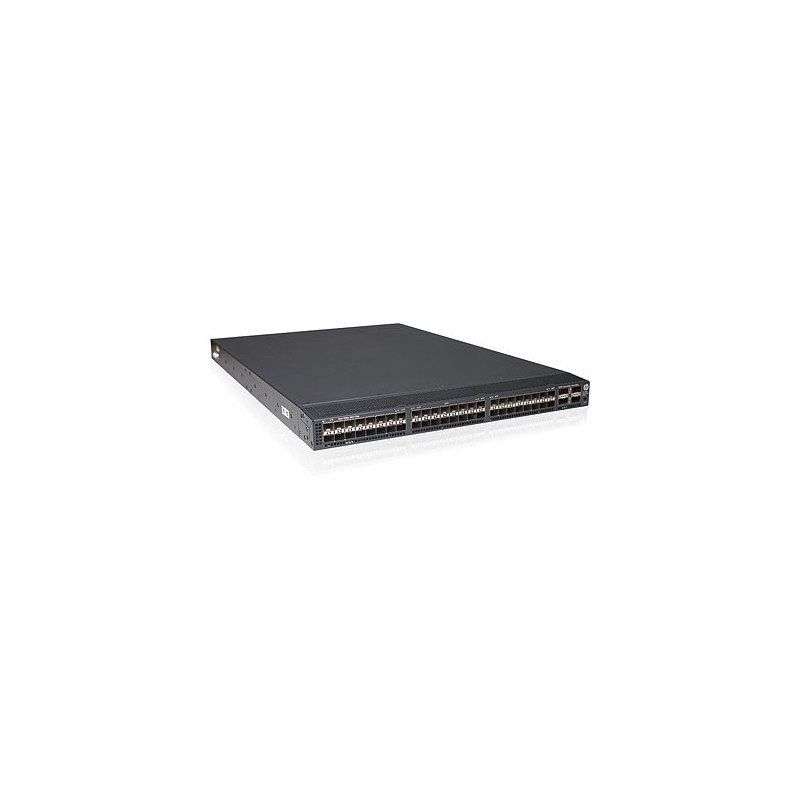

Hewlett Packard Enterprise FlexFabric 5900AF 48G 4XG 2QSFP+
FlexFabric 5900AF 48G 4XG 2QSFP+ Switch
£5,402.77
