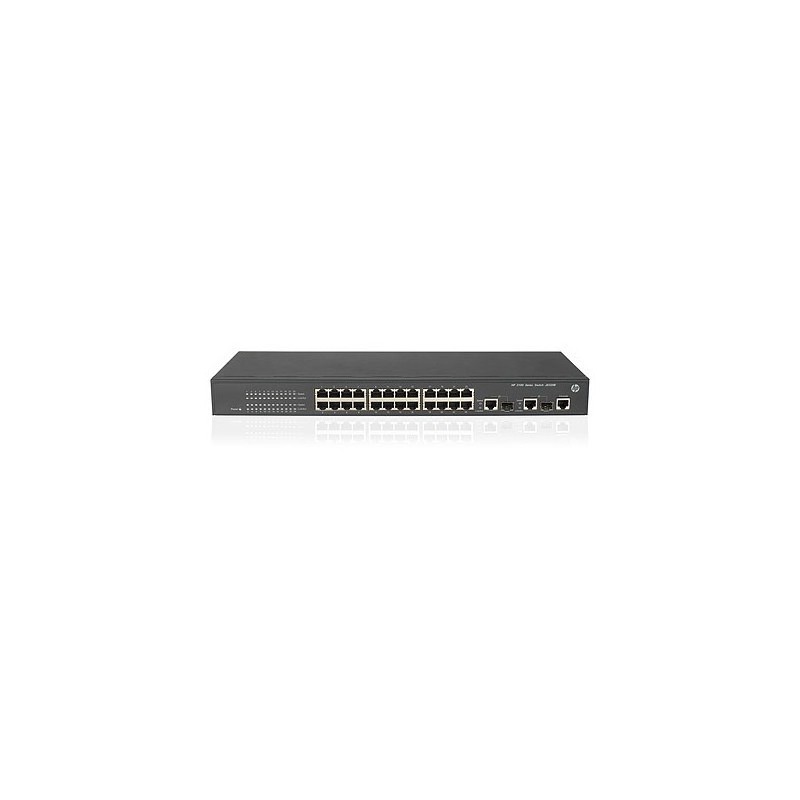

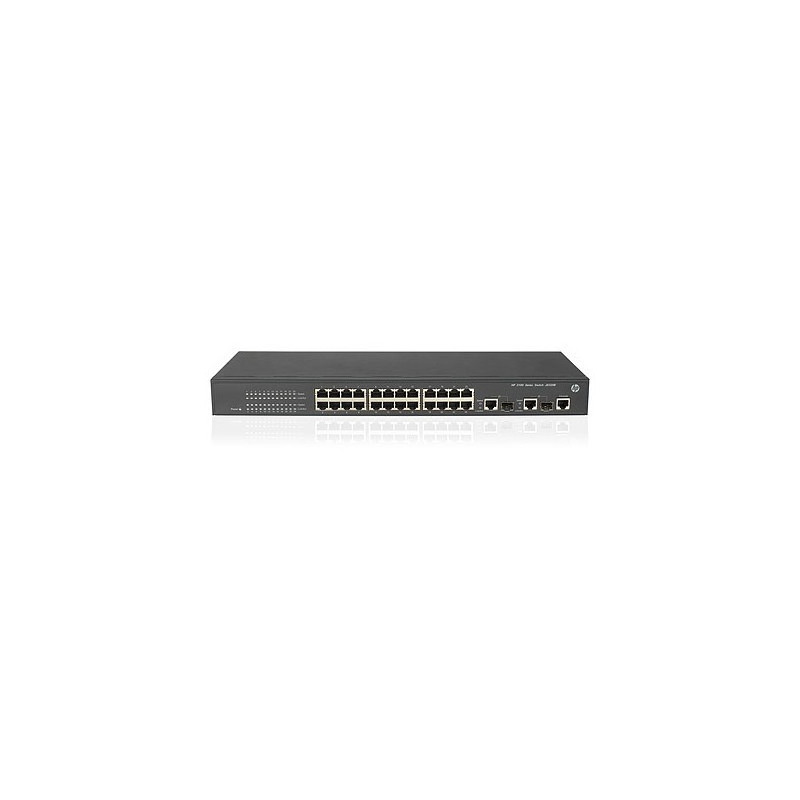

HP A 3100-24 v2 EI
HP 3100 EI series switches are Layer 2 Ethernet switches designed for enterprise networks demanding high security and intelligence. They provide 10/100 Mbps downlink and 1000 Mbps uplink Ethernet ports, and serve as access devices for 100 Mpbs-to-desktop applications in enterprise networks. In metropolitan area networks or various industry networks, they connect end users or aggregate client devices with 10/100 Mbps connections, converging at a higher capacity switch with 1000 Mbps interfaces. Features include advanced Quality of Service (QoS), rate limiting, QinQ (virtual LAN [VLAN]/VPN), SSHv2, Multicast VLAN Registration (MVR), Virtual Cable Tester (VCT), HGMP V2, GARP VLAN Registration Protocol (GVRP), access control list (ACL), media access control (MAC)-IP-port binding, Endpoint Admission Defense, voice and protocol-based VLAN, Internet Group Management Protocol snooping.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100-240 V
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
CertificationFCC part 15; VCCI; EN 55022; CISPR 22; ICES-003; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995
Colour of productGrey
Combo SFP ports quantity2
Connectivity technologyWired
Console portRS-232
DC-in jackYes
Depth440 mm
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN connectionYes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN data transfer rates10, 100, 1000 Mbit/s
Flash memory16 MB
Flow control supportYes
Full duplexYes
Heat dissipation44 BTU/h
Height43.6 mm
Internal memory128 MB
Latency6 µs
Link aggregationYes
Maximum data transfer rate1 Gbit/s
Memory typeSDRAM
Networking standardsIEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 45 °C
Operating temperature range (T-T)0 - 45 °C
Packet buffer memory0.384 MB
Power consumption (typical)13 W
Power LEDYes
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Quality of Service (QoS) supportYes
Rack mountingYes
Routing entries16
SafetyUL 60950; NOM-019-SCFI; EN 60950: 2000, ZB and ZC; IEC 60950: 1999, 2000, all; AS/NZS 60950: 2000
SFP/SFP+ slots quantity2
Spanning tree protocolYes
Supported data transfer rates10/100 Mbps
Switching capacity8.8 Gbit/s
Throughput6.5 mpps
User guideYes
Weight3500 g
Wi-FiNo
Width160 mm
Wireless LAN connectionNo

Similar products

  • Hewlett Packard Enterprise Mellanox InfiniBand QDR/FDR10 36P Switch
    Hewlett Packard Enterprise Mellanox...
  • Hewlett Packard Enterprise 8/20q
    Hewlett Packard Enterprise 8/20q
  • Hewlett Packard Enterprise B7E21A
    Hewlett Packard Enterprise B7E21A
  • Hewlett Packard Enterprise SN6000
    Hewlett Packard Enterprise SN6000
  • Hewlett Packard Enterprise MPX200
    Hewlett Packard Enterprise MPX200

Hewlett Packard Enterprise 3100-24 v2 EI

24 - Rj-45 10/100 ports, 8.8 Gbps, 6.5 million pps, 13 W, 3.5 kg

JD320B

Out of Stock

£1,532.04
£1,276.70 Ex VAT.
