Images are for illustrative purposes only.

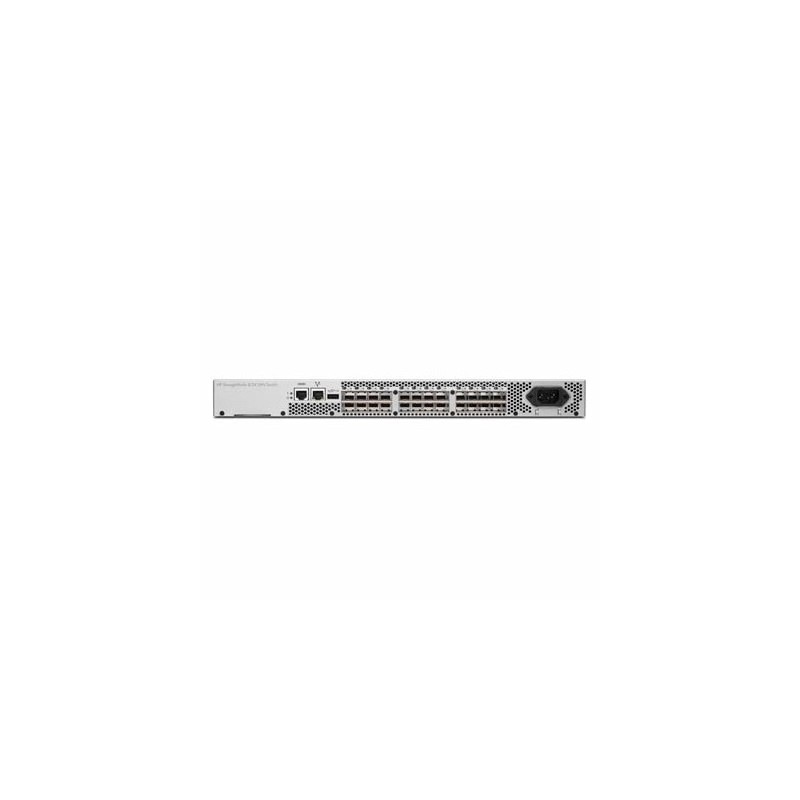

Hewlett Packard Enterprise AM868B

16 Active (24 Max) Full Fabric Ports Enabled SAN Switch, 8 Gb/s Fibre Channel, 384 Gb/s, 1U

More details

AM868B

Out of Stock

The HP 8/24 SAN switch addresses the needs of SMB organizations as well as large enterprises by functioning as a standalone ... Read More

Free tester with every 5 boxes of cable

New product

£5,292.01 Inc. VAT

£4,410.01

Checkout

  • More Info

  • Details

  • Spec Sheet

The HP 8/24 SAN switch addresses the needs of SMB organizations as well as large enterprises by functioning as a standalone core switch or as lower-cost edge switch in large core-to-edge tiered storage networks. The 8/24 SAN switches provides unprecedented investment protection. Auto-sensing ports that support backward compatibility with 1, 2, 4, and 8 Gbit/sec devices significantly reduce deployment complexity and costs, while providing compatibility with installed devices.



Organizations that do not require 8 Gbit/sec interfaces can populate the new switches with 4 Gbit/sec SFPs, while preserving their ability to easily upgrade to 8 Gbit/sec SFPs in the future. The 8/24 SAN Switch with 24 enabled ports may be deployed as a full-fabric switch or in Access Gateway mode, which provides connectivity into any SAN (the default mode setting is a switch). Access Gateway mode utilizes NPIV switch standards to present Fibre Channel connections as logical devices to SAN fabrics.



High Performance

Includes simultaneous wire-speed support for all ports to provide a high-performance system with aggregate bandwidth of up to 384 Gbit/sec full duplex.

Provides the highest performance available, with complete backward and forward investment protection.

Simplifies SAN management, negating the need to map application performance requirements to port speeds.



High Scalability

Comes with 16 enabled ports and supports “pay-as-you-grow” scalability to 24 enabled ports.

Provides seamless server connectivity to multi-vendor fabric environments, and allows a great number of servers to connect to a SAN fabric without increasing switch domain count.

Allows up to eight ports (at 2, 4, or 8 Gbit/sec speeds) between a pair of switches to be combined to form a single logical ISL with a speed of up to 64 Gbit/sec (128 Gbit/sec full duplex) for optimal bandwidth utilization and load balancing



Improved TCO

Optimizes fabric-wide performance and load balancing by automatically routing data to all available paths in the fabric.

Remove/avoid performance bottlenecks in high-density virtualized server environments.

Advanced fabric services to optimize SAN performance and resource utilization.



Investment Protection

Delivers low latency, power efficiency, and high reliability while providing a highly scalable and flexible platform for advanced fabric services.
10G supportNo
AC input frequency47/63 Hz
AC input voltage100-240 V
Basic switching RJ-45 Ethernet ports quantity6
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Colour of productGrey
Depth306.6 mm
Dimensions (WxDxH)190.5 x 406.4 x 558.8 mm
Form factor1U
Full duplexYes
Height42.9 mm
Manageability featuresB-series SAN Network Advisor. Integration with Storage Essentials
MultimediaB-series 4 Gb and 8 Gb SFPs
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 85 %
Operating temperature (T-T)0 - 40 °C
Optional softwarePower Pack+ Software, Port Upgrade, SAN Network Advisor Professional+ and Enterprise
Port speed rating8 Gbps Fibre Channel
Ports quantity16
Power consumption (typical)48 W
Power supply includedYes
Rack mountingYes
Required softwareAdvanced Fabric OS, Advanced Zoning, Web Tools
Security algorithms supportedNo
Source data-sheetIcecat.biz
Storage relative humidity (H-H)10 - 90 %
Storage temperature (T-T)-25 - 70 °C
Supported data transfer rates8 Gb/s
Switch modelsFull Fabric
Switch typeManaged
Switching capacity384 Gbit/s
Upgrade typeStandard 16 Ports; 8 Port on Demand upgrades, Upgrade from Base to Power Pack+
Weight4218 g
Width428.8 mm
EAN0887111279057
ManufacturerHP
