The ProCurve 4200vl Switch series consists of modular chassis that provide a flexible, cost-effective LAN solution as an alternative to stackables. These switches offer a proven chassis form factor with high quality and reliability in 10/100 and 10/100/1000 scalable solutions that integrate easily into any network.
| Acoustic pressure emissions | Power: 64.2, DIN 45635T.19 per ISO 7779 dB |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 96 |
| Built-in processor | PowerPC MPC8245 |
| Connectivity technology | Wired |
| Console port | RS-232 |
| Dimensions (WxDxH) | 388.6 x 442 x 222.3 mm |
| Electromagnetic compatibility | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; CISPR 22 Class A; EN 55024; IEC/EN 61000-3-2; IEC/EN 61000-3-3 |
| Electromagnetic emissions | FCC Class A; VCCI Class A; EN55022/CISPR-22 Class A; CISPR22 Class A; EN55024; IEC/EN61000-3-2; IEC/EN61000-3-3 |
| Electromagnetic immunity | EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3 |
| Flash memory | 24 MB |
| Flow control support | Yes |
| Form factor | 5U height |
| Full duplex | Yes |
| Heat dissipation | 2152 BTU/h |
| I/O ports | 4 open module slots; 96 auto-sensing 10/100 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX), Media Type: Auto-MDIX, Duplex: half or full; Supports a maximum of 192 auto-sensing 10/100 ports or 96 auto-sensing 10/100/1000 ports or 16 mini-GBIC |
| IGMP snooping | Yes |
| Input current | 8.2 / 3.8 A A |
| Input frequency | 50 / 60 Hz |
| Input voltage | 100-127 / 200-240 VAC V |
| Internal memory | 64 MB |
| Latency | Latency: < 6 µs (FIFO) |
| Link aggregation | Yes |
| Management platform | HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB |
| Management product name | HP ProCurve Manager Plus; HP ProCurve Manager (included) |
| Maximum data transfer rate | 0.1 Gbit/s |
| Memory and processor | Fabric: Motorola PowerPC MPC8245 @ 330 MHz, 24 MB flash, packet buffer size: 36 MB, 64 MB SDRAM |
| Memory type | SDRAM |
| MIB support | Repeater MIB; Ethernet Interface MIB; IEEE 802.3 Ethernet MIB |
| Mounting | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only. |
| Networking standards | EN: EN55024, IEC61000-3-2; Flicker: EN61000-3-3, IEC61000-3-3 |
| Operating altitude | 4600 m |
| Operating altitude (imperial) | up to 15000 ft. |
| Operating relative humidity range | 15 to 95 @ 104°F |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating temperature range (T-T) | 0 - 40 °C |
| Packet buffer memory | 36 MB |
| Power availability | 8.2/3.8 A |
| Power consumption (typical) | 630 W |
| Power over Ethernet (PoE) | No |
| Power requirements | 100-127 VAC/200-240 VAC; 50/60 Hz |
| Power supply slots open | 1 |
| Power supply type | 1 x J4839A |
| Processor frequency | 330 MHz |
| Rack mounting | Yes |
| Remote administration | command-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console) |
| Safety | CSA 22.2 No. 950; UL 60950; EN 60950 |
| Source data-sheet | Icecat.biz |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Stackable | Yes |
| Storage relative humidity range | 15 to 95 @ 149°F |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 70 °C |
| Supported network protocols | RFC 783 TFTP; RFC 1542 BootP; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 SNTP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; IEEE 802 |
| Supported protocols | General protocols\nHTML and telnet management\nIEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1757 RMON 4 groups: Stats, History, Alarms and Events; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 BSD |
| Switch fabric speed | 76.8 Gbps |
| Switch type | Managed |
| Switching capacity | 76.8 Gbit/s |
| Throughput | up to 48 million pps Mpps |
| Weight | 14650 g |
| Weight (imperial) | Fully loaded\n32.3 lb. lbs |
Specific References
- EAN13
- 0884420047711

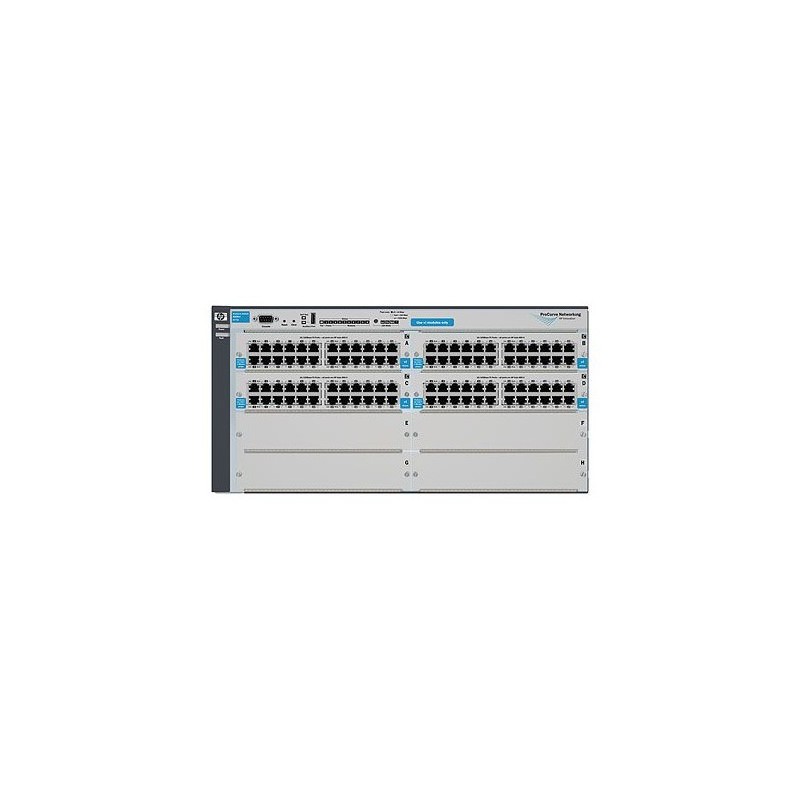

Hewlett Packard Enterprise E4208-96 vl Switch
