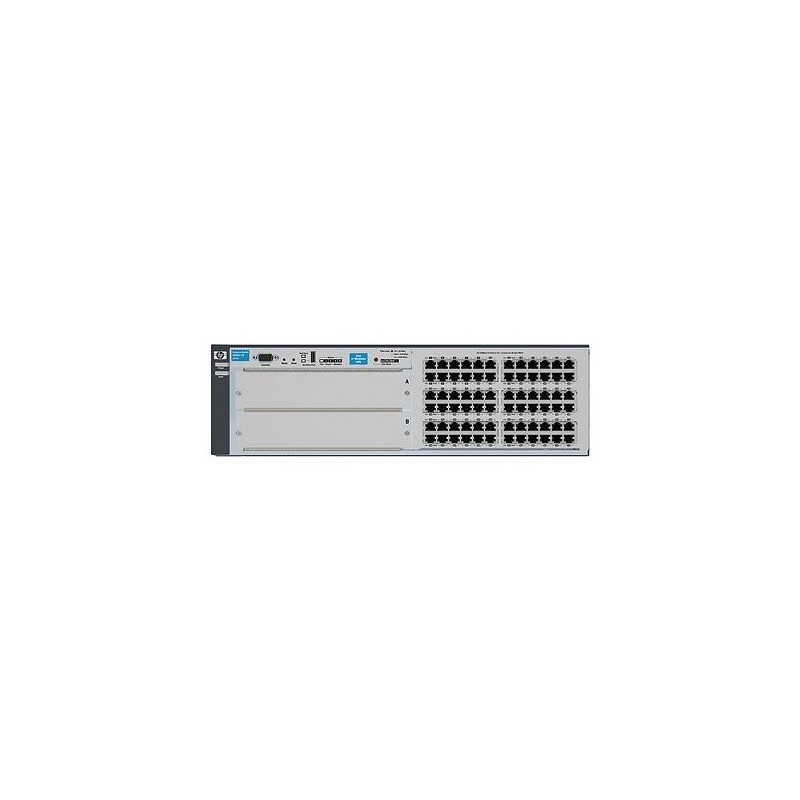

HP E4202-72 vl Switch
  • HP E4202-72 vl Switch
The HP 4200 vl Switch Series consists of modular chassis that provide a flexible, cost-effective LAN solution as an alternative to stackable switches. These switches offer a proven chassis form factor with high quality and reliability in 10/100, 10/100/1000, and 10-Gigabit scalable solutions that integrate easily into any network.

Quality of Service (QoS)


• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues



Management


• Uni-Directional Link Detection (UDLD): monitors cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops



Connectivity


• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports



Performance


• Architecture: up to 76.8 Gbps crossbar switching fabric provides wire-speed intra- and inter-module switching with up to 48 million pps throughput built on HP custom-designed ASIC technology



Resiliency and high availability


• IEEE 802.3ad Link Aggregation Control Protocol (LACP) and HP port trunking: support up to 60 trunks, each with up to eight links (ports) per trunk



Manageability


• sFlow (RFC 3176): wire-speed traffic accounting and monitoring



Layer 2 switching


• VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously

Basic switching RJ-45 Ethernet ports quantity 72
Built-in processor Motorola PowerPC MPC8245
Connectivity technology Wired
Console port RS-232
Data transfer rate 10 Mbit/s
Dimensions (WxDxH) 388.6 x 442 x 133.4 mm
Electromagnetic compatibility FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; CISPR 22 Class A; EN 55024; IEC/EN 61000-3-2; IEC/EN 61000-3-3
Electromagnetic emissions FCC Class A; VCCI Class A; EN55022/CISPR-22 Class A; CISPR22 Class A; EN55024; IEC/EN61000-3-2; IEC/EN61000-3-3
Electromagnetic immunity EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Flash memory 24 MB
I/O ports 2 open module slots; 72 auto-sensing 10/100 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX), Media Type: Auto-MDIX, Duplex: half or full; Supports a maximum of 120 auto-sensing 10/100 ports or 48 Gigabit ports or 8 mini-GBICs or 2 10-GbE port
Input current 8.2 / 3.8 A A
Input frequency 50 / 60 Hz
Input voltage 100-127 / 200-240 VAC V
Internal memory 64 MB
Latency Latency: < 6 µs (FIFO)
Management platform HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
Management product name HP ProCurve Manager Plus; HP ProCurve Manager (included)
Maximum data transfer rate 0.1 Gbit/s
Memory and processor Fabric: Motorola PowerPC MPC8245 @ 330 MHz, 24 MB flash, packet buffer size: 36 MB, 64 MB SDRAM
MIB support Repeater MIB; Ethernet Interface MIB; IEEE 802.3 Ethernet MIB
Mounting Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only.
Operating altitude (imperial) up to 15000 ft.
Operating temperature (T-T) 32 - 104 °F
Operating temperature range (T-T) 0 - 40 °C
Package weight 7190 g
Packet buffer memory 36 MB
Power consumption (typical) 630 W
Power over Ethernet (PoE) No
Power over Ethernet (PoE) support No
Power requirements 100-127 VAC/200-240 VAC; 50/60 Hz
Power supply slots open 1
Power supply type 1 x J4839A
Processor clock speed 330 MHz
Processor frequency 330 MHz
Remote administration command-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console)
Safety CSA 22.2 No. 950; UL 60950; EN 60950
Stackable No
Storage temperature (T-T) -40 - 70 °C
Storage temperature range (T-T) -40 - 70 °C
Supported network protocols RFC 783 TFTP; RFC 1542 BootP; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 SNTP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; IEEE 802
Supported protocols General protocols\nHTML and telnet management\nIEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1757 RMON 4 groups: Stats, History, Alarms and Events; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 BSD
Switch fabric speed 33.6 Gbps
Switch type Managed
Switching capacity 38.4 Gbit/s
Throughput up to 22.4 million pps Mpps
Weight 10800 g
Weight (imperial) Fully loaded\n23.81 lb. lbs

Specific References

EAN13
0884420047889

Hewlett Packard Enterprise E4202-72 vl Switch

HP 4202-72 vl Switch
Out of Stock
£2,842.66
£2,368.88 Ex. VAT
Reference: J8772B
Quantity
