Simplify your data center access architecture and operations with the Cisco Nexus® 2300 platform fabric extenders, the successors to the industry’s widely adopted Cisco Nexus 2000 Series Fabric Extenders. The Cisco Nexus 2300 platform with its Cisco® fabric extender architecture provides a highly scalable unified server-access platform across a range of connectivity options such as 100 Megabit Ethernet; 1, 10, and 40 Gigabit Ethernet; unified fabric; copper and fiber connectivity; and rack and blade server environments.



The platform offers excellent support for migration from traditional 1 Gigabit Ethernet to 10 and 40 Gigabit Ethernet and virtual machine - aware unified fabric technologies.



The Cisco Nexus 2300 platform maintains all the existing Cisco Nexus 2000 Series features, including a single point of management, high availability with virtual PortChannels (vPC), vPC+, Enhanced vPC, and LAN and SAN convergence using Fibre Channel over Ethernet (FCoE). With the addition of true 40 Gigabit Ethernet support, deep buffers to handle bursts of traffic common in today’s data center, and unified port capability (on 2348UPQ with 5600 only starting 7.3 release), the Cisco Nexus 2300 platform is suitable for highly virtualized, automated, and cloud environments.



The Cisco Nexus 2300 fabric extenders provide a 1-rack-unit (1RU) energy-efficient platform with a choice of front-to-back (port-side exhaust) and back-to-front (port-side intake) airflow options that offer 100 Megabit Ethernet; 1, 10, and 40 Gigabit Ethernet; Fibre Channel (on 2348UPQ with 5600 only starting 7.3 release); and FCoE for a broad range of traditional data center and large-scale virtualized cloud deployments.
Auto-negotiation Yes
Certification ● UL 60950-1\n● CAN/CSA-C22.2 No. 60950-1EN 60950-1\n● IEC 60950-1AS/NZS 60950-1GB4943\n● 47CFR Part 15 (CFR 47) Class A\n● AS/NZS CISPR22 Class A\n● CISPR22 Class A\n● EN55022 Class A\n● ICES003 Class A\n● VCCI Class A\n● EN
Colour of product Grey
Data transfer rate 10000 Mbit/s
Depth 433.6 mm
Ethernet LAN (RJ-45) ports 48
Ethernet LAN data rates 100,1000,10000 Mbit/s
Fiber optic connector QSFP
Fiber ports quantity 6
Flow control support Yes
Height 43.7 mm
Jumbo frames support Yes
Maximum transfer distance 3000 m
Networking standards IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3u,IEEE 802.3x
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) 32 - 131 °F
Power consumption (typical) 280 W
Quality of Service (QoS) support Yes
RoHS compliance Yes
Storage temperature (T-T) -40 - 70 °C
VLAN tagging Yes
Weight 8000 g
Width 439.4 mm

Specific References

EAN13
0882658696312

N2K-C2348TQ.pdf

Cisco Nexus 2348TQ Data Sheet

Cisco Nexus 2348TQ

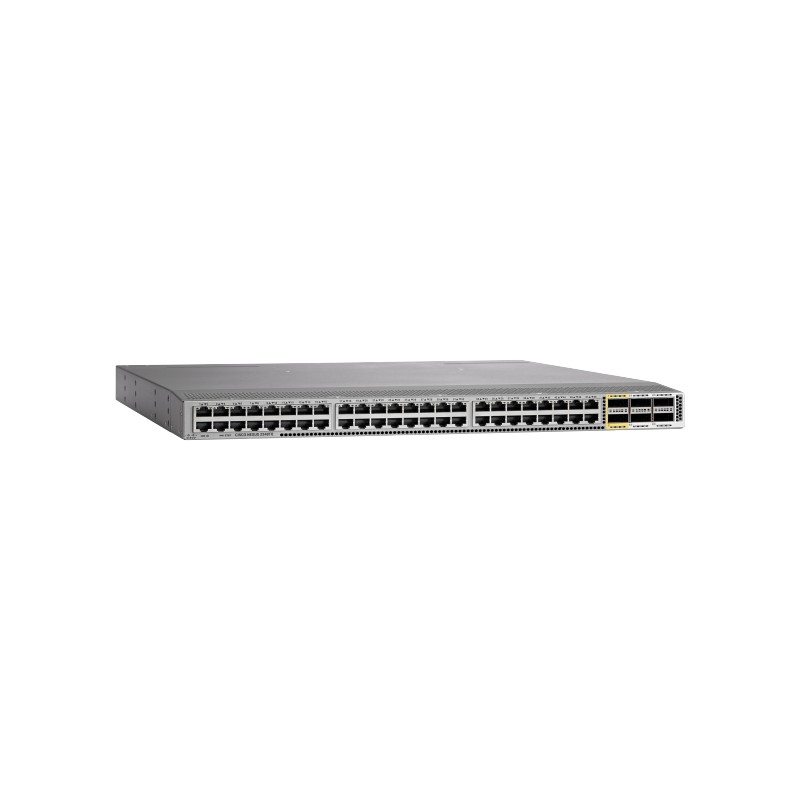

Nexus 2348TQ 10G BASE T Fabric Extender, 2PS, 3 Fan Module, 48x 100M/1/10GT (RJ45) + 6x 40G QSFP+
Out of Stock
£9,377.23
Tax excluded
Reference: N2K-C2348TQ
Quantity
