- 32 10 Gigabit Ethernet and Fibre Channel over Ethernet (FCoE) server access ports using SFP+ SR and LR optical or CX1 direct-attach copper interconnects
- 8 10 Gigabit Ethernet and FCoE uplink ports using SFP+ SR and LR optical or CX1 direct-attach copper interconnects
- Low-latency, cut-through switching, ideal for 10 Gigabit Ethernet server and pass-through blade server connectivity
- Unified fabric environments
- IEEE Data Center Bridging (DCB)
- Host PortChannel and vPC (up to 8 PortChannel members per PortChannel, with no restriction on the number of PortChannels)
- ISSU
- Highly scalable virtual modular system with up to 384 10 Gigabit Ethernet and FCoE ports
- Compact 1RU form factor
- Front-to-back cooling compatible with data center hot-aisle and cold-aisle designs, with all switch ports at the rear of the unit in close proximity to server ports
- Hardware capable of back-to-front cooling (requires new power supply and fan tray)
- Dual-redundant power supplies included in default configuration
- Hot-swappable fan trays
- All user-serviceable components accessible from the front panel
- Hardware capable of Gigabit Ethernet on all ports (requires new software)
- Operates as a remote I/O module, extending the switch fabric for Cisco Nexus 5010 and 5020 Switches
- Can be mixed and matched with different types of Cisco Nexus 2000 Series Fabric Extenders to the same parent switch to support various types of connectivity
- Zero-touch provisioning, including configuration and upgrade
- 8 10 Gigabit Ethernet and FCoE uplink ports using SFP+ SR and LR optical or CX1 direct-attach copper interconnects
- Low-latency, cut-through switching, ideal for 10 Gigabit Ethernet server and pass-through blade server connectivity
- Unified fabric environments
- IEEE Data Center Bridging (DCB)
- Host PortChannel and vPC (up to 8 PortChannel members per PortChannel, with no restriction on the number of PortChannels)
- ISSU
- Highly scalable virtual modular system with up to 384 10 Gigabit Ethernet and FCoE ports
- Compact 1RU form factor
- Front-to-back cooling compatible with data center hot-aisle and cold-aisle designs, with all switch ports at the rear of the unit in close proximity to server ports
- Hardware capable of back-to-front cooling (requires new power supply and fan tray)
- Dual-redundant power supplies included in default configuration
- Hot-swappable fan trays
- All user-serviceable components accessible from the front panel
- Hardware capable of Gigabit Ethernet on all ports (requires new software)
- Operates as a remote I/O module, extending the switch fabric for Cisco Nexus 5010 and 5020 Switches
- Can be mixed and matched with different types of Cisco Nexus 2000 Series Fabric Extenders to the same parent switch to support various types of connectivity
- Zero-touch provisioning, including configuration and upgrade
| AC input frequency | 50/60 Hz |
| AC input voltage | 90-264 V |
| Auto-negotiation | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Certification | UL 60950-1\nCAN/CSA-C22.2 No. 60950-1EN 60950-1\nEC 60950-1AS/NZS 60950-1GB4943 |
| Colour of product | Grey |
| Data transfer rate | 10000 Mbit/s |
| DC-in jack | Yes |
| Depth | 449.6 mm |
| Duplex system | Full |
| Ethernet LAN (RJ-45) ports | 32 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 8 |
| Flow control support | Yes |
| Full duplex | Yes |
| Height | 43.7 mm |
| Input current | 2.5 A |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Maximum transfer distance | 10000 m |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3u |
| On/off switch | Yes |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 32 - 104 °F |
| Output current | 20 A |
| Power consumption (max) | 270 W |
| Power consumption (typical) | 210 W |
| Quality of Service (QoS) support | Yes |
| RoHS compliance | Yes |
| Storage temperature (T-T) | -20 - 70 °C |
| VLAN tagging | Yes |
| Weight | 8300 g |
| Width | 439.4 mm |
Specific References
- EAN13
- 8826584537488

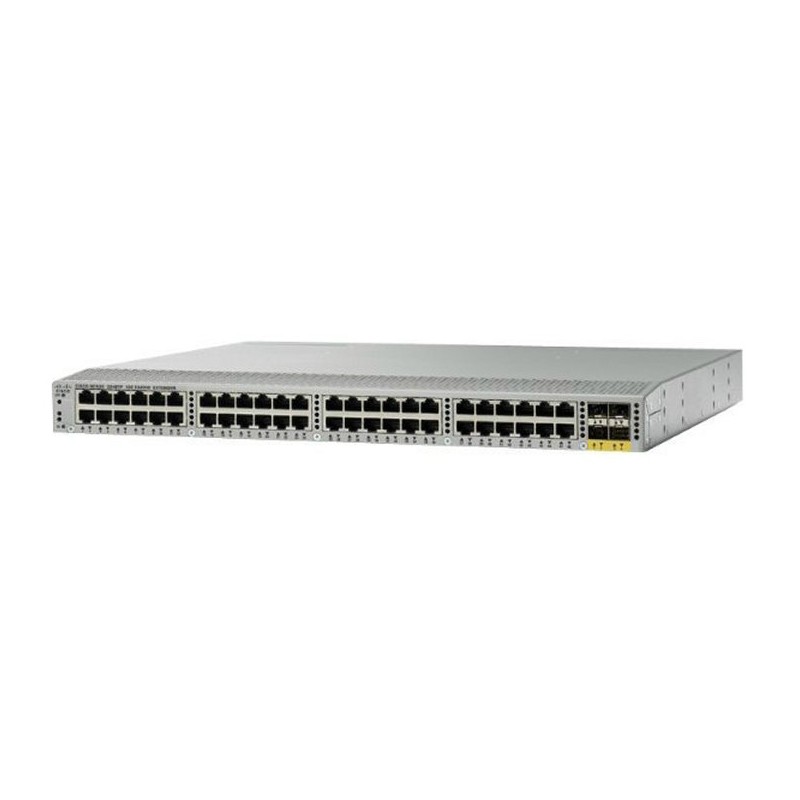

Cisco Nexus 2232PP
Nexus 2232PP - 10Gigabit Ethernet Fabric Extender, 2PS, 1 Fan Module, 32x10Gigabit Ethernet (req SFP+) + 8x10Gigabit Ethernet (req SFP+)
£9,142.82
£7,619.02 Ex. VAT
Nexus 2232PP - 10Gigabit Ethernet Fabric Extender, 2PS, 1 Fan Module, 32x10Gigabit Ethernet (req SFP+) + 8x10Gigabit Ethernet (req SFP+)
