| AC input frequency | 50/60 Hz |
| AC input voltage | 90-264 V |
| Auto-negotiation | Yes |
| Certification | UL 60950-1\nCAN/CSA-C22.2 No. 60950-1EN 60950-1\nEC 60950-1AS/NZS 60950-1GB4943 |
| Colour of product | Grey |
| Data transfer rate | 10000 Mbit/s |
| DC-in jack | Yes |
| Depth | 449.6 mm |
| Duplex system | Full |
| Ethernet LAN (RJ-45) ports | 32 |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 8 |
| Flow control support | Yes |
| Full duplex | Yes |
| Height | 43.7 mm |
| Input current | 2.15 A |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Maximum transfer distance | 10000 m |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3u |
| On/off switch | Yes |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 32 - 104 °F |
| Output current | 17 A |
| Power consumption (max) | 300 W |
| Power consumption (typical) | 210 W |
| Quality of Service (QoS) support | Yes |
| RoHS compliance | Yes |
| Storage temperature (T-T) | -20 - 70 °C |
| VLAN tagging | Yes |
| Weight | 8400 g |
| Width | 439.4 mm |
Specific References
- EAN13
- 0041778441824

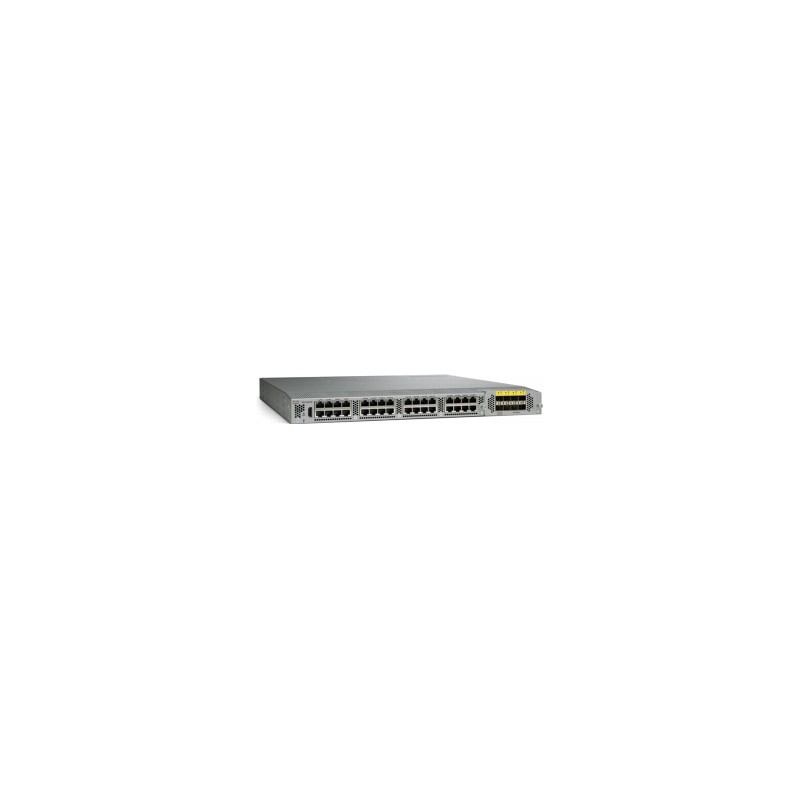

Cisco Nexus 2232TM-E
£11,955.97
£9,963.31 Ex. VAT
