Features
- One USB console controls eight Dual Link DVI or VGA computers and two additional USB 2.0 devices
- Supports both digital (DVI) and analog (VGA) video – mixed operation possible
- Cascadable to three levels – control up to 512 computers
- Multi-view feature – stack up to four CS1788 units and display video from up to four monitors (dual view / triple view / quad view)
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- OSD Backup/Restore feature – enables the administrator to back up the switch’s configuration and user profile information
- Two-level (Administrator/User) password authorization for enhanced security protection
- Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound Systems
- Console audio ports on front panel for easy access
- Multiplatform support – Windows, Linux, Mac, Sun
- Supports widescreen resolutions
- Superior video quality – 2560 x 1600 (Dual Link DVI); 2048 x 1536 (VGA); DDC2B
- Independent switching of KVM and USB focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- HDCP compatible
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese, and Spanish
- Auto Scan Mode for monitoring all computers
- Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
- Firmware upgradable
Package Contents
- 1x CS1788 8-Port USB DVI KVM Switch with Rack Mounting Kit
- 2x Custom USB DVI-D Dual Link KVM Cable Sets
- 1x Firmware Upgrade Cable
- 1x Power Adapter
- 1x Foot Pad Set (4 pcs)
- 1x User Instructions
- One USB console controls eight Dual Link DVI or VGA computers and two additional USB 2.0 devices
- Supports both digital (DVI) and analog (VGA) video – mixed operation possible
- Cascadable to three levels – control up to 512 computers
- Multi-view feature – stack up to four CS1788 units and display video from up to four monitors (dual view / triple view / quad view)
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- OSD Backup/Restore feature – enables the administrator to back up the switch’s configuration and user profile information
- Two-level (Administrator/User) password authorization for enhanced security protection
- Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound Systems
- Console audio ports on front panel for easy access
- Multiplatform support – Windows, Linux, Mac, Sun
- Supports widescreen resolutions
- Superior video quality – 2560 x 1600 (Dual Link DVI); 2048 x 1536 (VGA); DDC2B
- Independent switching of KVM and USB focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- HDCP compatible
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese, and Spanish
- Auto Scan Mode for monitoring all computers
- Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
- Firmware upgradable
Package Contents
- 1x CS1788 8-Port USB DVI KVM Switch with Rack Mounting Kit
- 2x Custom USB DVI-D Dual Link KVM Cable Sets
- 1x Firmware Upgrade Cable
- 1x Power Adapter
- 1x Foot Pad Set (4 pcs)
- 1x User Instructions
| AC adapter included | Yes |
| Built-in display | No |
| Cables included | USB |
| Colour of product | Black |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Depth | 437.2 mm |
| Ethernet LAN | No |
| Ethernet LAN connection | No |
| Height | 44 mm |
| Keyboard port type | USB |
| LED indicators | Yes |
| Maximum analog resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 2560 x 1600 pixels |
| Maximum resolution | 2560 x 1600 pixels |
| Mouse port type | USB |
| Number of computers controlled | 8 |
| On Screen Display (OSD) | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating temperature range (T-T) | 0 - 50 °C |
| Power consumption (typical) | 6.47 W |
| Source data-sheet | Icecat.biz |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage temperature range (T-T) | -20 - 60 °C |
| Video port type | VGA/DVI-I |
| Weight | 2800 g |
| Width | 161.1 mm |
Specific References
- EAN13
- 4710423778443

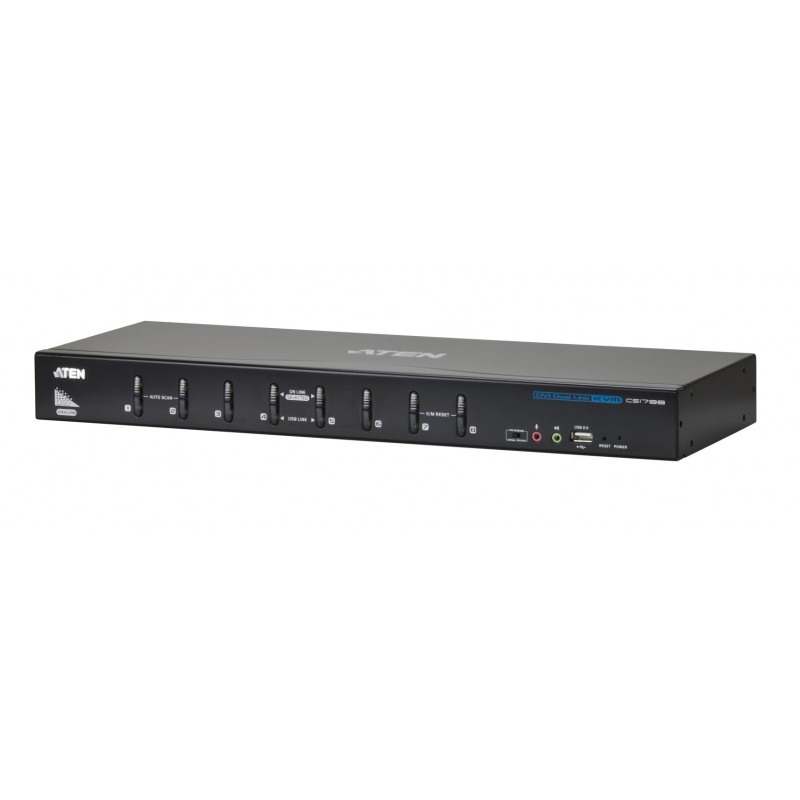

Aten CS1788
8-Port USB DVI Dual Link KVM Switch with Audio
£1,021.72
£851.44 Ex. VAT
8-Port USB DVI Dual Link KVM Switch with Audio
