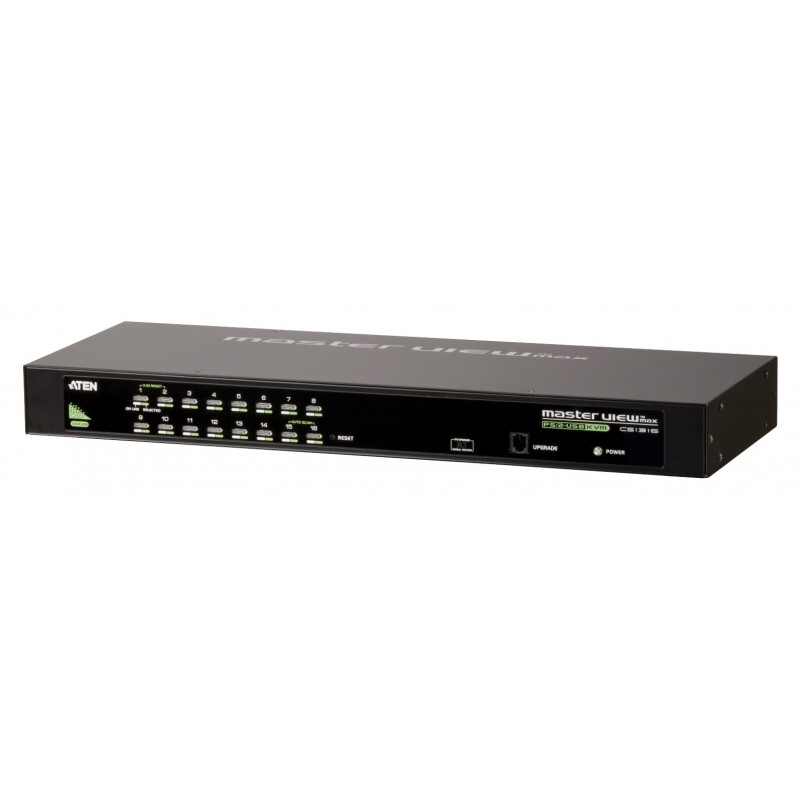

Aten CS1316 16-Port PS/2 - USB KVM Switch
  • Aten CS1316 16-Port PS/2 - USB KVM Switch
  • Aten CS1316 16-Port PS/2 - USB KVM Switch
  • Aten CS1316 16-Port PS/2 - USB KVM Switch
Features



- One USB-PS/2 console controls 16 computers

- Cascade up to 2 levels* - control up to 256 computers

- Dual Interface - supports computers with PS/2 or USB keyboards and mice

- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun

- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

- Auto PS/2 and USB interface detection

- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere

- Superior video quality - up to 2048 x 1536; DDC2B

- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu

- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each

- Auto Scan feature for monitoring user-selected computers

- Hot pluggable - add or remove computers without having to power down the switch

- Buzzer on/off via hotkey and OSD

- Firmware upgradeable

- No software installation required

- Designed for desktop or rack mount (19" system rack, 1U)



*Cascade function only works with USB KVM cable set connections.



Package Contents



- 1x CS1316 KVM Switch with Rack Mount Kit

- 1x LIN5-27X6-U21G Console cable

- 1x Firmware Upgrade cable

- 1x Foot Pad set (4 pads)

- 1x 0AD6-1605-24EG Power Adapter

- 1x Mounting Kit

- 1x User Instructions
AC input voltage 5.3 V
Audio connections No
Built-in display No
Colour of product Black
Compatible operating systems Windows 2000/XP/Vista/7
Linux
Mac
Sun
Connectivity technology Wired
DC-in jack Yes
Dimensions (WxDxH) 160 x 433 x 44 mm
External power adapter Yes
Keyboard port type PS/2
LED indicators Yes
Maximum resolution 2048 x 1536 pixels
Mouse port type PS/2
Operating temperature (T-T) 0 - 50 °C
Operating temperature range (T-T) 0 - 50 °C
Ports quantity 16
Power consumption (typical) 6.6 W
Power supply type DC
Source data-sheet Icecat.biz
Storage temperature (T-T) -20 - 60 °C
Storage temperature range (T-T) -20 - 60 °C
Video port type VGA
Weight 2100 g

Specific References

EAN13
4710423774209

Aten CS1316

16-Port USB - PS/2 VGA KVM Switch
Out of Stock
£277.32
Tax excluded
Reference: CS1316
Quantity
