Features
- One USB-PS/2 console controls up to 16 computers
- Daisy-chain up to 31 additional units - control up to 512 computers from a single console
- Front accessible USB port allows each computer to access USB peripherals*
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support - Windows, Linux, Mac and Sun
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast Mode - operation simultaneously performed on all selected computers... etc
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable
- Rack mountable in 19" system rack (1U)
* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
Package Contents
- 1x KVM Switch with Standard Rack Mounting Kit
- 1x 2L-5202P PS/2 KVM Cable
- 1x 2L-5202U USB KVM Cable
- 1x LIN5-27X6-U21G Console Cable
- 1x Firmware Upgrade Cable
- 1x Foot Pad Set(4 PCS)
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
- One USB-PS/2 console controls up to 16 computers
- Daisy-chain up to 31 additional units - control up to 512 computers from a single console
- Front accessible USB port allows each computer to access USB peripherals*
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support - Windows, Linux, Mac and Sun
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast Mode - operation simultaneously performed on all selected computers... etc
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable
- Rack mountable in 19" system rack (1U)
* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
Package Contents
- 1x KVM Switch with Standard Rack Mounting Kit
- 1x 2L-5202P PS/2 KVM Cable
- 1x 2L-5202U USB KVM Cable
- 1x LIN5-27X6-U21G Console Cable
- 1x Firmware Upgrade Cable
- 1x Foot Pad Set(4 PCS)
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
| Audio connections | No |
| Built-in display | No |
| Colour of product | Black |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Depth | 160 mm |
| Ethernet LAN | No |
| Ethernet LAN connection | No |
| Height | 44 mm |
| I/O ports | 1 x RJ-11 |
| Keyboard port type | No |
| LED indicators | Power |
| Manual | Yes |
| Material | Metal |
| Maximum resolution | 2048 x 1536 pixels |
| Mouse port type | No |
| Number of computers controlled | 16 |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating relative humidity range | 0 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating temperature range (T-T) | 0 - 50 °C |
| Power consumption (typical) | 6.6 W |
| Power requirements | DC 5.3 V |
| Rack mounting | Yes |
| RoHS compliance | Yes |
| Scan interval | 255 s |
| Source data-sheet | Icecat.biz |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage temperature range (T-T) | -20 - 60 °C |
| USB 2.0 ports quantity | 1 |
| Video port type | VGA |
| Weight | 2850 g |
| Width | 433 mm |
Specific References
- EAN13
- 4710423775329

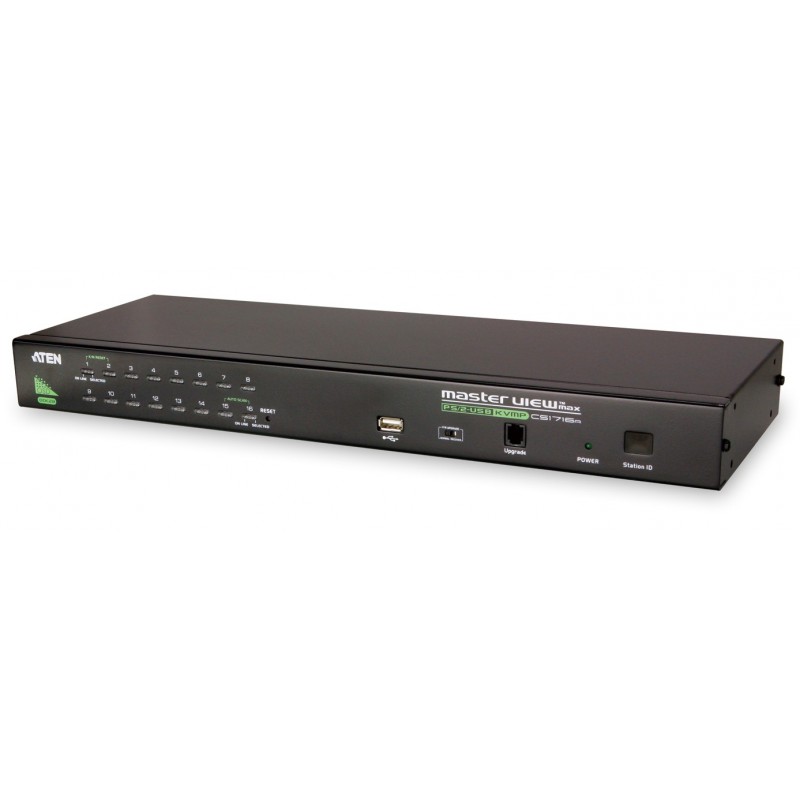

Aten CS1716A
16-Port USB - PS/2 VGA KVM Switch with USB Peripheral port
£487.66
£406.38 Ex. VAT
16-Port USB - PS/2 VGA KVM Switch with USB Peripheral port
