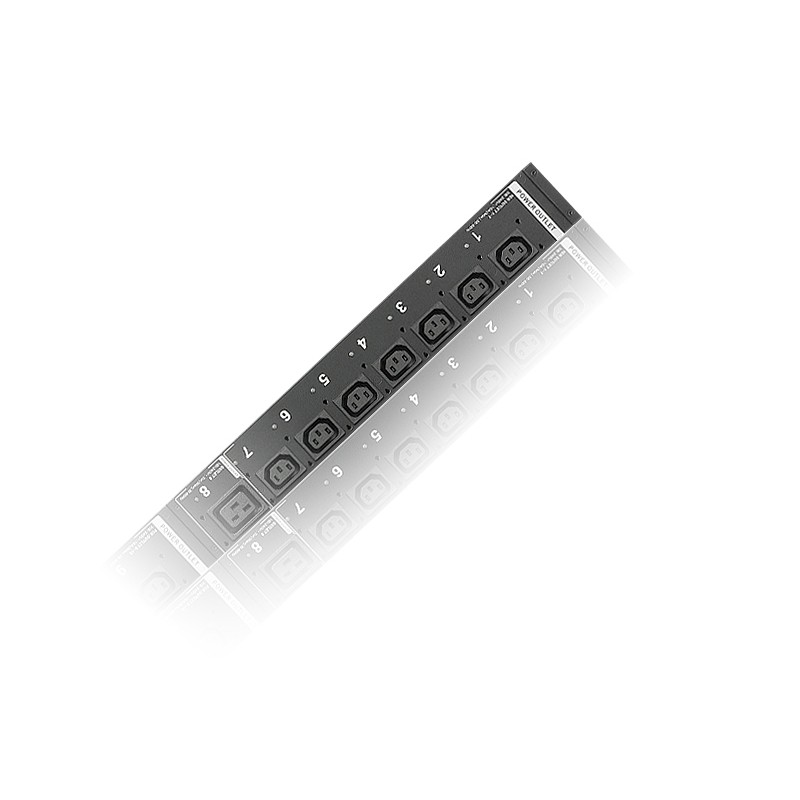

Aten PE6324LG 24AC outlet(s) 0U Black power distribution unit (PDU)
  • Aten PE6324LG 24AC outlet(s) 0U Black power distribution unit (PDU)
  • Aten PE6324LG 24AC outlet(s) 0U Black power distribution unit (PDU)
  • Aten PE6324LG 24AC outlet(s) 0U Black power distribution unit (PDU)
  • Aten PE6324LG 24AC outlet(s) 0U Black power distribution unit (PDU)
The NRGence PE6324L eco PDUs are low profile intelligent PDUs that contain 24 AC outlets and are available in various IEC or NEMA socket configurations. The low profile series has a smaller input region on the PDU to provide more installation space for data centers.



The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off.



NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
AC outlet types C13 coupler,C19 coupler
AC outlets quantity 24 AC outlet(s)
Cable length 1.6 m
Certification CE, CE-LVD
Colour of product Black
Dimensions (WxDxH) 66 x 44 x 1775 mm
Ethernet LAN (RJ-45) ports 1
Input frequency 50/60 Hz
LED indicators Y
Load capacity 7360 VA
Manual Y
Material Metal
Maximum current 32 A
Monitoring Humidity,Power,Temperature
Mounting vertical
Nominal input voltage 100-240 V
Nominal output voltage 100-240 V
Operating relative humidity (H-H) 0 - 80 %
Operating temperature (T-T) 0 - 40 °C
Package depth 170 mm
Package dimensions (WxDxH) 210 x 170 x 1890 mm
Package height 1890 mm
Package weight 10200 g
Package width 210 mm
PDU types Metered,Switched
Power plug IEC 60309
Power protection features Overload
Rack mounting 0U
RoHS compliance Y
Storage temperature (T-T) -20 - 60 °C
Supported network protocols TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2&V3, Telnet
Type Single-phase
Weight 6200 g

PE6324LG.pdf

Aten PE6324LG Data Sheet

Aten PE6324LG

30A/32A 24-Outlet Metered & Switched Low Profile eco PDU
Out of Stock
£934.80
£779.00 Ex. VAT
