- 1U 8-Outlet eco PDU

- Bank level metering



ATEN has developed a new generation of green energy power distribution units (PDUs) to effectively increase the efficiency of data center power usage. The PE5208 eco PDUs are intelligent PDUs that contain 8 AC outlets and are available in various IEC or NEMA socket configurations. They provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.



eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device or outlet level, from practically any location via a TCP/IP connection.



eco PDU supports any 3rd party v3 SNMP Manager Software and eco Sensors (Energy Management Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With eco Sensors, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.



With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.
AC outlet types C13 coupler,C19 coupler
AC outlets quantity 8 AC outlet(s)
Cable length 3 m
Certification CE, TUV-CB, CE-LVD
Colour of product Black
Dimensions (WxDxH) 220.4 x 432.4 x 44 mm
Input frequency 50/60 Hz
LED indicators Yes
Management platform SNMP V1,V2&V3
Material Metal
Maximum current 16 A
Monitoring Humidity,Temperature
Nominal input voltage 100-240 V
Nominal output voltage 100-240 V
Operating relative humidity (H-H) 0 - 80 %
Operating temperature (T-T) 0 - 50 °C
Outlet control Turn on
Output connections 7 x IEC320 C13 + 1 x IEC320 C19
Packaging content 1x PE5208 eco PDU, 1x Mounting Kit, 1x Power Cord, 1x CD-ROM (Manual, eco Sensors Software), 1x User Instructions
PDU types Metered,Monitored
Power plug C20 coupler
Rack mounting 1U
Storage temperature (T-T) -20 - 60 °C
Weight 2710 g

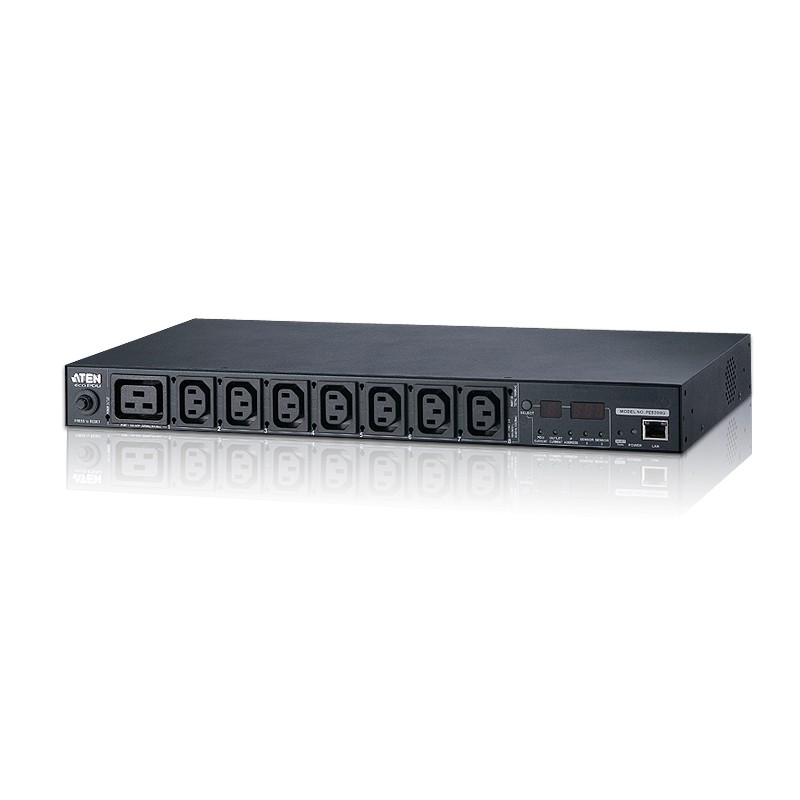

Aten PE5208G

Metered, monitored, 7 x IEC320 C13 + 1 x IEC320 C19, 1 U, 100- 240 V, 16 A, 3 m, 2.71 kg
Out of Stock
£545.66
£454.72 Ex. VAT
Reference: PE5208G
