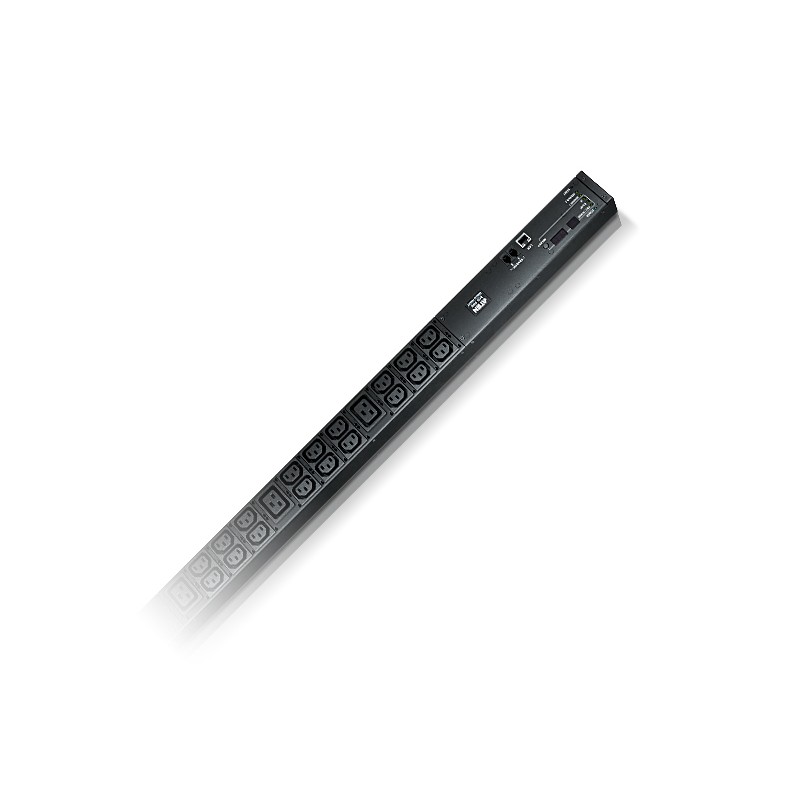

Aten PE5221T 21AC outlet(s) 0U Black power distribution unit (PDU)
  • Aten PE5221T 21AC outlet(s) 0U Black power distribution unit (PDU)
  • Aten PE5221T 21AC outlet(s) 0U Black power distribution unit (PDU)
  • Aten PE5221T 21AC outlet(s) 0U Black power distribution unit (PDU)
The ATEN NRGence™ PE5221T eco PDUs are thin form factor intelligent PDUs that contain 21 AC outlets available in IEC or NEMA socket configurations. The lightweight thin form factor eco PDUs have a smaller width and input region than ATEN’s standard and low profile PDUs. The thin form factor series have a 56 mm width that fits tight into server racks providing more space for cooling and maintenance. The smaller design leaves 8% more space in the rack to increase air flow and cool IT equipment more effectively. It also means faster maintenance with easier access to equipment normally installed behind the PDU.



NRGence™ eco PDUs offer real-time power measurement and threshold alerts – allowing you to monitor the PDU’s power status, bank status and circuit breakers, either at the PDU or from any location via a TCP/IP connection.



With the combination of ATEN eco PDUs and eco Sensors Energy Management software, a data center is equipped with real-time monitoring, measurement and analysis of energy consumption – with reports of power usage, PUE, RCI and RTI to meet the ISO 50001 requirements. These indexes will automatically generate customized reports about your data center’s energy use and include energy saving suggestions. The suggestions allow you to optimize energy usage and save money without harming your IT equipment’s reliability. eco Sensors Energy Management software provides easy multi-PDU management with an intuitive user-friendly interface that allows you to configure PDUs and monitor the power status of equipment connected to them.
AC outlet types C13 coupler,C19 coupler
AC outlets quantity 21 AC outlet(s)
Cable length 3 m
Cables included AC
Certification CE, FCC, J55022\nCE-LVD, PSE
Colour of product Black
Dimensions (WxDxH) 56 x 902 x 48 mm
Ethernet LAN (RJ-45) ports 1
Input frequency 50/60 Hz
LED indicators Y
Load capacity 3680 VA
Manual Y
Maximum current 16 A
Maximum input current per phase 16 A
Mounting vertical
Nominal input voltage 100-240 V
Nominal output voltage 100-240 V
Operating relative humidity (H-H) 0 - 80 %
Operating temperature (T-T) 0 - 40 °C
PDU types Metered
Rack mounting 0U
RoHS compliance Y
Supported network protocols TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, SNMP V1,V2&V3
Type Single-phase
Weight 2340 g

PE5221T.pdf

Aten PE5221T Data Sheet

Aten PE5221T

16A 21-Outlet Metered Thin Form Factor eco PDU
Out of Stock
£441.95
£368.29 Ex. VAT
Reference: PE5221T
Quantity
