Features
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control four dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
- 1x 4-Port USB Dual-View KVMP™ Switch
- 4x 2L-5202A-1 KVM Cable (Audio/Video)
- 4x 2L-5202U USB KVM Cables
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x User Instructions
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control four dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
- 1x 4-Port USB Dual-View KVMP™ Switch
- 4x 2L-5202A-1 KVM Cable (Audio/Video)
- 4x 2L-5202U USB KVM Cables
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x User Instructions
| Case or master carton dimensions (W x D x H) | 342.9 x 520.7 x 241.3 mm |
| Colour of product | White |
| Compatible operating systems | Windows 2000, Windows XP, Windows Vista LINUX Mac Sun FreeBSD |
| Connectivity technology | Wired |
| Headphone connectivity | 1 |
| Headphone outputs | 1 |
| I/O ports | 1 x RJ11 Socket |
| Keyboard port type | USB |
| Maximum resolution | 2048 x 1536 pixels |
| Microphone in | 1 |
| Mouse port type | USB |
| Number of microphone inputs | 1 |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating temperature range (T-T) | 0 - 50 °C |
| Package depth | 101.6 mm |
| Package height | 209.55 mm |
| Package width | 342.9 mm |
| Packaging depth | 101.6 mm |
| Packaging height | 209.55 mm |
| Packaging width | 342.9 mm |
| Ports quantity | 4 |
| Power consumption (typical) | 1.25 W |
| Power requirements | DC 5V |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage temperature range (T-T) | -20 - 60 °C |
| Video port type | VGA |
Specific References
- EAN13
- 0662792151669

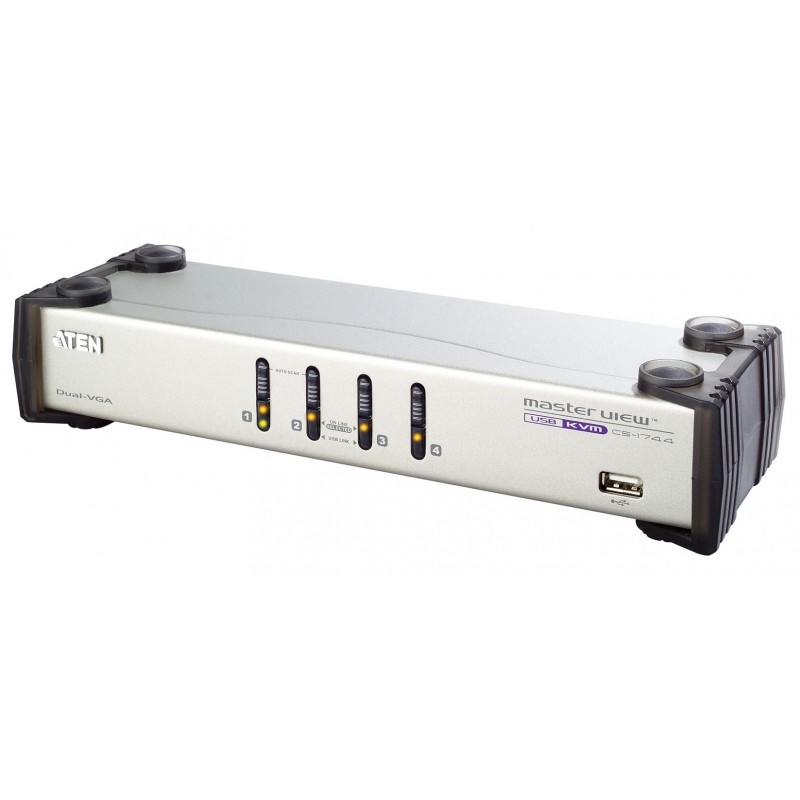

Aten CS1744
4-Port USB Dual-View VGA KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
£232.80
£194.00 Ex. VAT
4-Port USB Dual-View VGA KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
