Features
- One PS/2-USB VGA console controls two VGA interface computers.
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Multiplatform support - Windows, Linux, Mac, and Sun
- Superior video quality - 2048 x 1536; DDC2B
- Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping - supports English, Japanese, and French keyboards
- Gaming keyboard support
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
- Non-powered
* 1. PC keyboard combinations emulate Mac/Sun keyboards
* 2. Mac/Sun keyboard work only with their own computers
Package Contents
- 1x CS82U PS/2-USB KVM Switch
- 2x 2L-5302UP PS/2 USB KVM Cables
- 1x User Instructions
- One PS/2-USB VGA console controls two VGA interface computers.
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Multiplatform support - Windows, Linux, Mac, and Sun
- Superior video quality - 2048 x 1536; DDC2B
- Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping - supports English, Japanese, and French keyboards
- Gaming keyboard support
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
- Non-powered
* 1. PC keyboard combinations emulate Mac/Sun keyboards
* 2. Mac/Sun keyboard work only with their own computers
Package Contents
- 1x CS82U PS/2-USB KVM Switch
- 2x 2L-5302UP PS/2 USB KVM Cables
- 1x User Instructions
| Audio connections | No |
| Built-in display | No |
| Cables included | KVM |
| Certification | CN ZL 99213861.2, CN ZL 01260527.1, CN ZL 02301203.X, US 6564275, US 6464197, TW 174875, TW 081926 |
| Colour of product | Black, Grey |
| Compatible operating systems | Windows, Linux, Mac, Sun |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Depth | 140 mm |
| Dimensions (WxDxH) | 87 x 140 x 55 mm |
| Display resolution at frequency | 2048 x 1536 @ 60 Hz |
| Height | 990mm |
| Keyboard port type | USB, PS/2 |
| Maximum resolution | 2048 x 1536 pixels |
| Mouse port type | USB, PS/2 |
| Number of computers controlled | 2 |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating relative humidity range | 0 - 80 % |
| Operating temperature (T-T) | 8 - 35 °C |
| Operating temperature range (T-T) | 0 - 50 °C |
| Power consumption (typical) | 1.1 W |
| Power requirements | 5VDC |
| PS/2 ports quantity | 2 |
| RoHS compliance | Yes |
| Scan interval | 20 s |
| Source data-sheet | Icecat.biz |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage temperature range (T-T) | -20 - 60 °C |
| Technical features | DDC2B |
| USB 2.0 ports quantity | 7 |
| VGA (D-Sub) ports quantity | 3 |
| Video port type | VGA |
| Weight | 540 g |
| Width | 993 mm |
Specific References
- EAN13
- 0672792800139

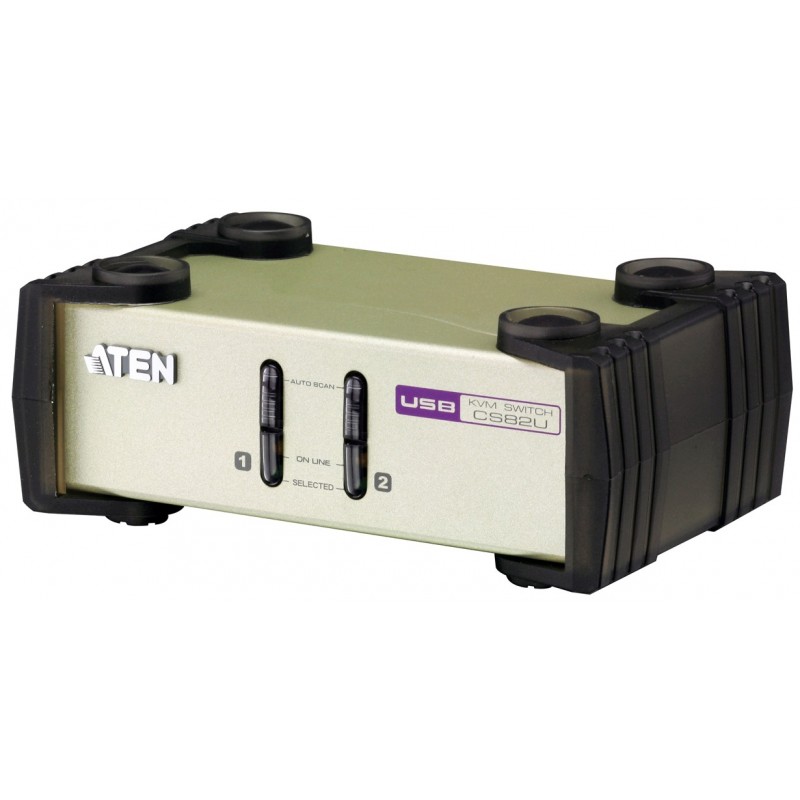

Aten CS82U
2-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
£77.34
£64.45 Ex. VAT
2-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
