Features
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
- 1x 2-Port USB Dual-View KVMP™ Switch
- 2x 2L-5202A-1 KVM Cable (Audio/Video)
- 2x 2L-5202U USB KVM Cables (USB/Video)
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x User Instructions
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
- 1x 2-Port USB Dual-View KVMP™ Switch
- 2x 2L-5202A-1 KVM Cable (Audio/Video)
- 2x 2L-5202U USB KVM Cables (USB/Video)
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x User Instructions
| Case or master carton dimensions (W x D x H) | 320.7 x 292.1 x 248.4 mm |
| Colour of product | White |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 75 x 200 x 42 mm |
| I/O ports | 2 x USB Type A Female 2 X HDB15 Female 1 x Audio 1 x Earphone Jack Female 1 x Microphone Jack Female 1 x RJ11 Socket |
| Keyboard port type | USB |
| Mouse port type | USB |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating temperature range (T-T) | 0 - 50 °C |
| Package depth | 98.4 mm |
| Package dimensions (WxDxH) | 222.2 x 98.4 x 266.7 mm |
| Package height | 266.7 mm |
| Package weight | 2176.8 g |
| Package width | 222.2 mm |
| Packaging depth | 98.4 mm |
| Packaging height | 266.7 mm |
| Packaging width | 222.2 mm |
| Ports quantity | 2 |
| Power consumption (typical) | 1.25 W |
| Power requirements | DC 5V |
| Source data-sheet | Icecat.biz |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage temperature range (T-T) | -20 - 60 °C |
| Video port type | VGA |
| Weight | 1600 g |
| Weight (imperial) | 3.5 lbs |
Specific References
- EAN13
- 4710423773080

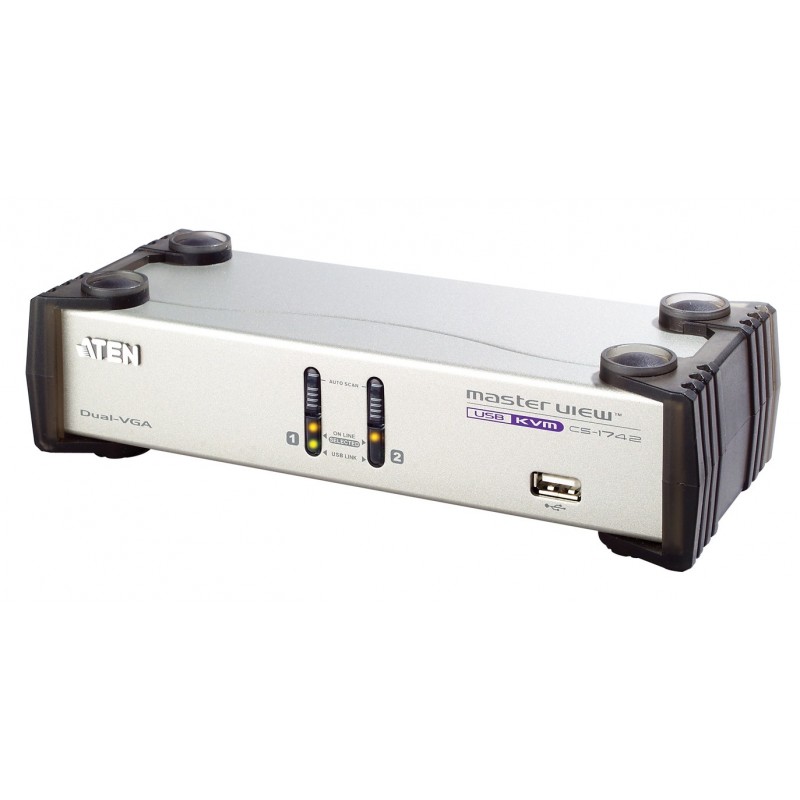

Aten CS1742
2-Port USB Dual-View VGA KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
£163.26
£136.05 Ex. VAT
2-Port USB Dual-View VGA KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
