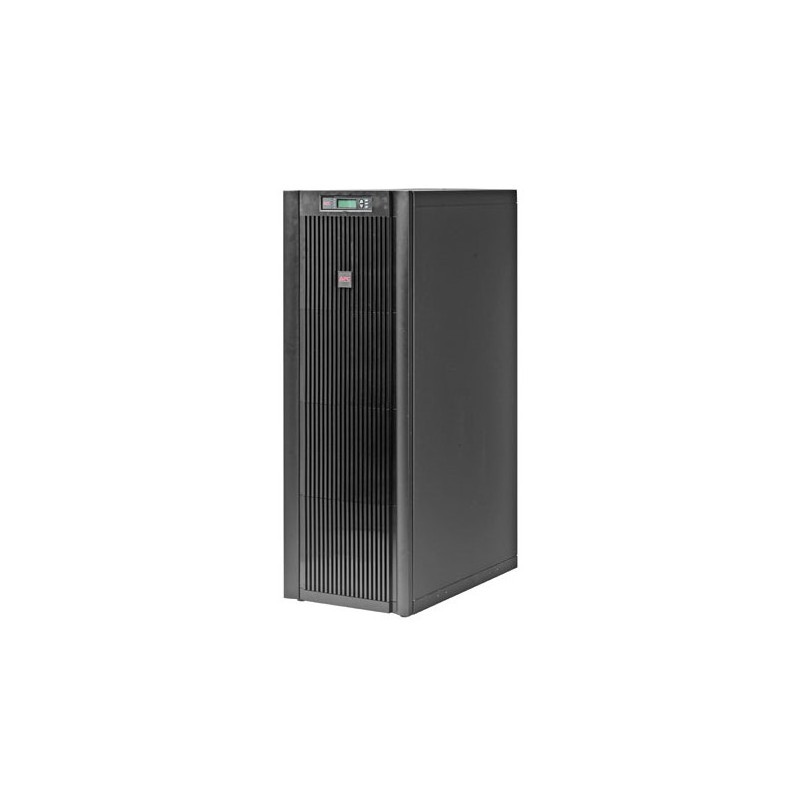

APC Smart-UPS VT, 24 kW / 30 kVA,Input 400V 3PH / Output 230V, 400V 3PH, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model.
Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Start up included, User Manual.
- Parallel-capacity capable
Increases total power capacity by using multiple UPSs simultaneously.
- Parallel-redundant capable
Power the connected equipment with multiple UPSs to increase system redundancy
Availability
- Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
- Scalable runtime
Allows additional run time to be quickly added as needed.
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
- Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Serviceability
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Battery replacement without tools
Allows quick, easy battery replacement.
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Shippable with modules installed
Enables pre-installation UPS staging and testing and faster installation.
- Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Manageability
- Network manageable
Provides remote management of the UPS over the network.
- InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
- LCD display
Alpha-Numeric Display which displays system parameters and alarms.
- Audible alarms
Provides notification of changing utility power and UPS conditions.
- Programmable frequency
Ensures compatibility with different input frequencies.
- LED status indicators
Quickly understand unit and power status with visual indicators.
- SmartSlot
Customize UPS capabilities with management cards.
Total Cost of Ownership
- Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
- Manual maintenance bypass
Reduces installation costs by eliminating the need for an external mechanical bypass.
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Protection
- Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
- Cold-start capable
Provides temporary battery power when the utility power is out.
Battery type |
VRLA |
Certification |
C-tick,CE,EN 50091-2,EN/IEC 62040-3,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-112 |
Colour of product |
Black |
Dimensions (WxDxH) |
559 x 813 x 1499 mm |
Maximum current |
41 A |
Noise level |
55 dB |
Nominal output voltage |
230 - 400 V |
Non-operating altitude |
0 - 15000 m |
Operating altitude |
0 - 999.9 m |
Operating relative humidity range |
0 - 95 % |
Operating temperature range (T-T) |
0 - 40 °C |
Output connections |
1 x Hard Wire 4-wire (3PH + G)
1 x Hard Wire 5-wire (3PH + N + G)
1 x Screw Terminals |
Output power |
24000 W |
Output power capacity (VA) |
30000 VA |
Package dimensions (WxDxH) |
650 x 1062 x 1643 mm |
Package weight |
660000 g |
Power supply input frequency |
40/70 Hz |
Source data-sheet |
Icecat.biz |
Storage relative humidity range |
0 - 95 % |
Storage temperature range (T-T) |
-15 - 45 °C |
Weight |
629090 g |
Specific References
- EAN13
- 5052179097829
