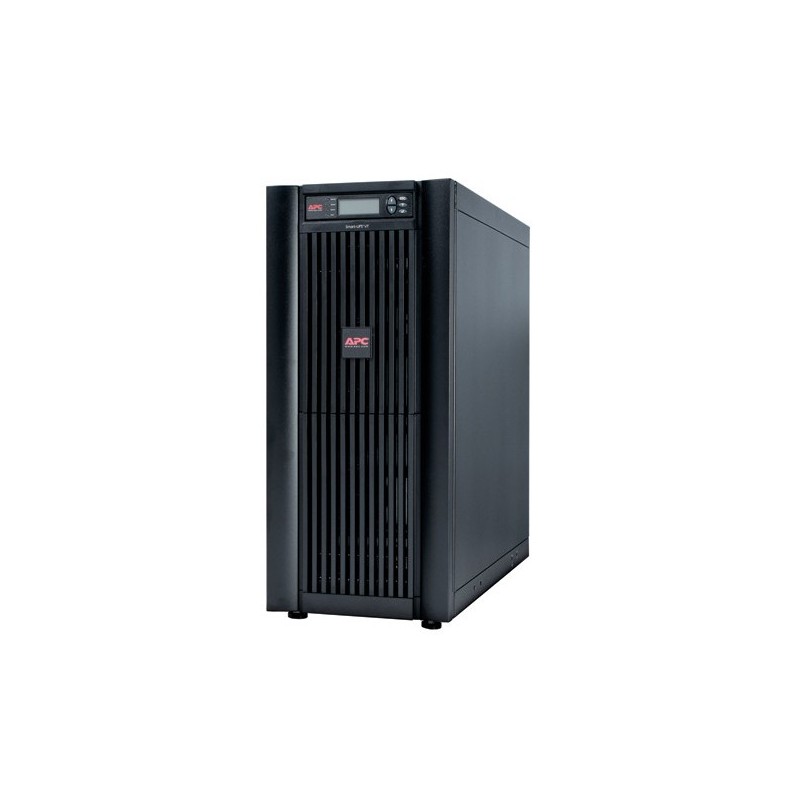

APC  Smart-UPS VT 20kVA 400V
  • APC  Smart-UPS VT 20kVA 400V
APC Smart-UPS VT, 16 kW / 20 kVA,Input 400V 3PH / Output 230V, 400V 3PH.



Includes: CD with software, Installation guide, Network Management Card, Power modules ship installed, User Manual.



- Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.

- Scalable runtime

Allows additional run time to be quickly added as needed.

- Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

- Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

- Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

- Battery modules connected in parallel

Delivers higher availability through redundant batteries.



Serviceability

- User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

- Battery replacement without tools

Allows quick, easy battery replacement.

- Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

- Shippable with modules installed

Enables pre-installation UPS staging and testing and faster installation.

- Modular design

Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.



Manageability

- Network manageable

Provides remote management of the UPS over the network.

- InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

- LCD display

Alpha-Numeric Display which displays system parameters and alarms.

- Audible alarms

Provides notification of changing utility power and UPS conditions.

- Programmable frequency

Ensures compatibility with different input frequencies.

- LED status indicators

Quickly understand unit and power status with visual indicators.

- SmartSlot

Customize UPS capabilities with management cards.



Total Cost of Ownership

- Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

- Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

- Manual maintenance bypass

Reduces installation costs by eliminating the need for an external mechanical bypass.

- Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.



Protection

- Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

- Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.

- Cold-start capable

Provides temporary battery power when the utility power is out.
Battery type VRLA
Colour of product Black
Dimensions (WxDxH) 352 x 812 x 823 mm
Nominal output voltage 230 - 400 V
Output connections 1 x Hard Wire 4-wire (3PH + G)
1 x Hard Wire 5-wire (3PH + N + G)
1 x Screw Terminals
Output power 16000 W
Output power capacity (VA) 20000 VA
Package dimensions (WxDxH) 720 x 1110 x 1290 mm
Package weight 173000 g
Power supply input frequency 47/70 Hz
Source data-sheet Icecat.biz
Weight 134000 g

Specific References

EAN13
7313042543484

APC Smart-UPS VT 20kVA 400V

Smart-UPS VT 20kVA 400V, w/Start-Up 5X8, Internal Maintenance Bypass, & Parallel Capability
Out of Stock
£7,511.22
Tax excluded
Reference: SUVTP20KHS
