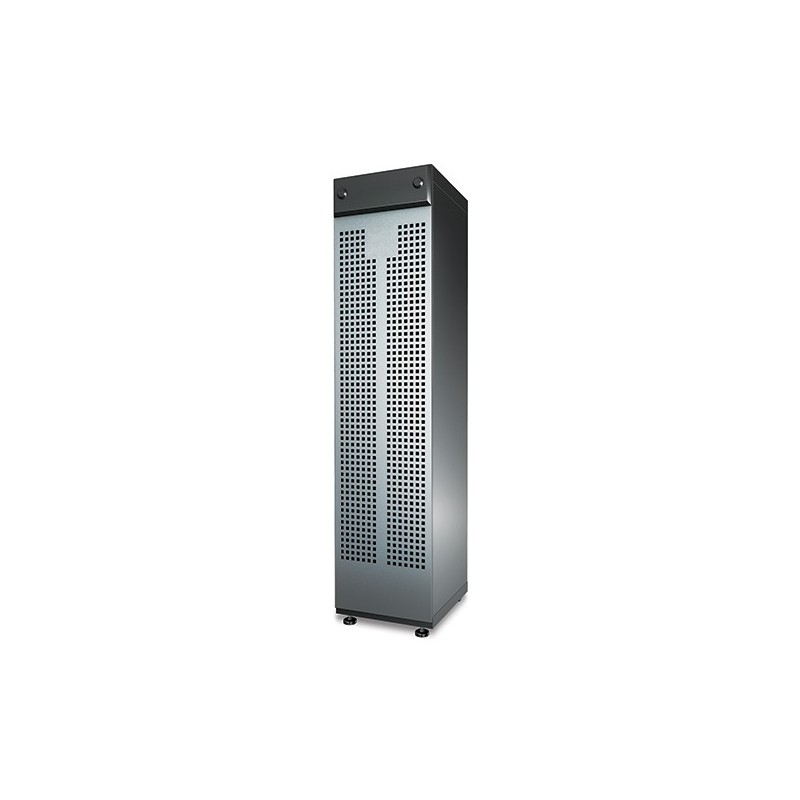

MGE Galaxy 3500 Input Transformer MCCB 480/208 10-30kVA Floormount
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Parallel-capacity capable
Increases total power capacity by using multiple UPSs simultaneously.
Advanced electrical features
Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high efficiency
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Front-access servicing
Simplifies installation and maintenance while minimizing space requirements.
User-replaceable air filters
Enables quick and simple replacement of air filters.
Battery replacement without tools
Allows quick, easy battery replacement.
Multiple levels of service
With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like APC to do for you.
7x24 telephone technical support
Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.
Built-in Web/SNMP management
Full-featured management via a Web browser as well as comprehensive management from a Network Management System.
Environmental Monitoring
Prevent equipment failure from a full range of threatening environmental conditions.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Audible alarms
Provides notification of changing utility power and UPS conditions
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Excellent footprint
Small UPS footprint provides maximum usage of valuable electrical room floorspace
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Parallel-capacity capable
Increases total power capacity by using multiple UPSs simultaneously.
Advanced electrical features
Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high efficiency
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Front-access servicing
Simplifies installation and maintenance while minimizing space requirements.
User-replaceable air filters
Enables quick and simple replacement of air filters.
Battery replacement without tools
Allows quick, easy battery replacement.
Multiple levels of service
With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like APC to do for you.
7x24 telephone technical support
Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.
Built-in Web/SNMP management
Full-featured management via a Web browser as well as comprehensive management from a Network Management System.
Environmental Monitoring
Prevent equipment failure from a full range of threatening environmental conditions.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Audible alarms
Provides notification of changing utility power and UPS conditions
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Excellent footprint
Small UPS footprint provides maximum usage of valuable electrical room floorspace
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
| Certification | CSA,CSA C22.2 No. 107.1,UL 1778 |
| Colour of product | Black |
| Depth | 838 mm |
| Display | LCD |
| Form factor | Tower |
| Height | 1486 mm |
| Management platform | Web/SNMP |
| Nominal input voltage | 480 V |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output power capacity (VA) | 30000 VA |
| Package dimensions (WxDxH) | 723 x 1104 x 1663 mm |
| Package weight | 365 kg |
| Power supply input frequency | 60 Hz |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature range (T-T) | 0 - 45 °C |
| Weight | 330.91 kg |
Specific References
- EAN13
- 0731304275022
APC MGE Galaxy 3500
480V In, 3PH, 208V Out, 10-30kVA, Floormount
£7,963.05
£6,635.88 Ex. VAT
480V In, 3PH, 208V Out, 10-30kVA, Floormount
