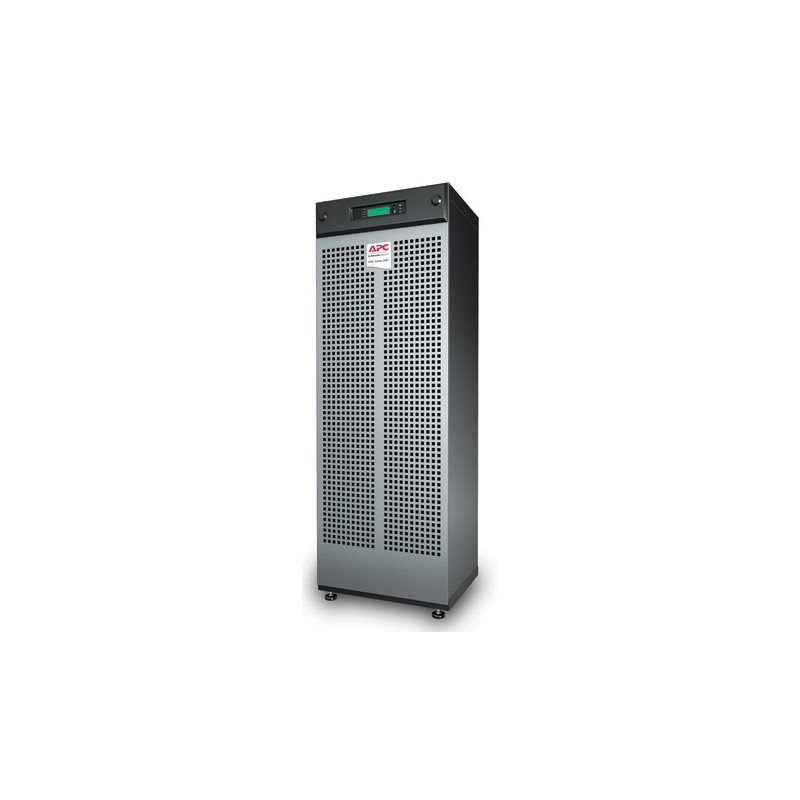

APC MGE Galaxy 3500 15kVA 400V 3:1 with 4 Battery Modules
APC MGE Galaxy 3500, 12 kW / 15 kVA,Input 400V 3PH / Output 230V, Extended runtime model.



Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start-Up Service, User Manual.



- Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.

- Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

- Parallel-redundant capable

Power the connected equipment with multiple UPSs to increase system redundancy



Availability

- Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.

- Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

- Parallel-capacity capable

Increases total power capacity by using multiple UPSs simultaneously.

- Advanced electrical features

Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high efficiency

- Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

- Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

- Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.



Manageability

- Built-in Web/SNMP management

Full-featured management via a Web browser as well as comprehensive management from a Network Management System.

- Environmental Monitoring

Prevent equipment failure from a full range of threatening environmental conditions.

- LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

- Audible alarms

Provides notification of changing utility power and UPS conditions.
Battery technologySealed Lead Acid (VRLA)
Battery typeVRLA
CertificationCE,EN 50091-2,EN/IEC 62040-3,EN/IEC 62040-1-1,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-111
Colour of productBlack
Dimensions (WxDxH)523 x 838 x 1491 mm
Input connection type5-wire (3PH + N + G)
LED indicatorsYes
Nominal input voltage400 (3PH)
Non-operating altitude0 - 15000 m
Operating altitude0 - 999.9 m
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output connections1 x 4-wire (3PH + G) 1 x 5-wire (3PH + N + G) 1 x Screw Terminals
Output power12000 W
Output power capacity (VA)15000 VA
Output voltage note+/- 5%
Package dimensions (WxDxH)650 x 1062 x 1643 mm
Package weight687000 g
Power supply input frequency40/70 Hz
Source data-sheetIcecat.biz
Storage relative humidity range0 - 95 %
Storage temperature range (T-T)-15 - 45 °C
Weight656000 g

Similar products

  • APC MGE Galaxy 3500 10kVA 400V with 2 Battery Modules
    APC MGE Galaxy 3500 10kVA 400V with 2 Battery Modules
  • APC MGE Galaxy 3500 20kVA 400V 3:1
    APC MGE Galaxy 3500 20kVA 400V 3:1
  • APC MGE Galaxy 3500
    APC MGE Galaxy 3500
  • APC MGE Galaxy 3500
    APC MGE Galaxy 3500

APC MGE Galaxy 3500 15kVA 400V 3:1 with 4 Battery Modules

MGE Galaxy 3500 15kVA 400V 3:1 with 4 Battery Modules, Start-up 5X8

G35T15K3I4B4S

Out of Stock

£10,670.70
£8,892.25 Ex VAT.
