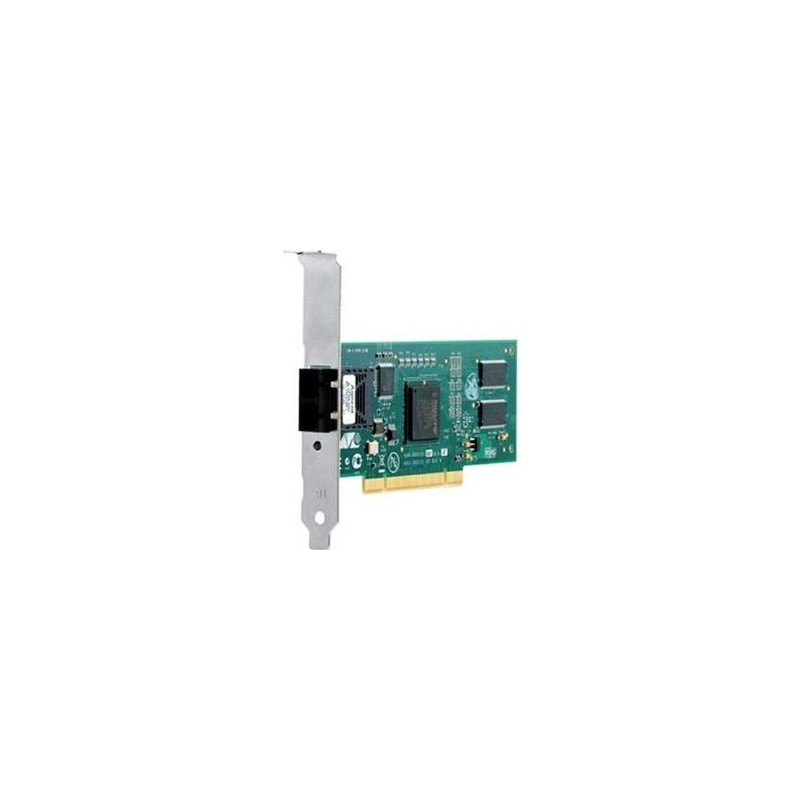

Allied Telesis AT-2911SX/SC-901 Internal Fiber 1000Mbit/s networking card
  • Allied Telesis AT-2911SX/SC-901 Internal Fiber 1000Mbit/s networking card
  • Allied Telesis AT-2911SX/SC-901 Internal Fiber 1000Mbit/s networking card
  • Allied Telesis AT-2911SX/SC-901 Internal Fiber 1000Mbit/s networking card
Allied Telesis AT-2911 Series Network Interface Cards feature a PCI Express (PCIe x1) design, providing the maximum possible bandwidth and bus efficiency while providing the benefits of low power consumption.



High Reliability

The AT-2911 Series Gigabit interface comes with a comprehensive Microsoft Windows utility which performs detailed tests, diagnostics and analysis.



Advanced Manageability

The priority queuing offered by the AT-2911 Series can help users set up the network based on their own needs. The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the interface card and check specific data.
Certification UL
FCC/EN55022 A
TUV
EN55024
CE
C-TICK
VCCI
Connectivity technology Wired
Data transfer rate (max) 1000 Mbit/s
Fiber ethernet cabling technology 1000BASE‑ZX
Fiber optic connector SC
Fiber ports quantity 1
Flow control support Y
Height 56 mm
Host interface PCI-E
Input voltage 3.3 V
Interface fiber
Internal Y
Jumbo frames support Y
LED indicators Y
Link/Act LED Y
Linux operating systems supported Y
Management protocols SNMP
Networking standards IEEE 802.1p,IEEE 802.1Q,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H) 5 - 90 %
Operating temperature (T-T) 0 - 40 °C
Power consumption (typical) 9.2 W
Quality of Service (QoS) support Y
RoHS compliance Y
Storage temperature (T-T) -25 - 70 °C
Weight 700 g
Width 87 mm
Windows operating systems supported Y

AT-2911SXSC-901.pdf

Allied Telesis AT-2911SX/SC-901 Data Sheet

Allied Telesis AT-2911SX/SC-901

1000BASE-SX Single-port Fiber NIC for PCIe x1 bus, SC connector, Federal/Government
Out of Stock
£257.84
£214.86 Ex. VAT
Reference: AT-2911SX/SC-901
Quantity
