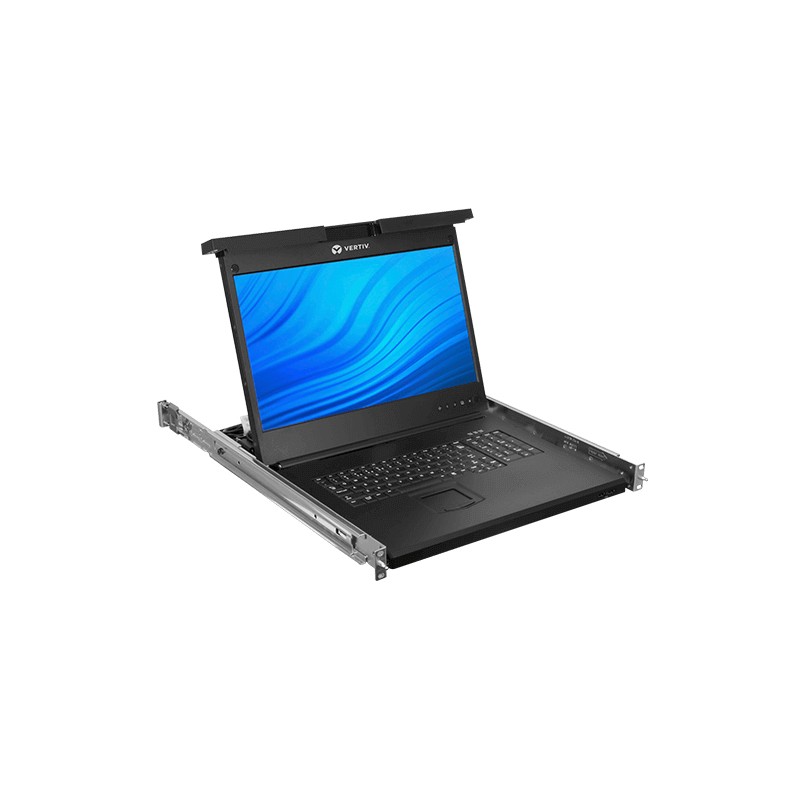

Avocent LCD Local Rack Access Console
The Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system monitoring convenient and less time-consuming.
- Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1600 x 1200 at both full screen and aspect ratio.
- Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Room for KVM installation in the same 1U space
- KVM Compatibility: LRA Consoles are compatible with all Avocent data center KVM switches
- User Interface: On-Screen menu has an intuitive design and can be accessed in 7 languages.
- Data Center Local Access: Complete entry point to local servers when needed.
- Ease of use: Full desktop style keyboard with number pad, touch pad and 2 USB 2.0 pass through ports.
The Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system monitoring convenient and less time-consuming.
- Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1600 x 1200 at both full screen and aspect ratio.
- Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Room for KVM installation in the same 1U space
- KVM Compatibility: LRA Consoles are compatible with all Avocent data center KVM switches
- User Interface: On-Screen menu has an intuitive design and can be accessed in 7 languages.
- Data Center Local Access: Complete entry point to local servers when needed.
- Ease of use: Full desktop style keyboard with number pad, touch pad and 2 USB 2.0 pass through ports.
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 90 - 264 V |
| AC adapter output voltage | 12 V |
| Aspect ratio | 1:1,16:9 |
| Built-in KVM switch | Y |
| Built-in touchpad | Y |
| Cables included | KVM |
| Certification | UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC\nFCC Class A |
| Contrast ratio (typical) | 1000:1 |
| Depth | 533.4 mm |
| Display | LED LCD |
| Display brightness | 250 cd/m² |
| Display diagonal | 19 " |
| Display resolution | 1366 x 768 pixels |
| Display type | TFT |
| Height | 44.45 mm |
| Height (in Rack Units) | 1 |
| Interface | USB |
| Keyboard language | French |
| Keyboard layout | AZERTY |
| Keyboard number of keys | 103 |
| Keyboard port type | USB |
| KVM switch ports quantity | 16 |
| LED indicators | Y |
| Material | Plastic,Steel |
| Maximum resolution | 1600 x 1200 pixels |
| Mounting depth (max) | 909 mm |
| Mounting depth (min) | 706 mm |
| Mouse port type | USB |
| Number of computers controlled | 16 |
| Number of OSD languages | 7 |
| On Screen Display (OSD) | Y |
| On/off switch | Y |
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Output current | 3.3 A |
| Package dimensions (WxDxH) | 736.6 x 584.2 x 152.4 mm |
| Package type | box |
| Package weight | 15400 g |
| Pixel pitch | 300 x 300 mm |
| Plug and Play | Y |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 17 W |
| Quick installation guide | Y |
| Rack capacity | 1U |
| Rack mount kit | Y |
| Rack mounting | Yes |
| Relative humidity | 10 - 80 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Video port type | VGA |
| Viewable size diagonal | 470.1 mm |
| Viewable size, horizontal | 409.8 mm |
| Viewable size, vertical | 230.4 mm |
| Viewing angle, horizontal | 170 ° |
| Viewing angle, vertical | 160 ° |
| Weight | 9980 g |
| Width | 482.6 mm |
| Display connection | Y |
| USB 2.0 Type-A ports quantity | 2 |
| Product colour | Black |
| Buttons | Auto,Menu |
LRA185KMM16D-204.pdf
Vertiv LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-FRA Data Sheet
Download (1.04M)Vertiv LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-FRA
LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-FRA
LRA185KMM16D-204
Out of Stock
£3,026.66
£2,522.22 Ex VAT.
