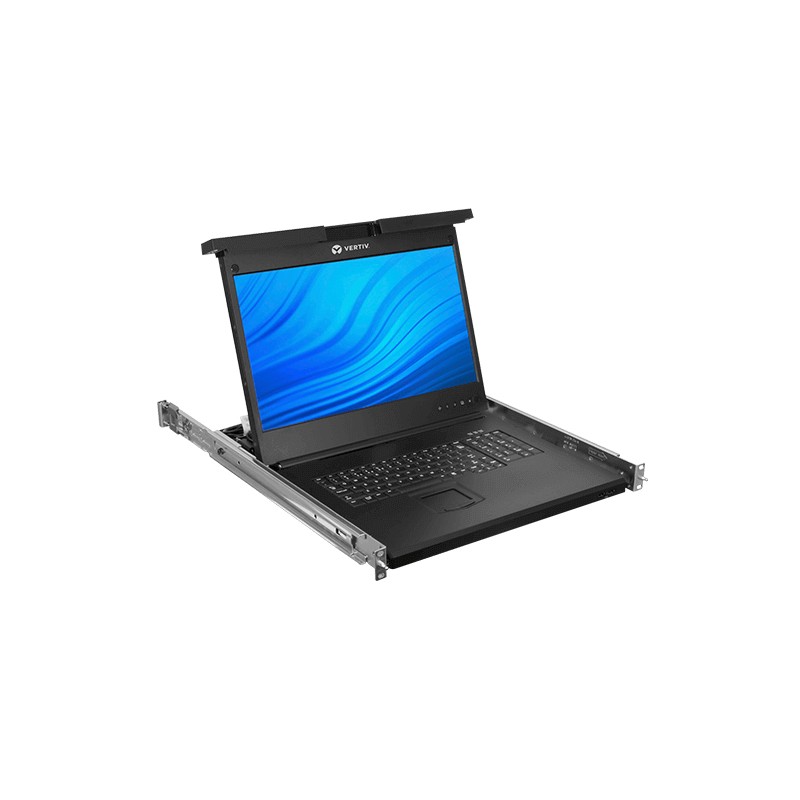

Vertiv LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-UK ENG
  • Vertiv LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-UK ENG
  • Vertiv LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-UK ENG
  • Vertiv LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-UK ENG
  • Vertiv LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-UK ENG
  • Vertiv LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-UK ENG
Avocent LCD Local Rack Access Console

The Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system mo​nitoring convenient and less time-consuming.



- Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1600 x 1200 at both full screen and aspect ratio.

- Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Room for KVM installation in the same 1U space

- KVM Compatibility: LRA Consoles are compatible with all Avocent data center KVM switches

- User Interface: On-Screen menu has an intuitive design and can be accessed in 7 languages.

- Data Center Local Access: Complete entry point to local servers when needed.

- Ease of use: Full desktop style keyboard with number pad, touch pad and 2 USB 2.0 pass through ports.
AC adapter input voltage90 - 264 V
Aspect ratio16:9
Built-in KVM switchY
Built-in touchpadY
CertificationUL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC\nFCC Class A
Colour of productBlack
Depth533.4 mm
DisplayLED LCD
Display brightness250 cd/m²
Display diagonal18.5 "
Display resolution1366 x 768 pixels
Display typeLED
Height44.45 mm
Height (in Rack Units)1
InterfaceUSB
Keyboard languageEnglish
Keyboard number of keys103
Keyboard port typeUSB
KVM switch ports quantity16
LED indicatorsY
MaterialPlastic,Steel
Maximum resolution1600 x 1200 pixels
Number of OSD languages7
On Screen Display (OSD)Y
Operating relative humidity (H-H)5 - 80 %
Operating temperature (T-T)0 - 50 °C
Package dimensions (WxDxH)736.6 x 584.2 x 152.4 mm
Package weight15400 g
Pixel pitch0.3 x 0.3 mm
Power consumption (standby)0.5 W
Power consumption (typical)17 W
Rack capacity1U
Storage temperature (T-T)-20 - 70 °C
Video port typeVGA
Viewable size diagonal470.1 mm
Viewable size, horizontal409.8 mm
Viewable size, vertical230.4 mm
Viewing angle, horizontal170 °
Viewing angle, vertical160 °
Weight9980 g
Width482.6 mm
USB 2.0 Type-A ports quantity2

LRA185KMM16D-201.pdf

Vertiv LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-UK ENG Data Sheet

Download (1.04M)

Vertiv LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-UK ENG

LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-UK ENG

LRA185KMM16D-201

Out of Stock

£2,925.76
£2,438.14 Ex VAT.
