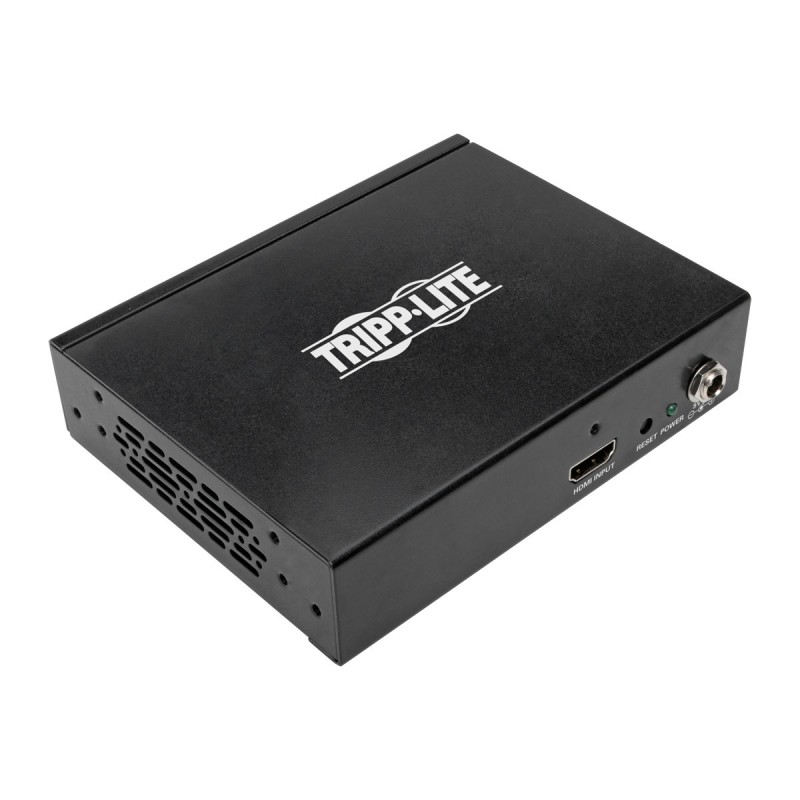

The B118-004-UHD-2 4-Port 4K 3D HDMI Splitter transmits a UHD 4K x 2K (@ 60 Hz) audio/video signal from an HDMI source, such as a Blu-ray™ player or computer, to four HDMI monitors, projectors or televisions at the same time. Ideal for classrooms, churches, offices, restaurants, bars, trade shows and anywhere else featuring 4K x 2K digital signage, the B118-004-UHD-2 is quick and simple to install with no software or drivers necessary.
Using standard 28 AWG HDMI cabling, this splitter can transmit a 4K x 2K (3840 x 2160) signal up to 4 meters. It supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound, as well as 36-bit Deep Color (12 bits per channel). The Full 3D-compliant B118-004-UHD-2 also supports HDMI 2.0 and HDCP 2.2 to ensure its compatibility with the latest audio/video hardware.
Transmits a 4K HDMI A/V Signal to 4 HDMI Displays Simultaneously
● Recommended for 4K x 2K digital signage in classrooms, churches, offices, restaurants, bars, trade shows, etc.
● Distributes A/V signals up to 4 m when used with standard 28 AWG HDMI cable
● Maintains UHD video resolutions up to 3840 x 2160 @ 60 Hz
● HDCP 2.2, EDID and HDMI 2.0 compliant to ensure compatibility with latest A/V hardware
Supports the Most Up-To-Date Features and Formats
● Full 3D
● DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound audio
● 36-bit Deep Color (12 bits per channel)
● Video amplifier bandwidth of 600 MHz/6 Gbps per channel (18 Gbps total)
● Lip sync pass-through, xvYCC and x.vColor
Easy to Use Almost Anywhere
● Plug and play—no software or drivers required
● Supports desktop use or wall-mounting using included hardware
● Power supply includes international plug adapters (North America, Europe, U.K. and Australia)
● Transmits UHD video resolutions up to 4K x 2K @ 60 Hz
● Distributes A/V up to 4.57 m when used with 28 AWG HDMI cable
● Supports DTS-HD, Dolby® TrueHD and Dolby Digital Plus
● Compatible with HDCP 2.2, 3D, EDID and HDMI 2.0
● Plug and play—no software or drivers required
Package Includes
● B118-004-UHD-2 4-Port 4K 3D HDMI Splitter
● External power supply (Input: 100–240V, 50/60 Hz, 0.35A; Output: 5V 2A)
● International plug adapters (North America, Europe, U.K. and Australia)
● Mounting hardware
● Owner’s manual
AC adapter included |
Y |
Colour depth |
36 bit |
Colour of product |
Black |
Connector contacts plating |
Nickel |
Dolby technologies |
DTS-HD,Dolby Digital Plus,Dolby TrueHD |
HDCP |
Y |
HDMI version |
2.0 |
Input current |
5 A |
Input frequency |
50/60 Hz |
Input voltage |
100-240 V |
Output voltage |
2 V |
Supported graphics resolutions |
3840 x 2160 |
Video port type |
HDMI |
Video ports quantity |
4 |
3D |
Y |
Maximum refresh rate |
60 Hz |
Download
Tripp Lite 4-Port 4K 3D HDMI Splitter, HDMI 2.0, HDCP 2.2, Ultra HD 4K x 2K Audio/Video, 3840 x 2160 @ 60 Hz Data Sheet
Download (428.09KB)
