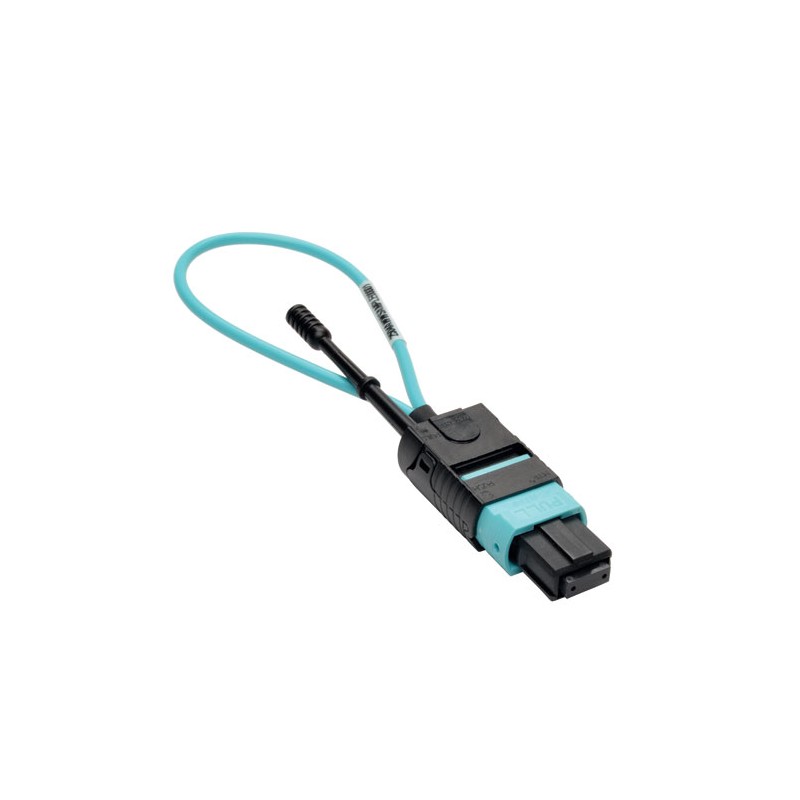

Tripp Lite N844-LOOP-12F MTP / MPO OM3 Fiber Optic Loopback Tester is typically used for test and measurement procedures in networking environments. The device is ideal for a multitude of applications that require signal looping in a MTP / MPO form factor. Features push-pull tab for easy disconnect. A dust cap is included for protection during storage.
- MTP / MPO Loopback for 40GbE QSFP+ Optical Testing
- 50/125 OM3 6-Fiber
- MTP / MPO OM3 Loopback Tester
- Push-pull tab for quick disconnect
- Protective dust cover included for protection during storage
- 4-inch overall length
- Pin config: 1 -12, 2-11, 3-10, 4-9, 5-8, 6-7
Cable type |
Multimode 50/125um, OM3 |
Colour of product |
Black,Blue |
Operating temperature (T-T) |
-20 - 60 °C |
RoHS compliance |
Yes |
Storage temperature (T-T) |
-20 - 60 °C |
Easy to use |
Yes |
Supported connectors |
MPO/MTP |
Tripp Lite MTP / MPO Fiber Optic Loopback Tester (Multimode 50/125um, OM3) - Female Data Sheet
