The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
| Depth | 14 mm |
| Height | 12 mm |
| Hot-Plug support | Y |
| Input voltage | 3.3 V |
| Interface type | SFP+ |
| Maximum data transfer rate | 25780 Mbit/s |
| Maximum operating temperature | 70 °C |
| Number of products included | 1 pc(s) |
| SFP transceiver type | fiber optic |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Wavelength | 1310 nm |
| Width | 57 mm |
| Product colour | Grey |
Specific References
- EAN13
- 8885020622355

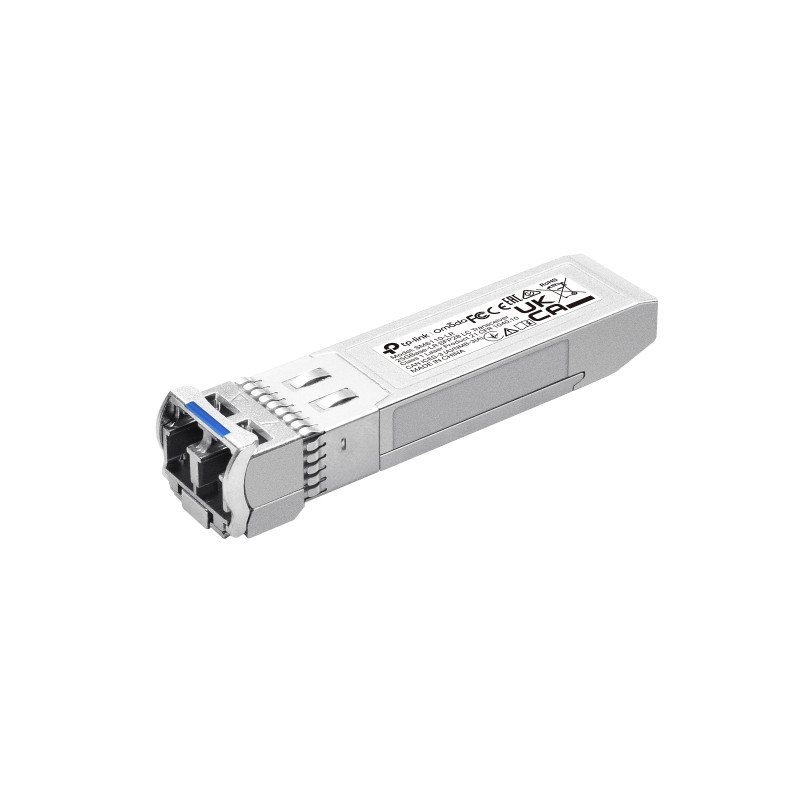

TP-Link SM6110-LR
Omada 25GBase-LR SFP28 LC Transceiver
£82.15
£68.46 Ex. VAT
Omada 25GBase-LR SFP28 LC Transceiver
