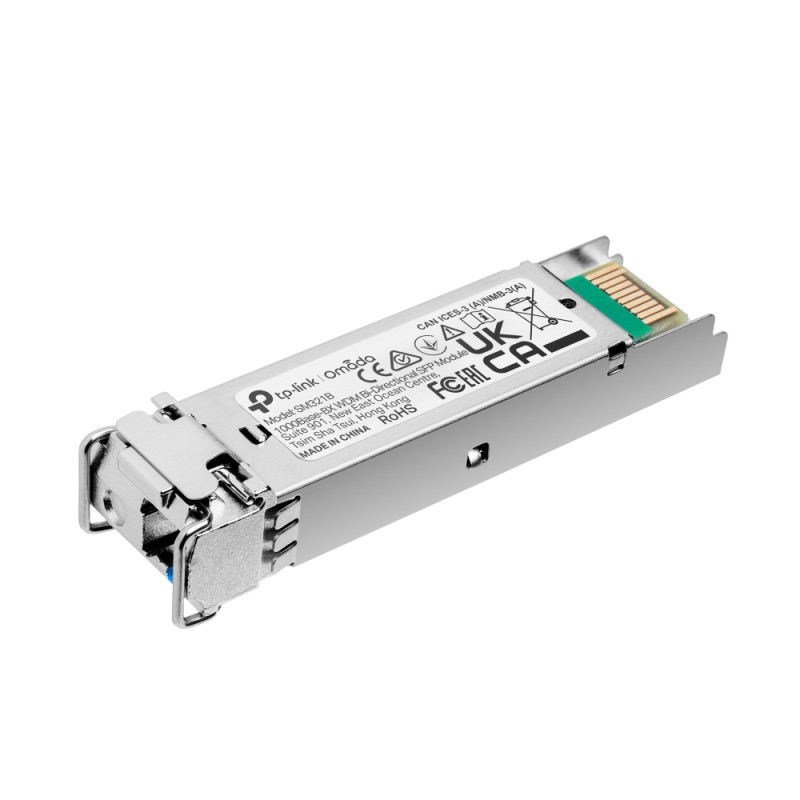

TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module
  • TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module
  • TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module
TP-Link´s SM321B (TL-SM321B) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.
Certification FCC, CE
Depth 14.6 mm
Height 12.9 mm
Hot-swap Y
Input voltage 3.3 V
Interface type SFP
Maximum data transfer rate 1250 Mbit/s
Maximum operating temperature 70 °C
Maximum transfer distance 20000 m
Number of products included 1 pc(s)
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 70 °C
SFP transceiver type fiber optic
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 85 °C
User guide Y
Width 55.4 mm
Digital Diagnostics Monitoring (DDM) Y
Tx wavelength (max) 1310 nm
Rx wavelength (max) 1550 nm
Single-mode fiber (SMF) supported Y
Product colour Silver
Fiber cable diameters supported (core/cladding) 9/125 µm

sm321b.pdf

TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module Data Sheet

TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module

1.25 Gbps, 20 km max, LC, 55.4x14.6x12.9 mm
In Stock
£16.83
Tax excluded
Reference: sm321b
Quantity
