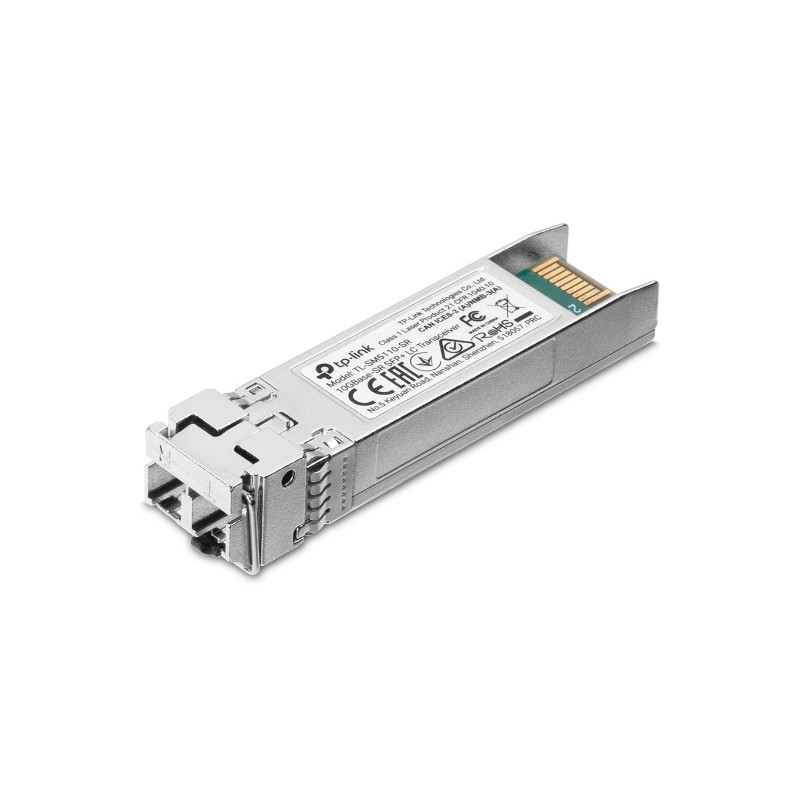

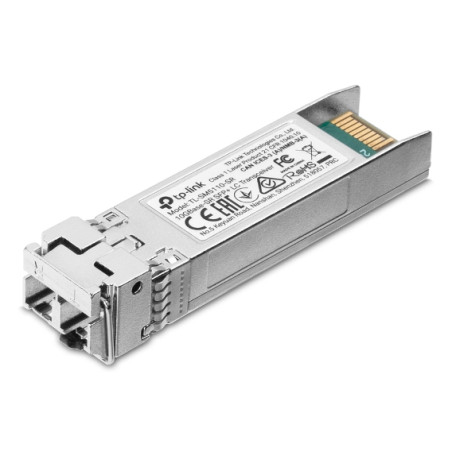

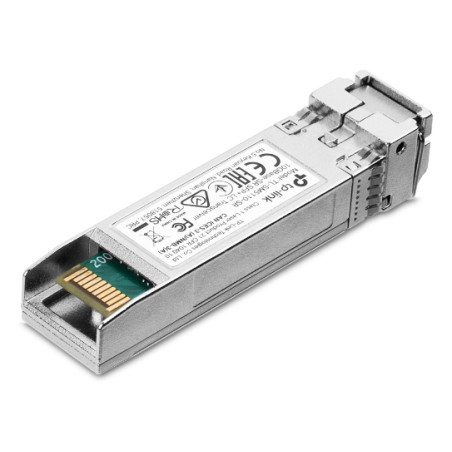

P-Link SM6110-SR
  • P-Link SM6110-SR
  • P-Link SM6110-SR
Reasons to Buy
  • Multi-mode SFP+ LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
  • Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more


Technical Headlines
  • SFP+ Fiber optic 10000 Mbit/s
  • Wavelength: 850 nm
  • Hot-swap
  • Input voltage: 3.3 V


The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Certification FCC, CE
Depth 14.5 mm
Fiber optic connector LC (UPC)
Height 12.2 mm
Hot-swap Yes
Input voltage 3.3 V
Interface type SFP+
Maximum data transfer rate 10000 Mbit/s
Maximum operating temperature 70 °C
Operating relative humidity (H-H) 10 - 90%
Quantity per pack 1 pc(s)
SFP transceiver type Fiber optic
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 80 °C
Wavelength 850 nm
Width 61.3 mm
Digital Diagnostics Monitoring (DDM) Yes
SFP transceiver standard SR
Minimum operating temperature 0 °C

Specific References

EAN13
0810142821353

TP-Link SM6110-SR

TP-Link SM6110-SR, Fiber optic, 10000 Mbit/s, SFP+, LC (UPC), SR, 850 nm
Out of Stock
£36.25
£36.25 Ex. VAT
Reference: SM6110-SR
Quantity
