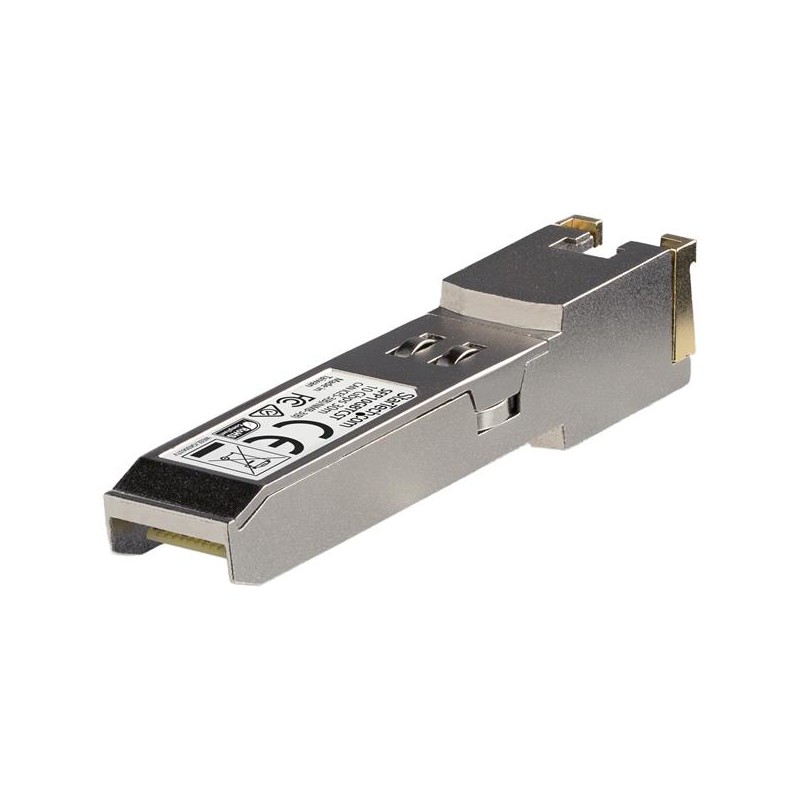

StarTech.com Cisco Compatible SFP+ Transceiver Module - 10GBASE-T
  • StarTech.com Cisco Compatible SFP+ Transceiver Module - 10GBASE-T
  • StarTech.com Cisco Compatible SFP+ Transceiver Module - 10GBASE-T
  • StarTech.com Cisco Compatible SFP+ Transceiver Module - 10GBASE-T
  • StarTech.com Cisco Compatible SFP+ Transceiver Module - 10GBASE-T
  • StarTech.com Cisco Compatible SFP+ Transceiver Module - 10GBASE-T
10Gbps | Copper | RJ45 | 30 m (100 ft) | Lifetime Warranty

The SFP10GBTCST is an Cisco compatible copper transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).

Technical Specifications:

Maximum Data Transfer Rate: 10 Gbps

Type: Copper

Connection Type: RJ45 Connector

Maximum Transfer Distance: 30 m (98.4 ft)

MTBF: 4,598,430 hours

Digital Diagnostics Monitoring (DDM): No

This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

- 100% compatible with Cisco switches and routers
- StarTech.com SFP modules are backed by a lifetime warranty
- Uses a cost-effective cabling alternative to fiber-optic set ups
Auto MDI/MDI-XY
Cable typeCopper
CertificationCE, FCC
Data transfer rate (max)10000 Mbit/s
Depth69.8 mm
Duplex systemFull,Half
Ethernet LAN (RJ-45) ports1
Height13.8 mm
Hot-swapY
Housing materialZinc steel
Interface typeSFP+
Maximum transfer distance30 m
Mean time between failures (MTBF)4598430 h
Networking standardsIEEE 802.3an
Number of products included1 pc(s)
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 70 °C
Package depth120 mm
Package height33 mm
Package width75 mm
Power consumption (typical)2.3 W
RoHS complianceY
Storage temperature (T-T)-40 - 90 °C
Weight24.2 g
Width13.4 mm
Digital Diagnostics Monitoring (DDM)N
Product colourSilver

SFP10GBTCST.pdf

StarTech.com Cisco Compatible SFP+ Transceiver Module - 10GBASE-T Data Sheet

Download (144.61k)

StarTech.com Cisco Compatible SFP+ Transceiver Module - 10GBASE-T

StarTech.com Cisco Compatible SFP+ Module - 10GBASE-T Fiber Optical Transceiver - SFP10GBTCST

SFP10GBTCST

In Stock

£226.79
£188.99 Ex VAT.
