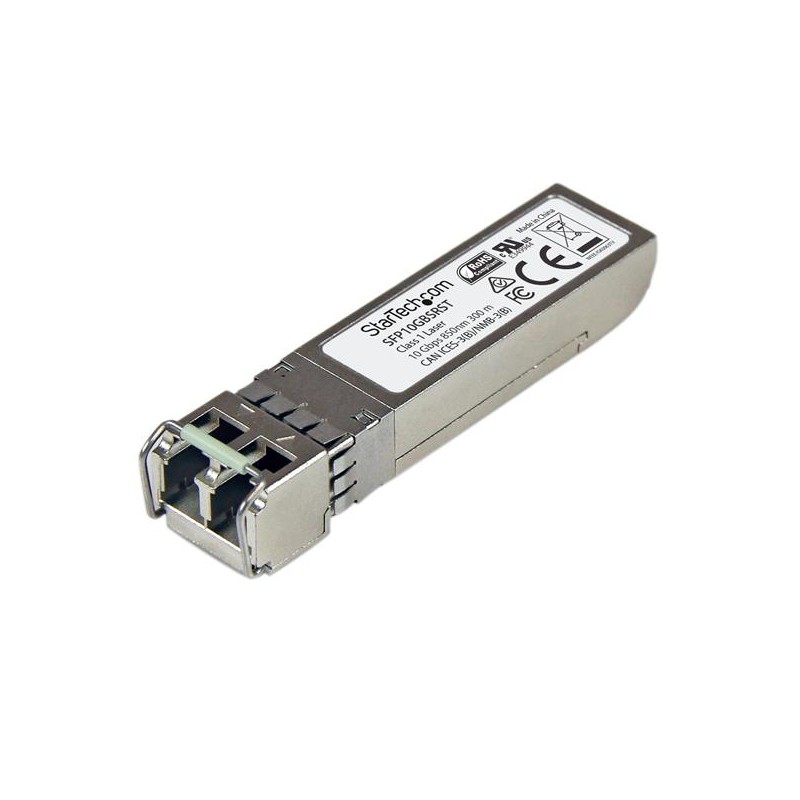

This 10GBase-SR SFP+ module delivers what you need most in your network connections: reliable performance. It’s built to exacting MSA specifications and fully tested to ensure seamless compatibility. The multimode SFP+ transceiver module offers a cost-effective way to add, replace or upgrade the ports on your networking equipment, and it’s backed by a lifetime warranty.
Delivers 10 Gigabit Ethernet connections
With data transfer rates of up to 10Gbps and support for Digital Diagnostics Monitoring (DDM / DOM), this LC SFP+ module can be installed into fiber networking equipment with an MSA compliant port. It delivers dependable 10 Gigabit connectivity over multimode fiber for 10GBase-SR compliant networks, with a maximum distance of up to 300 m (984.2 ft.) and 850 nm optical wavelength.
Built for reliable network performance
This optical transceiver is engineered to meet or exceed the industry’s MSA (Multi-Source Agreement) standards. StarTech.com brings its established reputation for high-quality connectivity solutions to SFP transceivers, providing SFPs that match major OEM brands in performance and reliability. Committed to the highest standards, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.
Convenient and scalable
Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile solution that’s compatible with a wide range of networking equipment, allowing you to expand your network to remote segments cost-effectively.
You can count on SFP10GBSRST for reliable performance, backed by a lifetime warranty and free lifetime technical support.
Cable type |
fiber optic |
Certification |
CE, FCC, UR |
Colour of product |
Silver |
Data transfer rate (max) |
10000 Mbit/s |
Depth |
58.4 mm |
Duplex system |
Full |
Fiber optic connector |
LC |
Full duplex |
Y |
Height |
12.6 mm |
Hot-Plug support |
Y |
Housing material |
Aluminium |
Interface type |
SFP+ |
Maximum transfer distance |
300 m |
Networking standards |
IEEE 802.3ae |
Number of products included |
1 pc(s) |
Operating relative humidity (H-H) |
5 - 95 % |
Operating temperature (T-T) |
0 - 70 °C |
Package depth |
120 mm |
Package height |
30 mm |
Package weight |
95 g |
Package width |
90 mm |
RoHS compliance |
Y |
SFP transceiver type |
SR |
Storage temperature (T-T) |
-40 - 85 °C |
Wavelength |
850 nm |
Weight |
30 g |
Width |
13.9 mm |
Wavelength-division multiplexing (WDM) |
N |
Digital Diagnostics Monitoring (DDM) |
Y |
Multi-mode fiber (MMF) supported |
Y |
Specific References
- EAN13
- 0065030873338
Download
StarTech.com MSA Compliant 10 Gigabit Fiber SFP+ Transceiver Module - 10GBase-SR - MM LC - 300 m Data Sheet
Download (144.9KB)
