Add, replace or upgrade SFP modules on Gigabit fiber equipment

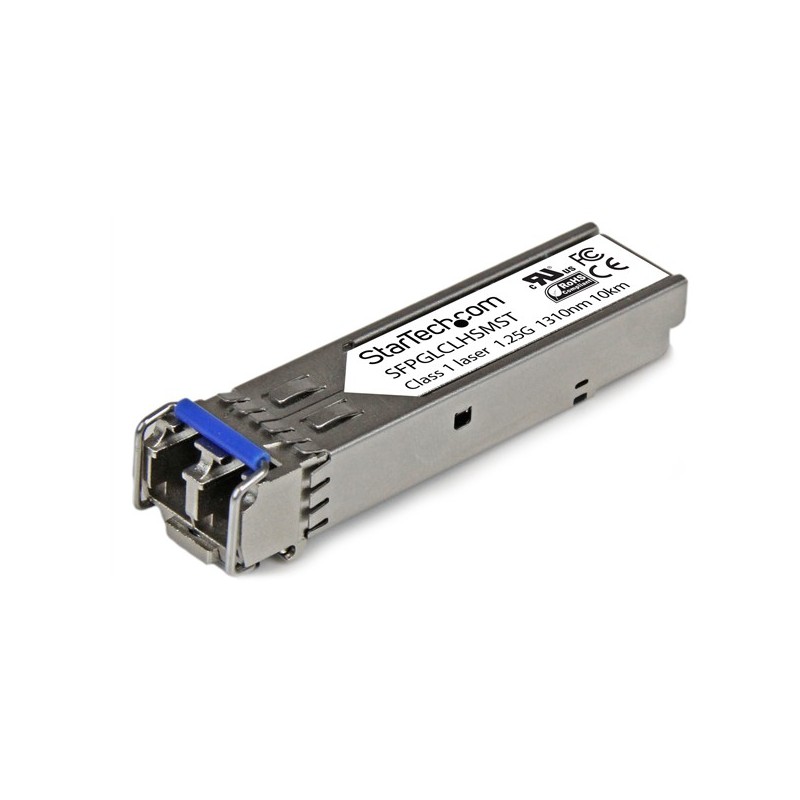

The SFPGLCLHSMST Cisco Compatible Gigabit Fiber SFP Transceiver Module SM/MM LC is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade an SFP slot on your Gigabit fiber networking equipment or fiber media converter.
Supporting a 1000Base-LX/LH network with data rates up to 1.25 Gbps, this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. The SFP transceiver supports both single-mode and multi-mode LC ports, with a single-mode distance of 10 km (6.2 mi.) and multi-mode distance of 550 m (1804 ft.). Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 1310nm single-mode/multi-mode SFP module is compatible with the Cisco GLC-LH-SM transceiver. Also a perfect accessory for the StarTech.com PCI Express Open SFP NIC (PEX1000SFP2), or Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Replace defective or damaged MSA or Cisco SFPs
- Extend your network connectivity up to 10km
The SFPGLCLHSMST Cisco Compatible Gigabit Fiber SFP Transceiver Module SM/MM LC is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade an SFP slot on your Gigabit fiber networking equipment or fiber media converter.
Supporting a 1000Base-LX/LH network with data rates up to 1.25 Gbps, this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. The SFP transceiver supports both single-mode and multi-mode LC ports, with a single-mode distance of 10 km (6.2 mi.) and multi-mode distance of 550 m (1804 ft.). Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 1310nm single-mode/multi-mode SFP module is compatible with the Cisco GLC-LH-SM transceiver. Also a perfect accessory for the StarTech.com PCI Express Open SFP NIC (PEX1000SFP2), or Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Replace defective or damaged MSA or Cisco SFPs
- Extend your network connectivity up to 10km
| Cable type | Single-mode |
| Data transfer rate (max) | 1250 Mbit/s |
| Depth | 60 mm |
| Duplex system | Full, Half |
| Fiber optic connector | XFP |
| Height | 10 mm |
| Interface type | XFP |
| Maximum transfer distance | 900 m |
| Networking standards | Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A |
| Operating relative humidity range | 30 - 70 % |
| Operating temperature range (T-T) | 0 - 70 °C |
| SFP transceiver type | LH |
| Source data-sheet | Icecat.biz |
| Storage temperature range (T-T) | -40 - 85 °C |
| Wavelength | [1250 nm – 1600 nm] |
| Weight | VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb) |
| Width | 12 mm |
Specific References
- EAN13
- 0065030850643
StarTech.com Cisco Compatible Gigabit Fiber SFP Transceiver Module SM/MM LC - 10 km (Mini-GBIC)
StarTech.com Cisco Compatible Gigabit Fiber SFP Transceiver Module SM/MM LC - 10km (Mini-GBIC) - 1300nm 1000Base-LX/LH SFP LC
