Add, replace or upgrade SFP modules on Gigabit fiber equipment

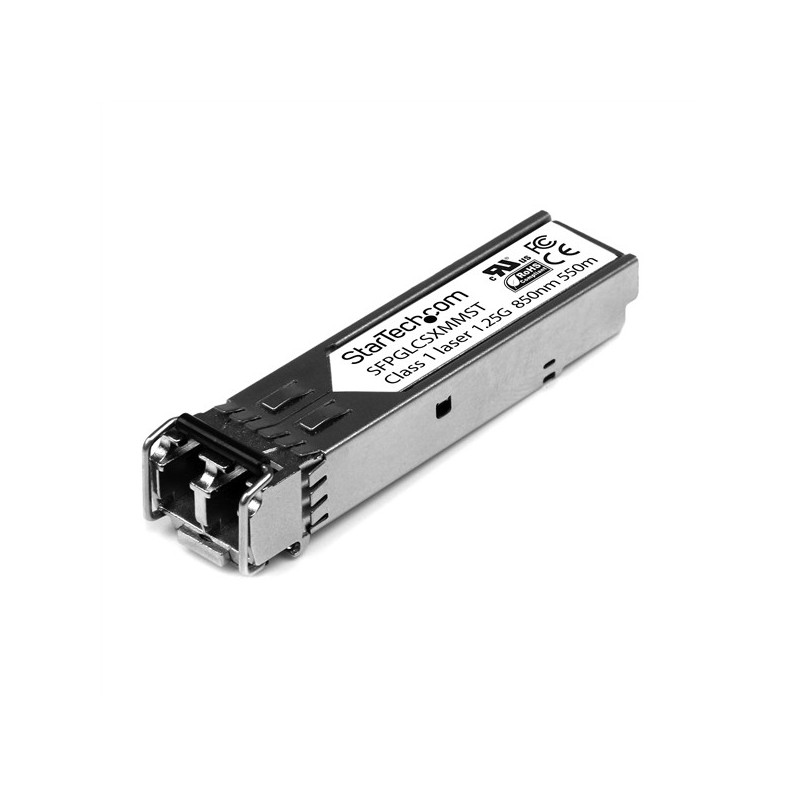

The SFPGLCSXMMST Cisco Compatible Gigabit Fiber SFP Transceiver Module MM LC - 550m (1804 ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your Gigabit fiber networking equipment or fiber media converter.
Supporting data rates up to 1.25 Gbps, this LC Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 850nm multi-mode SFP module is compatible with the Cisco GLC-SX-MM transceiver. Also a perfect accessory for the StarTech.com PCI Express Open SFP NIC (PEX1000SFP2), or Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Replacing defective or damaged SFPs/Mini GBICs in MSA or Cisco compliant equipment
- Equipped with an industry standard single-mode LC interface, this module can extend your network connectivity up to 550 m
Cable type |
Multi-mode |
Cabling technology |
1000BASE-SX |
Data transfer rate (max) |
1250 Mbit/s |
Depth |
60 mm |
Duplex system |
Full, Half |
Fiber optic connector |
LC |
Height |
10 mm |
Maximum transfer distance |
550 m |
Networking standards |
IEEE 802.3z |
Operating relative humidity range |
30 - 70 % |
Operating temperature range (T-T) |
0 - 70 °C |
SFP transceiver type |
SX |
Source data-sheet |
Icecat.biz |
Storage temperature range (T-T) |
-40 - 85 °C |
Wavelength |
850 nm |
Weight |
16 g |
Width |
12 mm |
Specific References
- EAN13
- 0065030849692
